L3DDH Series

Manufacturer: CNC Tech

Catalog

IDC CBL - LKR40H/CN222GR/LKR40H

Part	Connector Type	Number of Positions	Shielding	Number of Rows [custom]	Length	Length	Pitch - Cable	Pitch - Cable	Cable Termination	Pitch - Connector	Pitch - Connector	Features	Contact Finish Thickness	Contact Finish	Length	Color	Length [x]	Length [x]
CNC Tech L3DDH-4036N	Socket to Socket	40	Unshielded	2	91.44 cm	3 ft	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold
CNC Tech L3DDH-1006C	Socket to Socket	10	Unshielded	2	152.4 mm	0.5 '	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold	6 "	Multiple Ribbon
CNC Tech L3DDH-1636N	Socket to Socket	16	Unshielded	2	91.44 cm	3 ft	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold

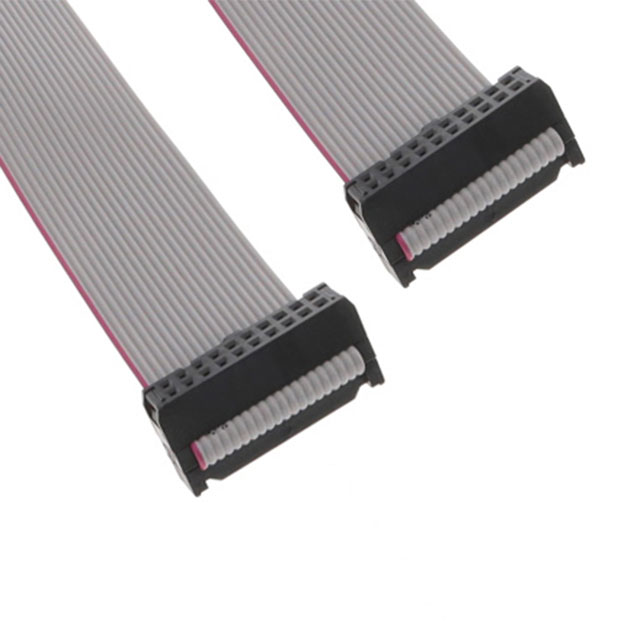

CNC Tech L3DDH-2018N	Socket to Socket	20	Unshielded	2			0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold			457.2 mm	1.5 ft
CNC Tech L3DDH-2006N	Socket to Socket	20	Unshielded	2	152.4 mm	0.5 '	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold	6 "

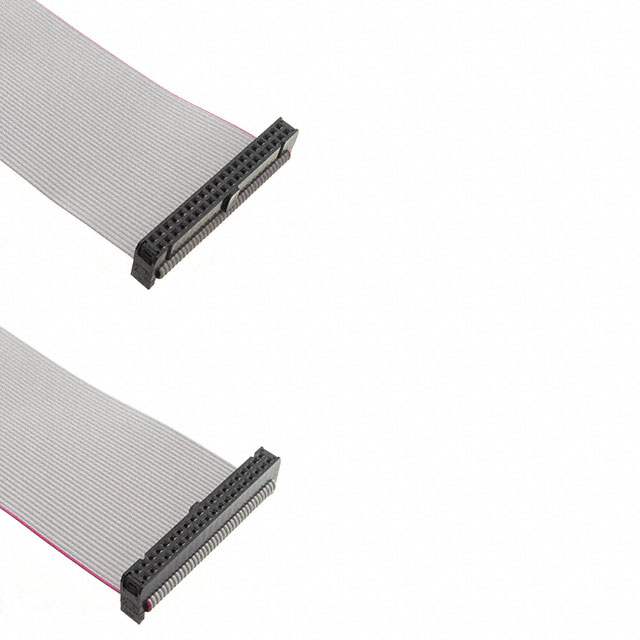

CNC Tech L3DDH-4006N	Socket to Socket	40	Unshielded	2	152.4 mm	0.5 '	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold	6 "
CNC Tech L3DDH-4018N	Socket to Socket	40	Unshielded	2			0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold			457.2 mm	1.5 ft
CNC Tech L3DDH-1618N	Socket to Socket	16	Unshielded	2			0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold			457.2 mm	1.5 ft
CNC Tech L3DDH-2618N	Socket to Socket	26	Unshielded	2			0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold			457.2 mm	1.5 ft
CNC Tech L3DDH-1036N	Socket to Socket	10	Unshielded	2	91.44 cm	3 ft	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Flash	Gold
