696273 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

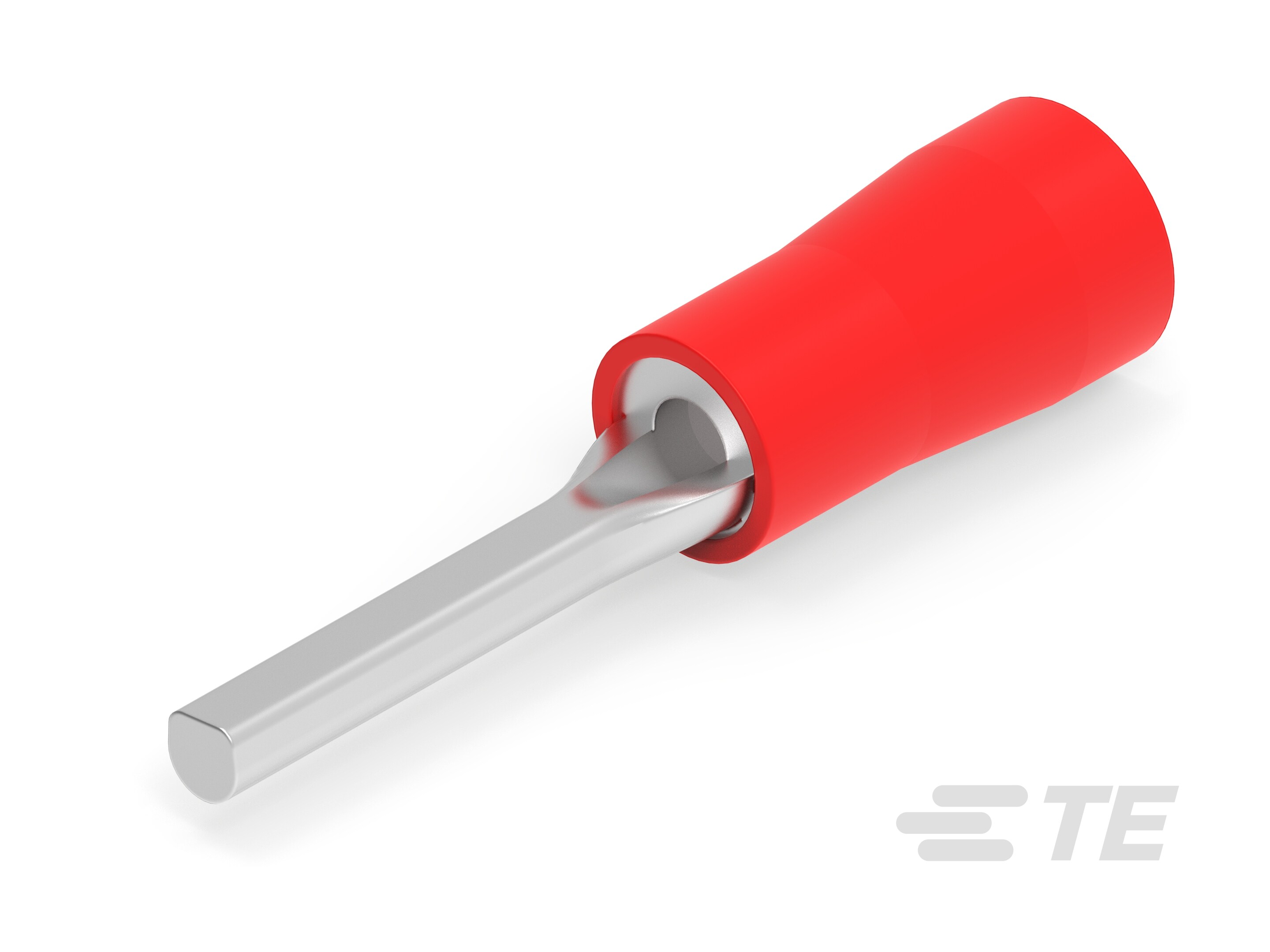

CONN WIRE PIN TERM 16-22AWG PIDG
| Part | Contact Material | Material - Insulation | Contact Finish | Termination | Insulation | Color | Wire Gauge [Min] | Wire Gauge [Max] | Pin Diameter [diameter] | Pin Diameter [diameter] | Length - Overall | Length - Overall | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Length - Pin | Length - Pin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper | Nylon Polyamide (PA) | Tin | Crimp | Insulated | Red | 16 AWG | 22 AWG | 0.07 in | 1.78 mm | 0.91 in | 23.11 mm | 2.67 mm | 0.14 in | 3.56 mm | 0.105 in | 0.39 in | 9.91 mm |
