796682 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLK 11P SIDE ENTRY 5MM PCB

Part	Clamp Material - Plating	Contact Material - Plating	Torque - Screw	Torque - Screw	Screw Thread	Screw Material - Plating	Features	Wire Gauge [Max]	Wire Gauge [Min]	Color	Mating Orientation	Current	Number of Levels	Voltage	Wire Termination	Pitch	Pitch	Positions Per Level	Mounting Type	Positions Per Level [custom]

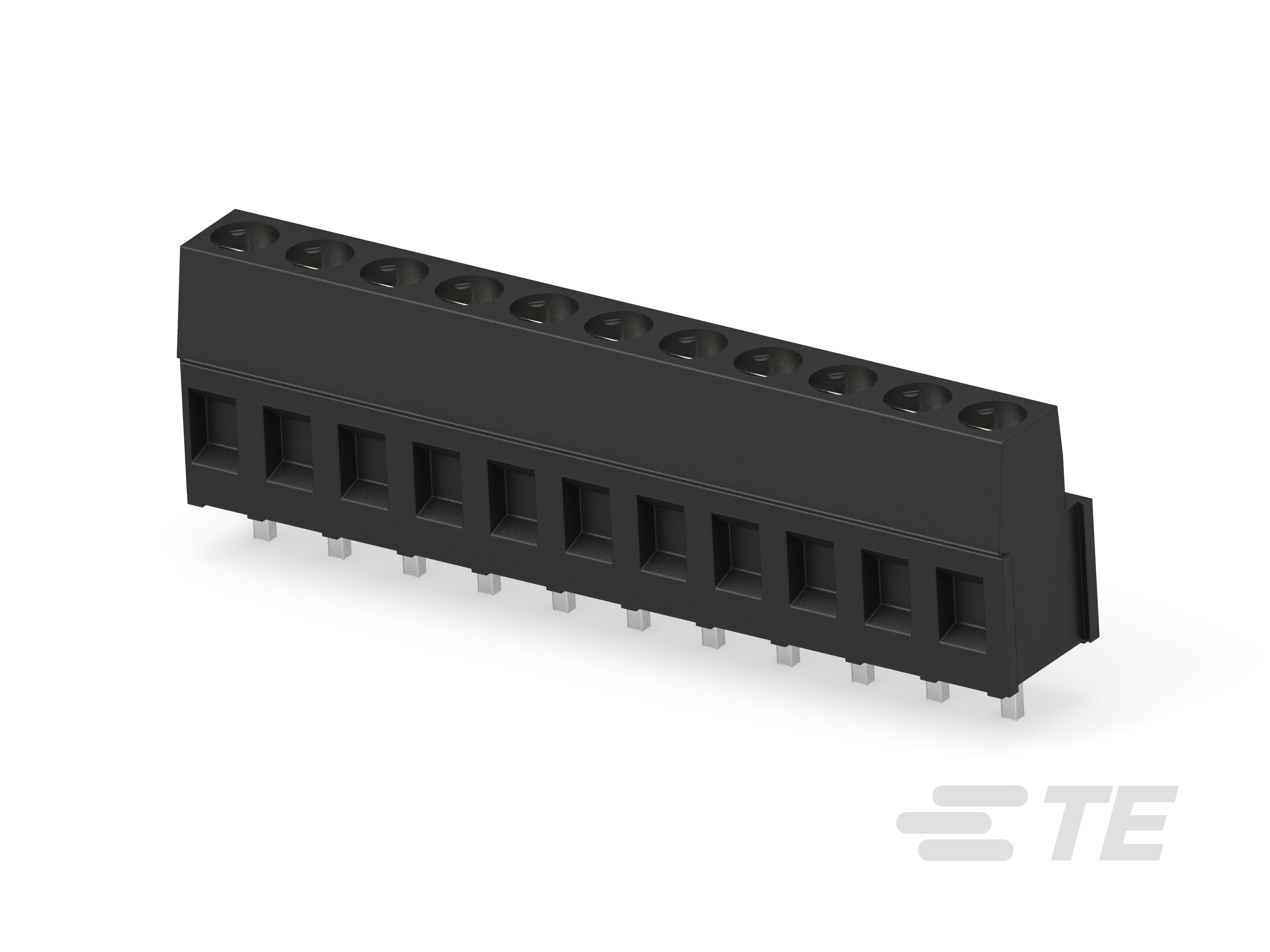

TE Connectivity AMP Connectors 1-796682-1	Brass - Nickel Plated	Brass - Tin Plated	7 Lb-In	0.79 Nm	M3	Brass - Nickel Plated	Interlocking (Side)	30 AWG	12 AWG	Black	Horizontal with Board	17.5 A	1	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm	11	Through Hole

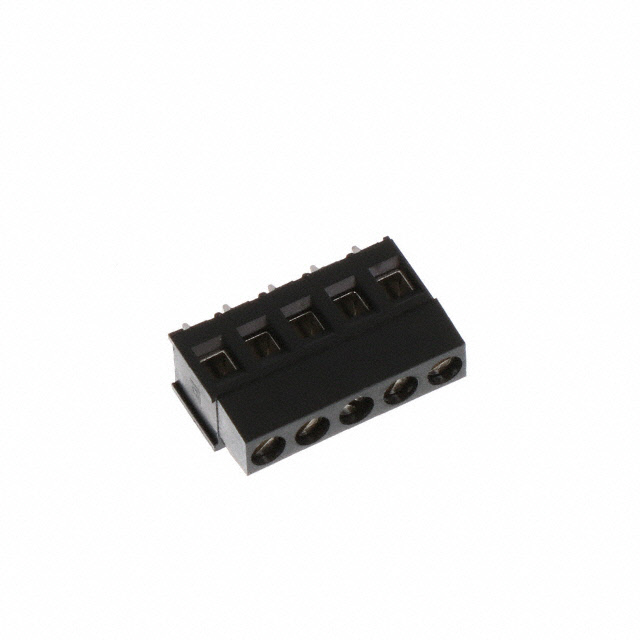

TE Connectivity AMP Connectors 796682-5	Brass - Nickel Plated	Brass - Tin Plated	7 Lb-In	0.79 Nm	M3	Brass - Nickel Plated	Interlocking (Side)	30 AWG	12 AWG	Black	Horizontal with Board	17.5 A	1	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm	5	Through Hole
TE Connectivity AMP Connectors 2-796682-4	Brass - Nickel Plated	Brass - Tin Plated	7 Lb-In	0.79 Nm	M3	Brass - Nickel Plated	Interlocking (Side)	30 AWG	12 AWG	Black	Horizontal with Board	17.5 A	1	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm		Through Hole	24
TE Connectivity AMP Connectors 2-796682-3	Brass - Nickel Plated	Brass - Tin Plated	7 Lb-In	0.79 Nm	M3	Brass - Nickel Plated	Interlocking (Side)	30 AWG	12 AWG	Black	Horizontal with Board	17.5 A	1	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm	23	Through Hole

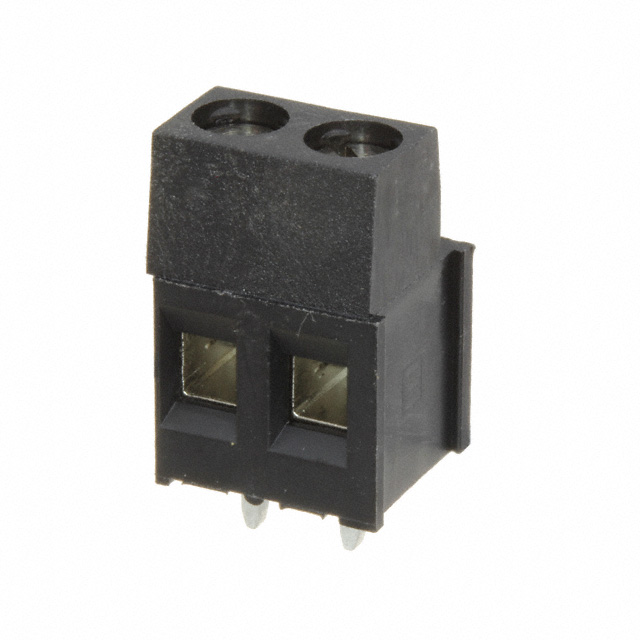

TE Connectivity AMP Connectors 796682-2	Brass - Nickel Plated	Brass - Tin Plated	7 Lb-In	0.79 Nm	M3	Brass - Nickel Plated	Interlocking (Side)	30 AWG	12 AWG	Black	Horizontal with Board	17.5 A	1	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm	2	Through Hole
TE Connectivity AMP Connectors 2-796682-1	Brass - Nickel Plated	Brass - Tin Plated	7 Lb-In	0.79 Nm	M3	Brass - Nickel Plated	Interlocking (Side)	30 AWG	12 AWG	Black	Horizontal with Board	17.5 A	1	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm	21	Through Hole

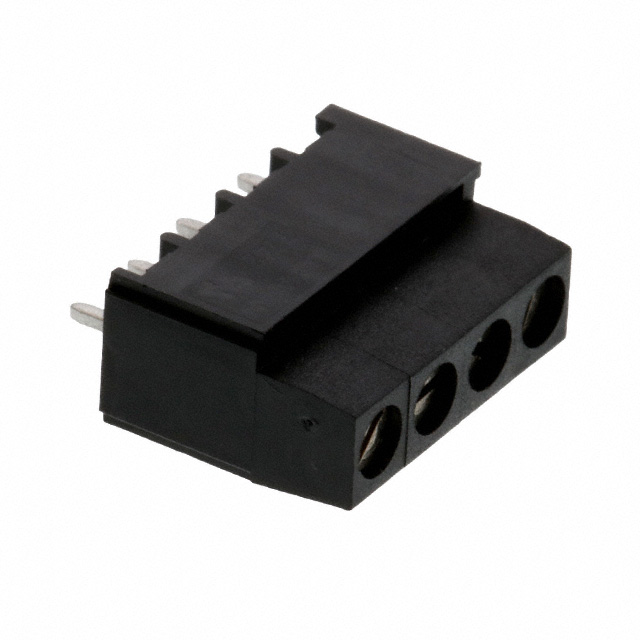

TE Connectivity AMP Connectors 796682-4	Brass - Nickel Plated	Brass - Tin Plated	7 Lb-In	0.79 Nm	M3	Brass - Nickel Plated	Interlocking (Side)	30 AWG	12 AWG	Black	Horizontal with Board	17.5 A	1	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm	4	Through Hole

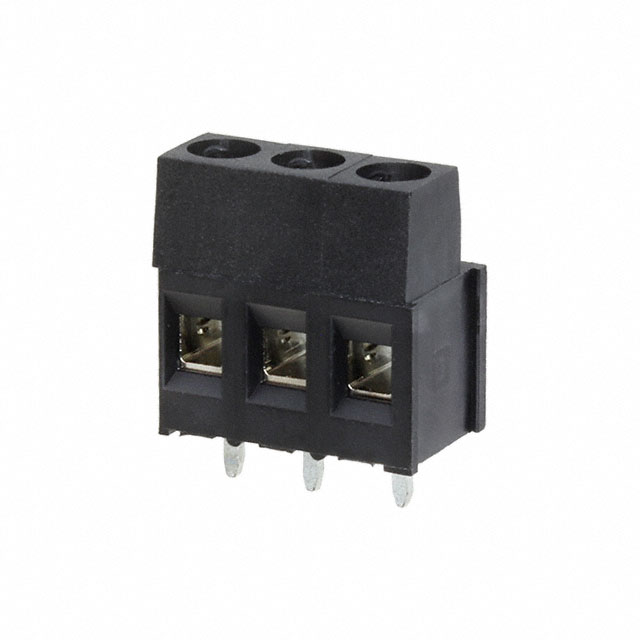

TE Connectivity AMP Connectors 796682-3	Brass - Nickel Plated	Brass - Tin Plated	7 Lb-In	0.79 Nm	M3	Brass - Nickel Plated	Interlocking (Side)	30 AWG	12 AWG	Black	Horizontal with Board	17.5 A	1	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm	3	Through Hole
TE Connectivity AMP Connectors 796682-2
TE Connectivity AMP Connectors 2-796682-0	Brass - Nickel Plated	Brass - Tin Plated	7 Lb-In	0.79 Nm	M3	Brass - Nickel Plated	Interlocking (Side)	30 AWG	12 AWG	Black	Horizontal with Board	17.5 A	1	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm	20	Through Hole
