CTAPE Series

Manufacturer: TapeCase

Catalog

TAPE ELECTRICAL CLEAR

Part	Backing, Carrier	Color	Usage	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Temperature Range [Min]	Temperature Range [Max]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Length	Length	Length	Width [x]	Width [x]

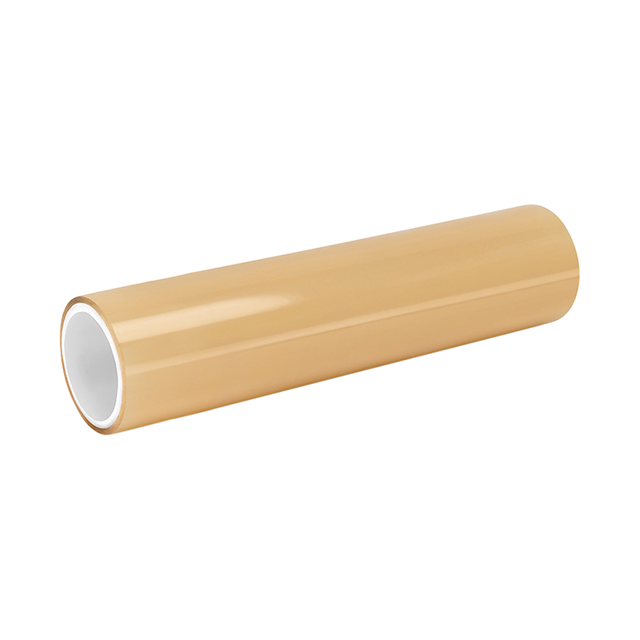

TapeCase 9-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in

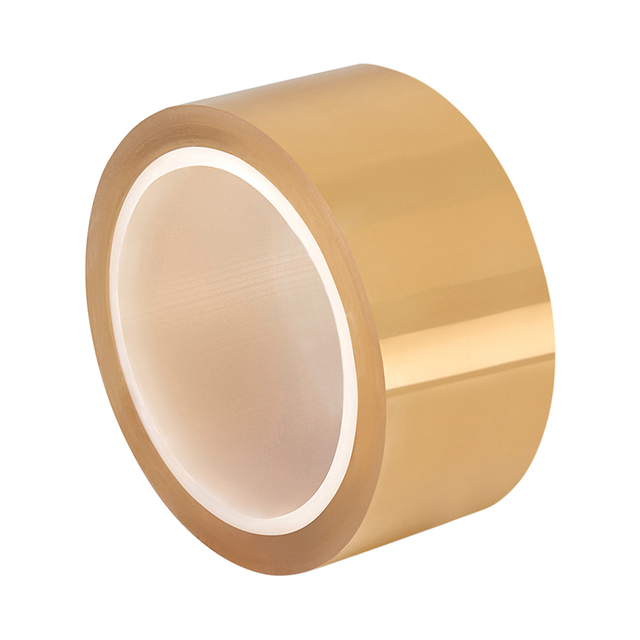

TapeCase 3-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in

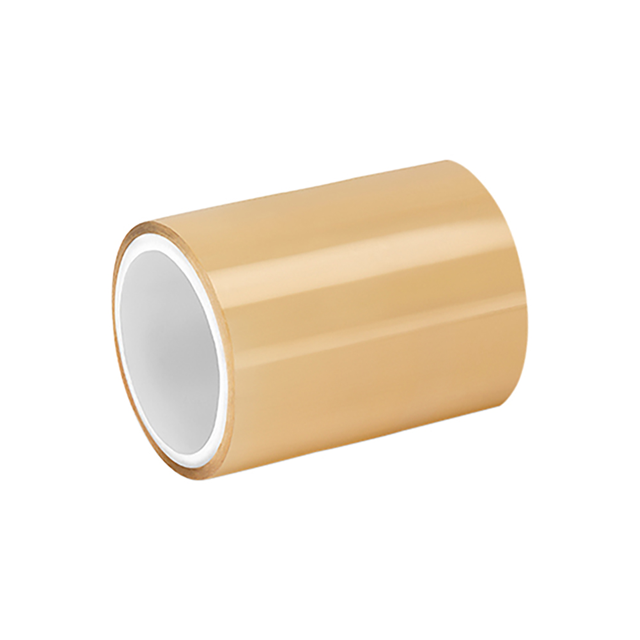

TapeCase 5-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in
TapeCase 2-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in
TapeCase 3-5-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in

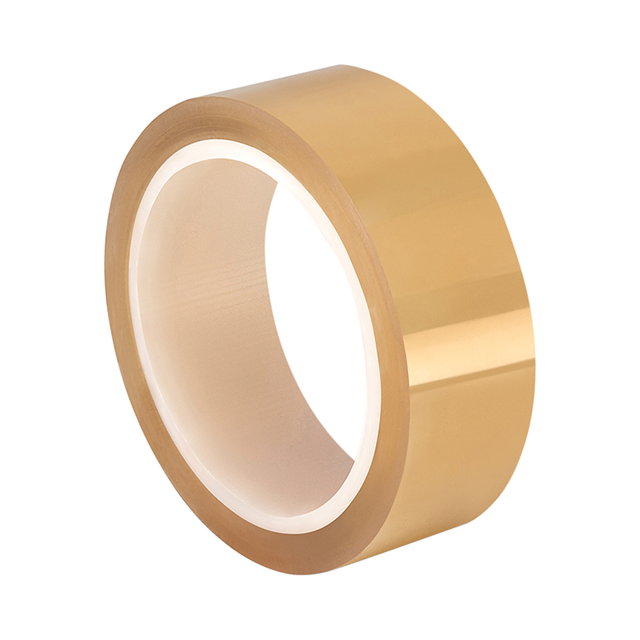

TapeCase 1-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical Film	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in	32.9 m	108 ft	36 yd	25.4 mm	1 in

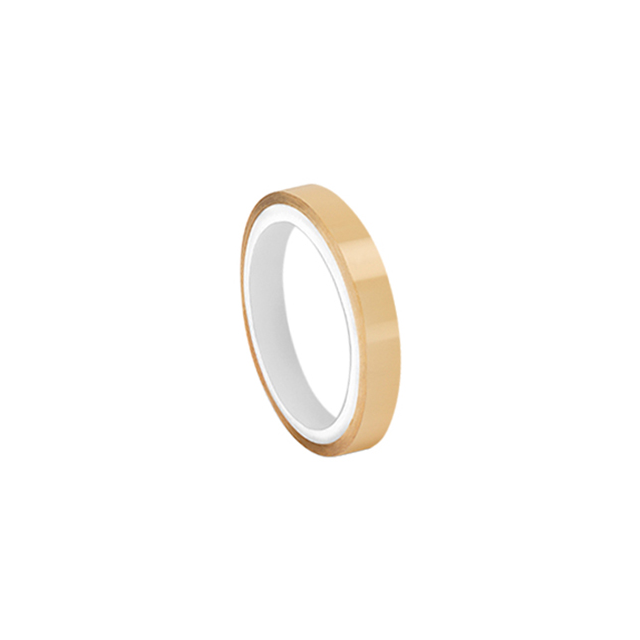

TapeCase 0.25-5-CTAPE (PK5)	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in
TapeCase 1.75-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in

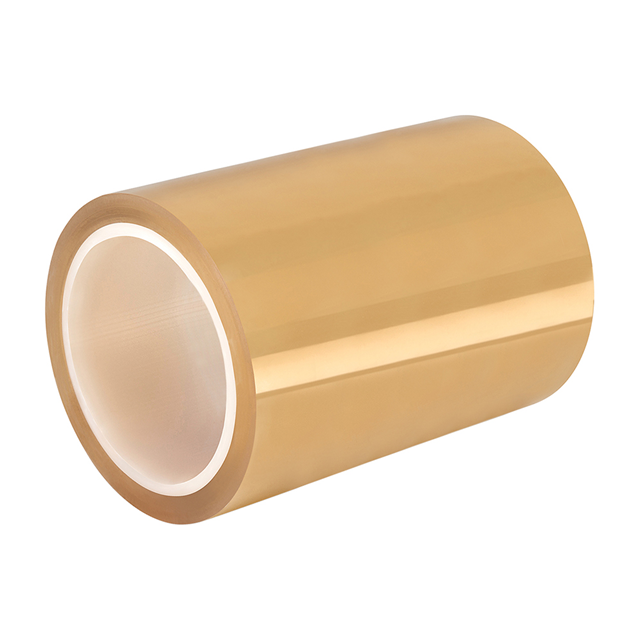

TapeCase 10-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in
TapeCase 9-36-CTAPE	FEP (Fluorinated Ethylene Propylene)	Clear	Electrically Insulating High Temperature	Silicone	2 mils	0.002 "	0.051 mm	Electrical	-100 °F -73 °C	204 °C 400 °F	1.5 mils	0.038 mm	0.0015 in	0.089 mm	88.9 microns	0.0035 in
