920-0012 Series

Catalog

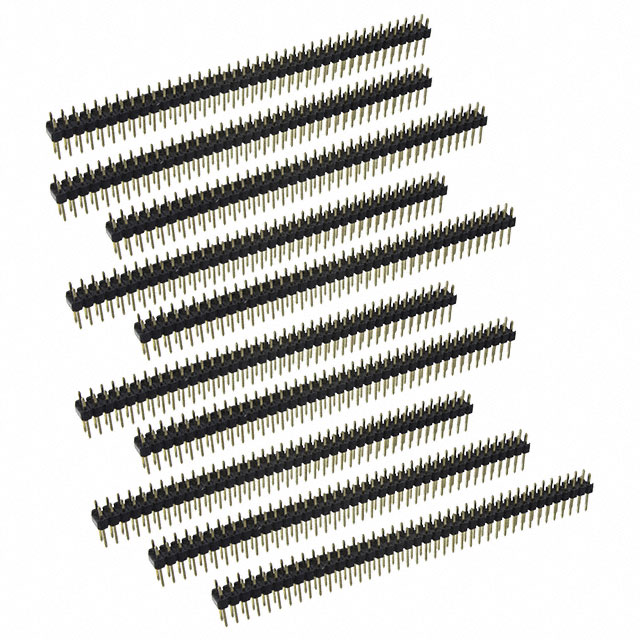

CONN HEADER VERT 80P 2.54MM 10PC

Part	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Insulation Material	Number of Positions	Fastening Type	Connector Type	Insulation Height	Insulation Height	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]	Shrouding	Contact Shape	Contact Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Insulation Color	Current Rating (Amps)	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Schmartboard, Inc. 920-0012-01	0.1 "	2.54 mm	All	Gold	Polybutylene Terephthalate (PBT)	80	Push-Pull	Header Breakaway	0.098 "	2.5 mm	UL94 V-0	Through Hole	Gold	Brass	0.118 in	3 mm	11.61 mm	0.457 in	Unshrouded	Square	Male Pin	0.24 in	6.1 mm	Solder	Black	3 A	2	125 °C	-40 C	0.1 in	2.54 mm
