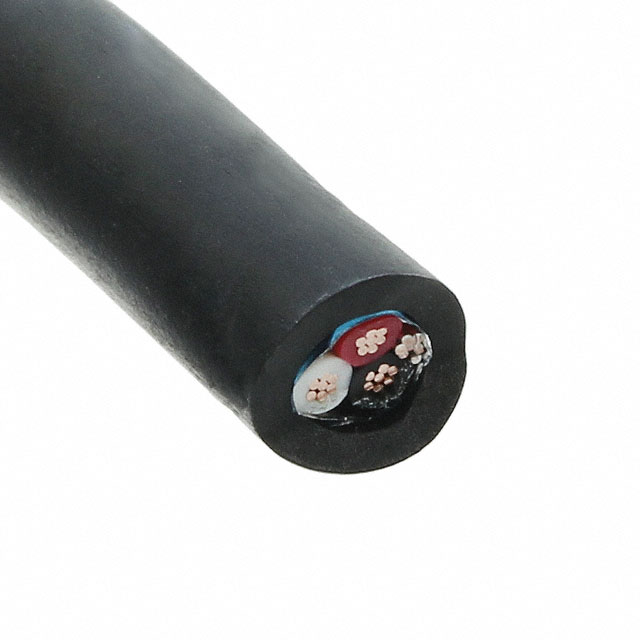

5640B2201 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 3COND 22AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Conductor Material | Voltage | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Features | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Wire Gauge | Number of Conductors | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Copper Bare | 300 VDC | Multi-Conductor | -20 ░C | 105 ░C | 28 AWG | 7 | Foil | Drain Wire | 304.8 m | 1000 ft | 5.11 mm | 0.201 in | Poly-Vinyl Chloride (PVC) | 0.038 in | 0.965 mm | 22 AWG | 3 | Poly-Vinyl Chloride (PVC) |
