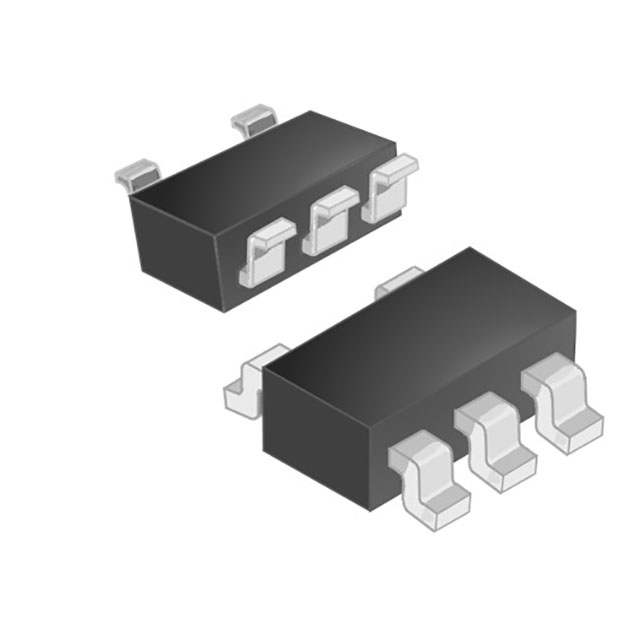

GLF1201 Series
Manufacturer: GLF Integrated Power
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
TRCB LOADSWITCH WITHOUT OUTPUT D
| Part | Current - Output (Max) | Rds On (Typ) | Output Configuration | Features | Output Type | Interface | Switch Type | Number of Outputs | Voltage - Load (Max) | Voltage - Load (Min) | Output Ratio | Input Ratio | Package Name | Voltage - Supply (Vdd/Vcc) | Voltage - Supply (Vcc/Vdd) | Mounting Type | Input Type | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GLF Integrated Power | 2 A 4 A | 54 mOhm | High Side | Load Discharge Slew Rate Controlled | N-Channel | On/Off | General Purpose | 1 | 3.6 V | 0.8 V | 1 | 1 | SOT-23-5 | Not Required | Not Required | Surface Mount | Non-Inverting | -40 °C | 85 °C |
