ADP-2.4 Series

Catalog

2.4 MM JACK (FEMALE SOCKET) TO 2

Part	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Material	Mating Cycles	Mounting Type	Frequency - Max [Max]	Conversion Type	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Style	Adapter Type	Adapter Series [Min]	Adapter Series [Max]	Center Contact Plating	Impedance	Convert To (Adapter End)	Center Gender	Convert From (Adapter End)	Convert To (Adapter End) [custom]

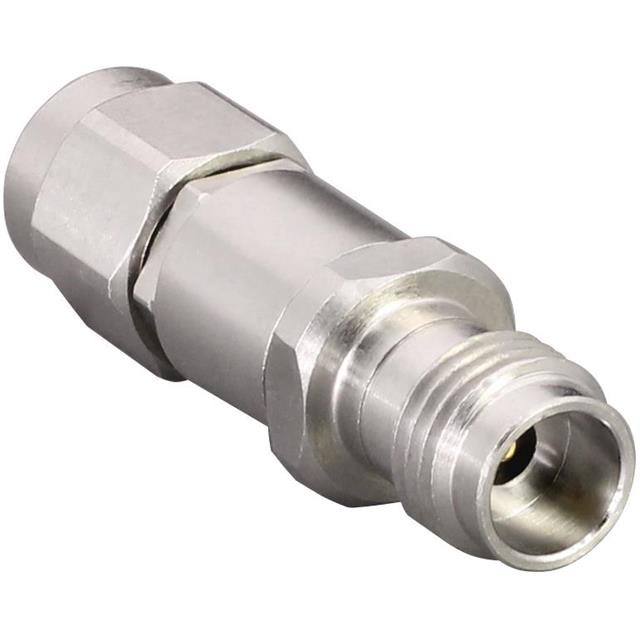

TE Connectivity AMP Connectors ADP-2.4F-2.92M	-40 C	105 ░C	Beryllium Copper	Stainless Steel	500	Free Hanging (In-Line)	40 GHz	Same Series	2.92mm (OS-2.9) Plug Male Pin	APC-2.4 Female Socket Jack OS-50	2.4 mm	Straight	Plug to Jack	2.4 mm	2.92 mm	Gold	50 Ohms

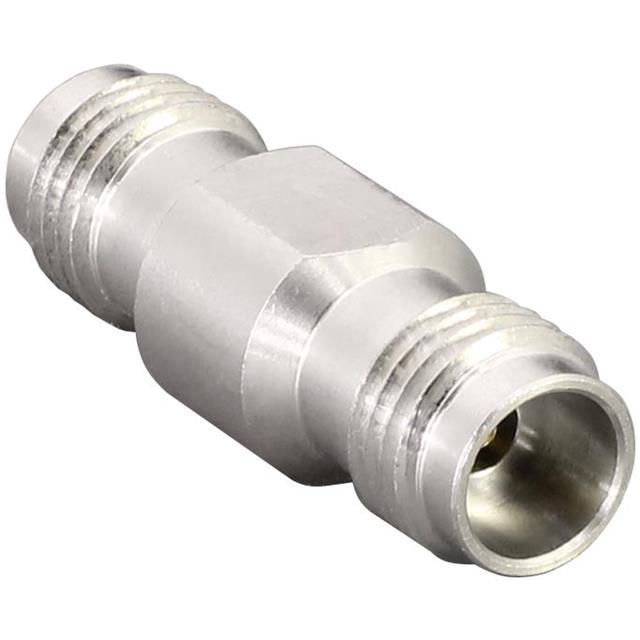

TE Connectivity AMP Connectors ADP-2.4F-2.4F	-40 C	105 ░C	Beryllium Copper	Stainless Steel	500	Free Hanging (In-Line)	50 GHz	Same Series	(APC-2.4 OS-50) Jack Female Socket	APC-2.4 Female Socket Jack OS-50	2.4 mm	Straight	Jack to Jack	2.4 mm	2.4 mm	Gold	50 Ohms	2.4 mm	Female to Female

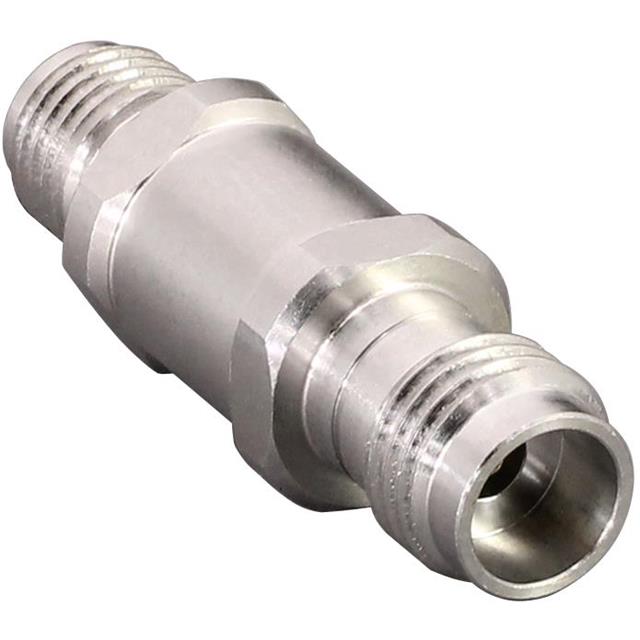

TE Connectivity AMP Connectors ADP-2.4F-2.92F	-40 C	105 ░C	Beryllium Copper	Stainless Steel	500	Free Hanging (In-Line)	40 GHz	Same Series	Jack Female Socket	APC-2.4 Female Socket Jack OS-50	2.4 mm	Straight	Jack to Jack	2.4 mm	2.92 mm	Gold	50 Ohms	2.92 mm	Female to Female

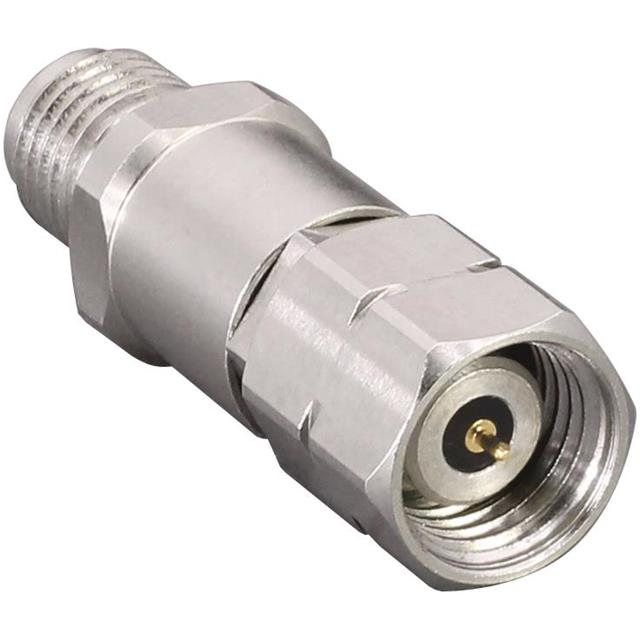

TE Connectivity AMP Connectors ADP-2.4M-2.92F	-40 C	105 ░C	Beryllium Copper	Stainless Steel	500	Free Hanging (In-Line)	40 GHz	Between Series		Jack Female Socket	2.92 mm	Straight	Plug to Jack	2.4 mm	2.92 mm	Gold	50 Ohms			OS-2.9	2.4 mm
