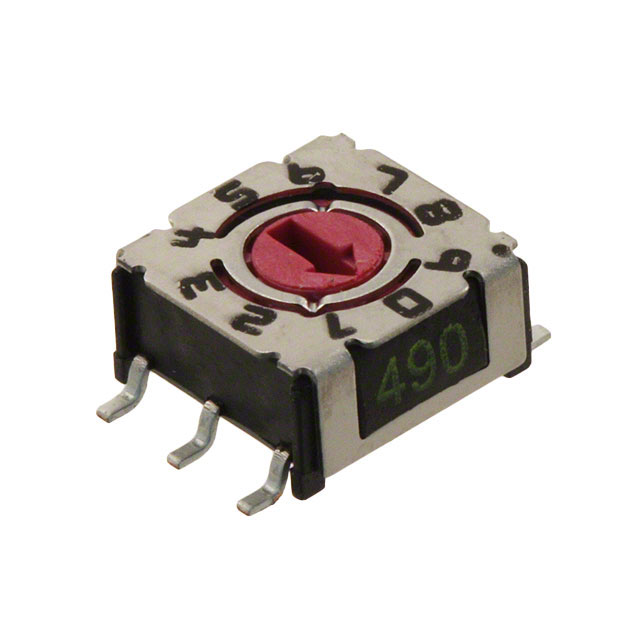

P36S101 Series
Manufacturer: APEM Inc.
Beta
⌘K
SWITCH ROTARY DIP BCD 0.1A 24V
| Part | Body Material | Length | Length | Mechanical Life | Height Above Board [z] | Height Above Board [z] | Actuator Level | Actuator Type | Features | Contact Material | Contact Finish | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Termination Style | Washable | Voltage Rating | Mounting Type | Current Rating (Amps) | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Thermoplastic | 7.4 mm | 0.291 in | 10000 Steps | 3.85 mm | 0.152 in | Flush Recessed | Rotary for Tool | Sealed - Flux Protection | Phosphor Bronze | Gold | 10 | -30 ░C | 90 °C | 2.54 mm | 0.1 " | Gull Wing | 24 VDC | Surface Mount | 100 mA | BCD |
