MB2061S Series

Catalog

SWITCH PUSHBUTTON DPDT 6A 125V

Part	Electrical Life	Mechanical Life	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - AC	Termination Style	Voltage Rating - DC	Actuator Type	Actuator Marking	Circuit	Current Rating (Amps)	Features	Color - Actuator/Cap	Ingress Protection

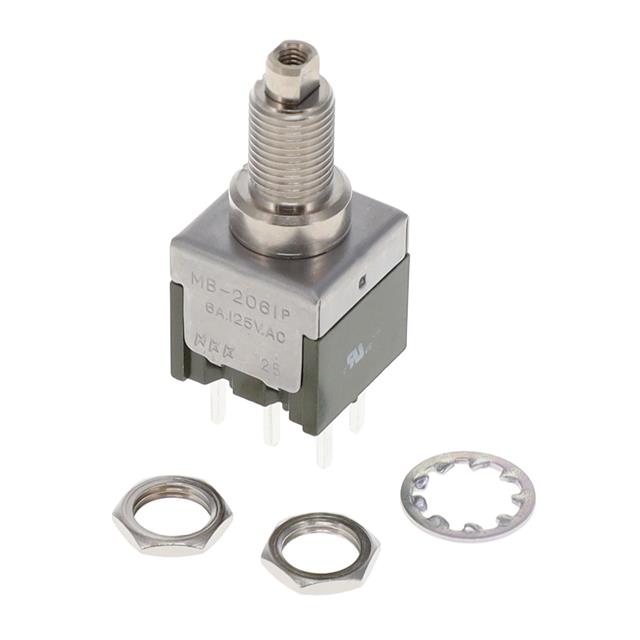

NKK Switches MB2061SS1W03/U	25000 Steps	100000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	6.5 mm	On-Mom	125 V	PC Pin	30 V	Plunger for Cap	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals
NKK Switches MB2061SS1A01-CA	25000 Steps	100000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	6.5 mm	On-Mom	125 V	Solder Lug	30 V	Button Round	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals	Black
NKK Switches MB2061SB1W01-5C-A	25000 Steps	100000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	12.5 mm	On-Mom	125 V	Solder Lug	30 V	Button Rectangular	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals	Red

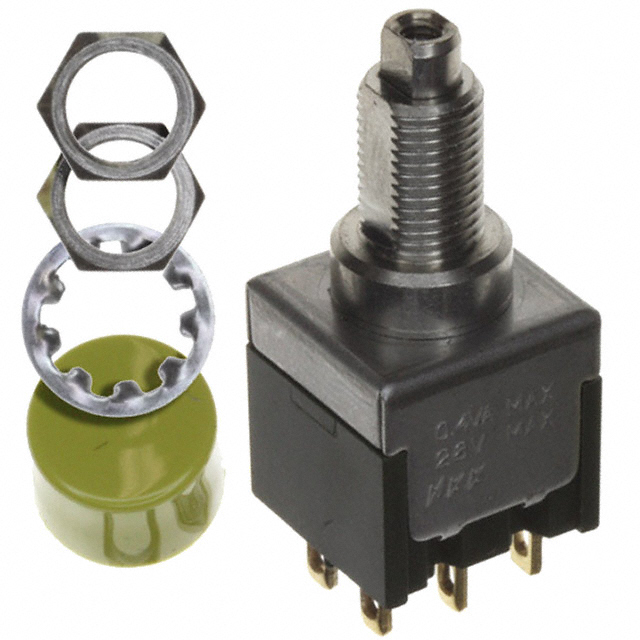

NKK Switches MB2061SD1G01-CE	50000 Cycles	100000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	6.5 mm	On-Mom	28 V	Solder Lug	28 V	Button Round	No Marking	DPDT	0.4 VA	Epoxy Sealed Terminals	Yellow
NKK Switches MB2061SB1W01-4H-A	25000 Steps	100000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	12.5 mm	On-Mom	125 V	Solder Lug	30 V	Button Round	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals

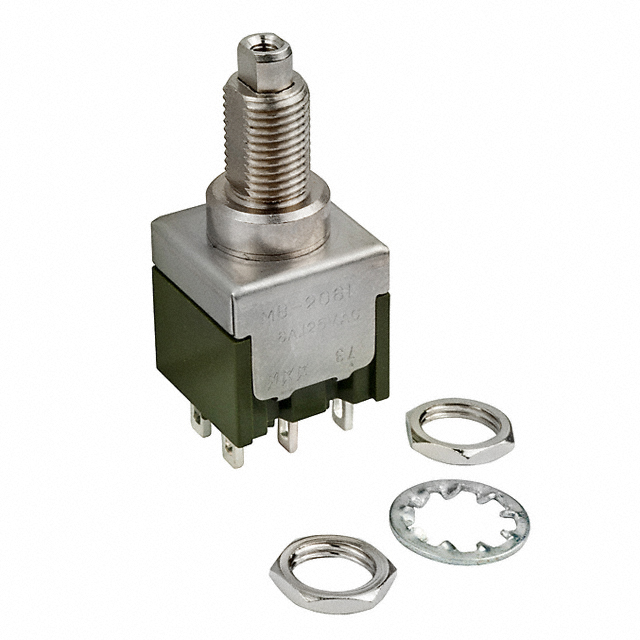

NKK Switches MB2061SD1W01	25000 Steps	100000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	6.5 mm	On-Mom	125 V	Solder Lug	30 V	Plunger for Cap	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals

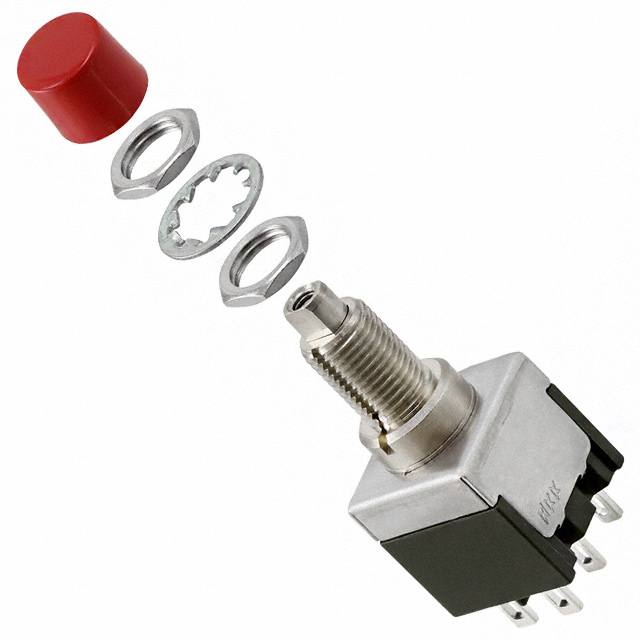

NKK Switches MB2061SS4W01-CC	25000 Steps	100000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	6.5 mm	On-Mom	125 V	Solder Lug	30 V	Button Round	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals	Red
NKK Switches MB2061SB1W03/CUL-DA	25000 Steps	100000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	12.5 mm	On-Mom	125 V	PC Pin	30 V	Button Round	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals	Black

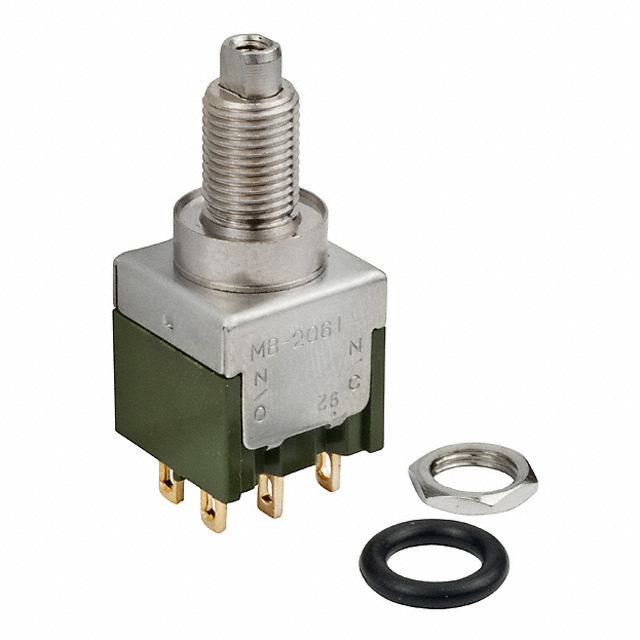

NKK Switches MB2061SD3G01	50000 Cycles	50000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	6.5 mm	On-Mom	28 V	Solder Lug	28 V	Plunger for Cap	No Marking	DPDT	0.4 VA	Epoxy Sealed Terminals		IP67 - Dust Tight Waterproof

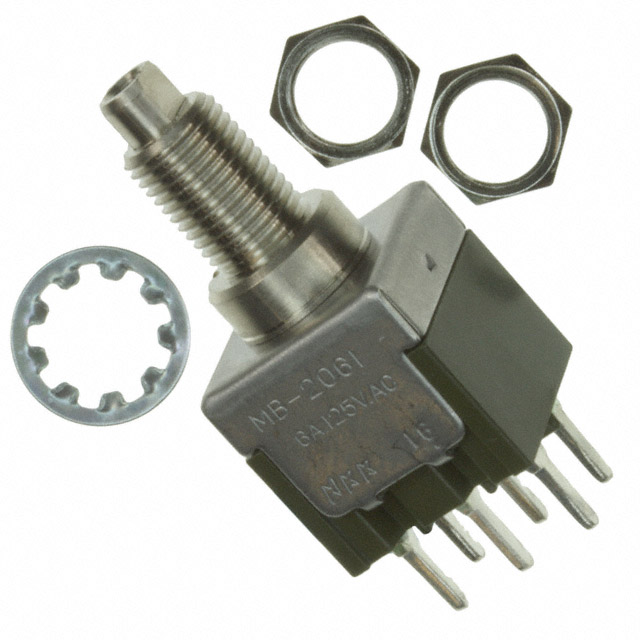

NKK Switches MB2061SS1W03	25000 Steps	100000 Cycles	Panel Mount Rear	85 °C	-30 ░C	Standard	6.5 mm	On-Mom	125 V	PC Pin	30 V	Plunger for Cap	No Marking	DPDT	3 A 6 A	Epoxy Sealed Terminals
