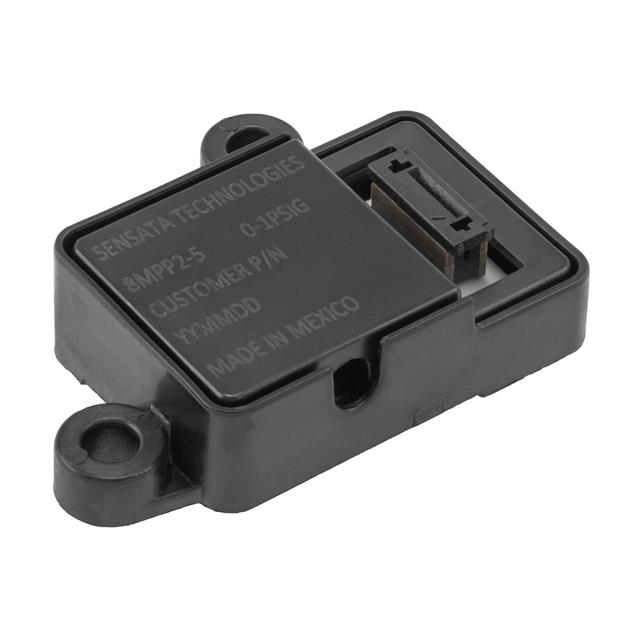

8MPP2 Series

Catalog

SENSOR 5PSIG 0.31" 14BIT

Part	Maximum Pressure	Maximum Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Accuracy	Port Style	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Output [Min]	Output [Max]	Port Size	Port Size	Port Size	Output Type	Package / Case	Pressure Type
Sensata-Crydom 8MPP2-05-0X38-U-1	480 kPa	69.62 PSI	2.7 V	5 V	0.02 % FS	Barbless	5 PSI	34.47 kPa	85 °C	-40 C	Connector	12 b	14 b	Male	7.86 mm	0.31 in	Digital - I2C	Module	Vented Gauge
Sensata-Crydom 8MPP2-01-0X28-U-1	480 kPa	69.62 PSI	2.7 V	5 V	0.02 % FS	Barbless	1 PSI	6.89 kPa	85 °C	-40 C	Connector	12 b	14 b	Male	7.86 mm	0.31 in	Digital - I2C	Module	Vented Gauge
Sensata-Crydom 8MPP2-05-0X38-U-1	480 kPa	69.62 PSI	2.7 V	5 V	0.02 % FS	Barbless	5 PSI	34.47 kPa	85 °C	-40 C	Connector	12 b	14 b	Male	7.86 mm	0.31 in	Digital - I2C	Module	Vented Gauge
Sensata-Crydom 8MPP2-01-0X28-U-1	480 kPa	69.62 PSI	2.7 V	5 V	0.02 % FS	Barbless	1 PSI	6.89 kPa	85 °C	-40 C	Connector	12 b	14 b	Male	7.86 mm	0.31 in	Digital - I2C	Module	Vented Gauge
