XB5FV Series

Catalog

HARMONY XB5, ANTIMICROBIAL PILOT

Part	Lamp Color	Ratings	Voltage	Termination Style	Type	Lens Style	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Current	Panel Cutout Shape	Voltage [Min]	Voltage [Max]
SCHNEIDER ELECTRIC XB5FVB5	Orange	AC/DC	24 V	Screw Terminal	LED	Round with Flat Top	Orange	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	18 mA	Round
SCHNEIDER ELECTRIC XB5FVM3	Green	AC		Screw Terminal	LED	Round with Flat Top	Green	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	14 mA	Round	230 V	240 V

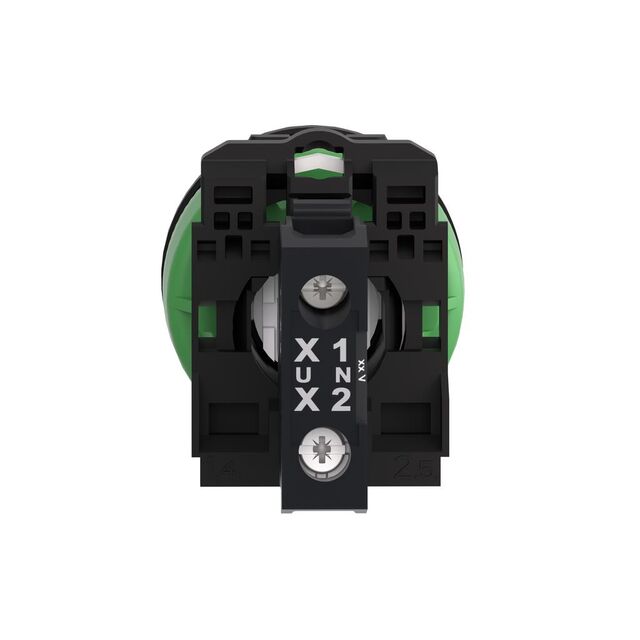

SCHNEIDER ELECTRIC XB5FVB4	Red	AC/DC	24 V	Screw Terminal	LED	Round with Flat Top	Red	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	18 mA	Round
SCHNEIDER ELECTRIC XB5FVG1	White	AC		Screw Terminal	LED	Round with Flat Top	White	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	14 mA	Round	110 V	120 V
SCHNEIDER ELECTRIC XB5FVB3	Green	AC/DC	24 V	Screw Terminal	LED	Round with Flat Top	Green	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	18 mA	Round
SCHNEIDER ELECTRIC XB5FVG5	Orange	AC		Screw Terminal	LED	Round with Flat Top	Orange	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	14 mA	Round	110 V	120 V
SCHNEIDER ELECTRIC XB5FVB6	Blue	AC/DC	24 V	Screw Terminal	LED	Round with Flat Top	Blue	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	18 mA	Round
SCHNEIDER ELECTRIC XB5FVG3	Green	AC		Screw Terminal	LED	Round with Flat Top	Green	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	14 mA	Round	110 V	120 V
SCHNEIDER ELECTRIC XB5FVM5	Orange	AC		Screw Terminal	LED	Round with Flat Top	Orange	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	14 mA	Round	230 V	240 V
SCHNEIDER ELECTRIC XB5FVM6	Blue	AC		Screw Terminal	LED	Round with Flat Top	Blue	30.5 mm	1.2 in	13 IP66 IP67 IP69 IP69K NEMA 4X	14 mA	Round	230 V	240 V
