DIN-Signal C Series
Manufacturer: HARTING
Beta
⌘K
DIN C MALE ANGLED, 96PIN, W/ BOARD LOCKS, PL1 ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Current Rating (Amps) | Material - Insulation | Number of Positions Loaded | Level, Class [custom] | Number of Positions | Termination | Connector Type | Number of Rows [custom] | Style | Mounting Type | Pitch | Pitch | Features | Number of Positions Loaded | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

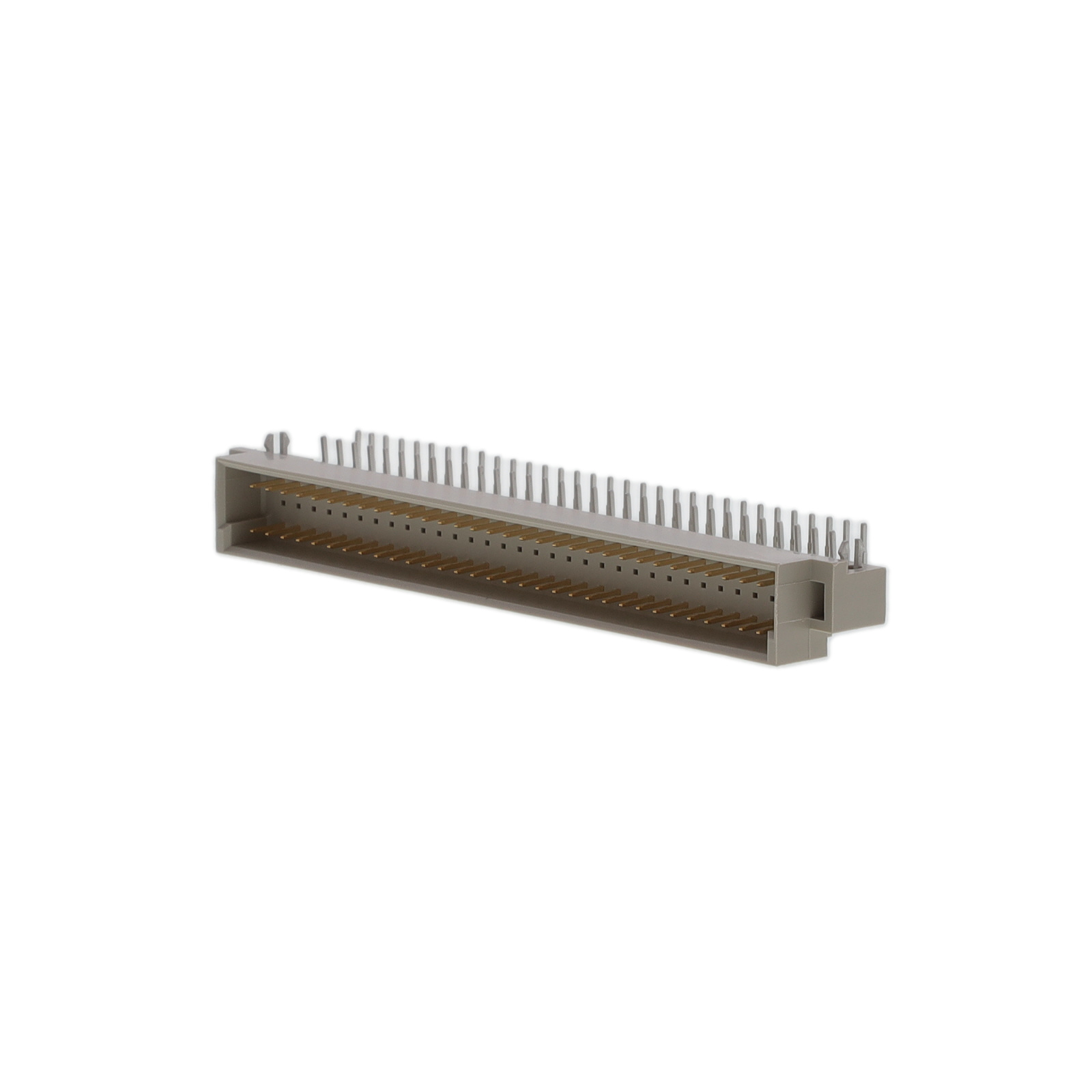

 HARTING | -55 C | 125 °C | UL94 V-0 | 2 A | Thermoplastic Glass Filled | All | 1 | 96 | Solder | Header Male Pins | 3 | C | Right Angle Through Hole | 0.1 " | 2.54 mm | Board Lock | ||
 HARTING | UL94 V-0 | Thermoplastic Glass Filled | 96 | Solder | Header Male Pins | 3 | C | Right Angle Through Hole | 0.1 " | 2.54 mm | Mounting Clips | 64 | ||||||

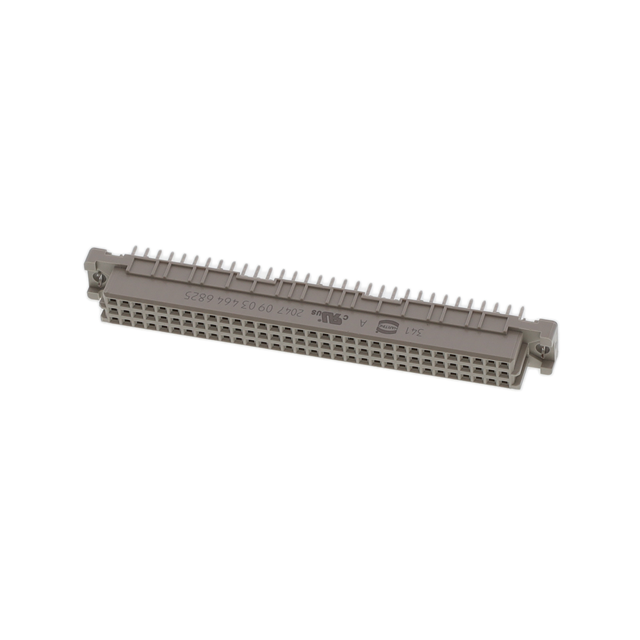

 HARTING | -55 C | 125 °C | UL94 V-0 | 2 A | Polybutylene Terephthalate (PBT) Glass Filled | 96 | Solder | Receptacle Female Sockets | 3 | C | Through Hole | 0.1 " | 2.54 mm | Mounting Clips | 64 | Gold-Palladium | ||
HARTING | UL94 V-0 | Thermoplastic Glass Filled | All | 96 | Solder | Receptacle Female Sockets | 3 | C | Through Hole | 0.1 " | 2.54 mm | Mounting Clips | ||||||
 HARTING | -40 C | 105 ░C | UL94 V-0 | 2 A | Polybutylene Terephthalate (PBT) Glass Filled | 1 | 96 | Press-Fit | Receptacle Female Sockets | 3 | C | Through Hole | 0.1 " | 2.54 mm | 32 | Gold-Palladium | ||
 HARTING | -40 C | 105 ░C | UL94 V-0 | Thermoplastic Glass Filled | All | 96 | Press-Fit | Receptacle Female Sockets | 3 | C | Through Hole | 0.1 " | 2.54 mm | Gold | ||||
 HARTING | -55 C | 125 °C | UL94 V-0 | 2 A | Polybutylene Terephthalate (PBT) Glass Filled | 1 | 96 | Solder | Receptacle Female Sockets | 3 | C | Through Hole | 0.1 " | 2.54 mm | 64 | Gold-Palladium | ||
HARTING | UL94 V-0 | Thermoplastic Glass Filled | 96 | Solder | Receptacle Female Sockets | 3 | C | Through Hole | 0.1 " | 2.54 mm | 64 | |||||||
 HARTING | UL94 V-0 | Thermoplastic Glass Filled | 96 | Solder | Receptacle Female Sockets | 3 | C | Through Hole | 0.1 " | 2.54 mm | Mounting Clips | 64 | ||||||
 HARTING | -55 C | 125 °C | UL94 V-0 | 2 A | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | 1 | 96 | Solder | Header Male Pins | 3 | C | Right Angle Through Hole | 0.1 " | 2.54 mm | Gold-Palladium |
