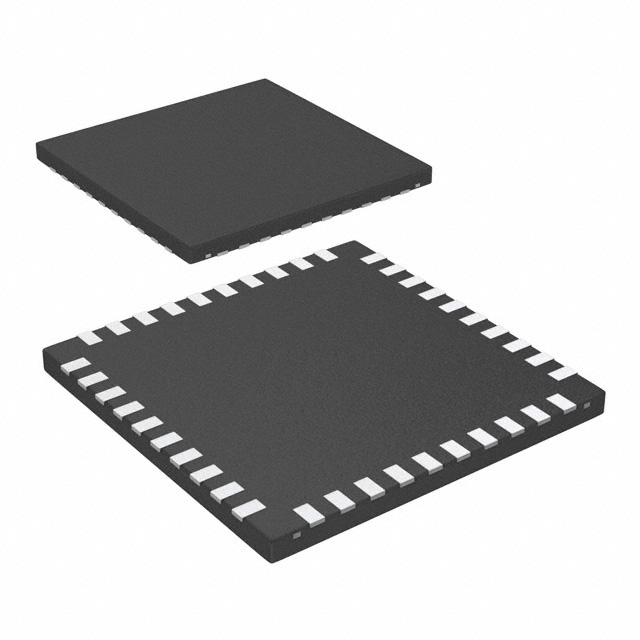

LM2512A Series
Mobile pixel link (MPL-1) 24bit RGB display interf serializer w/ optional dithering & look up table
Manufacturer: Texas Instruments
Catalog
Mobile pixel link (MPL-1) 24bit RGB display interf serializer w/ optional dithering & look up table
Key Features
• 24-bit RGB Interface Support up to 640 x 480 VGA FormatOptional 24 to 18-bit DitheringOptional Look Up Table for Independent Color CorrectionMPL-1 Physical LayerSPI Interface for Look Up Table Control and LoadingLow Power Consumption & Powerdown StateLevel Translation Between Host and DisplayOptional Auto Power Down on STOP PCLKFrame Sequence Bits Auto Resync upon Data or Clock Error1.6V to 2.0V Core / Analog Supply Voltage1.6V to 3.0V I/O Supply Voltage RangeSystem BenefitsDithered Data ReductionIndependent RGB Color Correction24-bit Color InputSmall Interface, Low Power and Low EMIIntrinsic Level TranslationAll trademarks are the property of their respective owners.24-bit RGB Interface Support up to 640 x 480 VGA FormatOptional 24 to 18-bit DitheringOptional Look Up Table for Independent Color CorrectionMPL-1 Physical LayerSPI Interface for Look Up Table Control and LoadingLow Power Consumption & Powerdown StateLevel Translation Between Host and DisplayOptional Auto Power Down on STOP PCLKFrame Sequence Bits Auto Resync upon Data or Clock Error1.6V to 2.0V Core / Analog Supply Voltage1.6V to 3.0V I/O Supply Voltage RangeSystem BenefitsDithered Data ReductionIndependent RGB Color Correction24-bit Color InputSmall Interface, Low Power and Low EMIIntrinsic Level TranslationAll trademarks are the property of their respective owners.
Description
AI
The LM2512A is a MPL Serializer (SER) that performs a 24-bit to 18-bit Dither operation and serialization of the video signals to Mobile Pixel link (MPL) levels on only 3 or 4 active signals. An optional Look Up Table (Three X 256 X 8 bit RAM) is also provided for independent color correction. 18-bit Bufferless or partial buffer displays from QVGA (320 x 240) up to VGA (640 x 480) pixels can utilize a 24-bit video source.
The interconnect is reduced from 28 signals to only 3 or 4 active signals with the LM2512A and companion deserializer easing flex interconnect design, size constraints and cost.
The LM2512A SER resides by the application, graphics or baseband processor and translates the wide parallel video bus from LVCMOS levels to serial Mobile Pixel Link levels for transmission over a flex cable (or coax) and PCB traces to the DES located near or in the display module.
When in Power_Down, the SER is put to sleep and draws less than 10μA. The link can also be powered down by stopping the PCLK (DES dependant) or by the PD* input pins.
The LM2512A provides enhanced AC performance over the LM2512. It implements the physical layer of the MPL-1 and uses a single-ended current-mode transmission.
The LM2512A is a MPL Serializer (SER) that performs a 24-bit to 18-bit Dither operation and serialization of the video signals to Mobile Pixel link (MPL) levels on only 3 or 4 active signals. An optional Look Up Table (Three X 256 X 8 bit RAM) is also provided for independent color correction. 18-bit Bufferless or partial buffer displays from QVGA (320 x 240) up to VGA (640 x 480) pixels can utilize a 24-bit video source.
The interconnect is reduced from 28 signals to only 3 or 4 active signals with the LM2512A and companion deserializer easing flex interconnect design, size constraints and cost.
The LM2512A SER resides by the application, graphics or baseband processor and translates the wide parallel video bus from LVCMOS levels to serial Mobile Pixel Link levels for transmission over a flex cable (or coax) and PCB traces to the DES located near or in the display module.
When in Power_Down, the SER is put to sleep and draws less than 10μA. The link can also be powered down by stopping the PCLK (DES dependant) or by the PD* input pins.
The LM2512A provides enhanced AC performance over the LM2512. It implements the physical layer of the MPL-1 and uses a single-ended current-mode transmission.
