5722 Series

Manufacturer: BRADY

Catalog

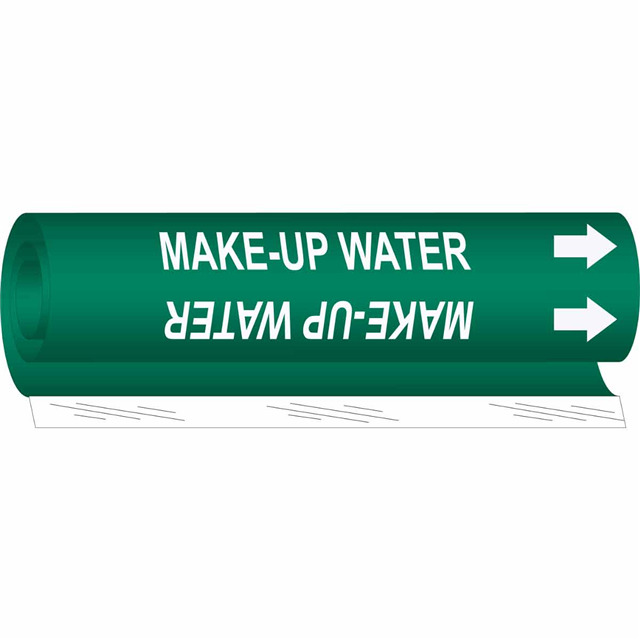

B689 5722-I WHT/GRN STYLE I

Part	Print Type	Color - Background	Application Specifics	Shape	Language	Location	Color - Legend	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Width	Width	Mounting Type	Applications	Arrangement	Length	Length	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Legend (Text)	Material - Body	Legend (Symbol Only)	Features	Outside Pipe Diameter (Min) [Min]	Length [x]	Length [x]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Width [x]	Width [x]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]
BRADY 5722-I	Pre-Printed	Green	Water Fluids	Rectangle	63000 A 69000 A	Outdoor	White	1.5 in	38.1 mm	8 in	203.2 mm	Snap On	General	Symbol and Text	9 in	228.6 mm	60.33 mm	2.375 in	Make-Up Water	Plastic	Directional Arrow	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant
BRADY 5722-II	Pre-Printed	Green	Directionality	Rectangle	63000 A 69000 A	Outdoor	White			12 in	304.8 mm	Snap On	Pipe	Symbol and Text				7.875 in	Make-Up Water	Plastic	Directional Arrow	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	200.03 mm	660.4 mm	26 in	63.5 mm	2.5 in
BRADY 5722-O	Pre-Printed	Green	Water Fluids	Rectangle	63000 A 69000 A	Outdoor	White					Snap On	General	Text Only	8 in	203.2 mm	34.93 mm	1.375 in	Make-Up Water	Plastic	Directional Arrow	Chemical Resistant						127 mm	127 mm	0.5 in	12.7 mm
