9HVA Type Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K
DC FANS FAN, 80X80X38MM, 48VDC, HIGH STATIC PRESSURE/AIRFLOW, RIB, TACH/PWM CLOSED LOOP
| Part | Approval Agency | Voltage - Rated | Air Flow | Air Flow | Fan Type | Termination | Static Pressure | Static Pressure | RPM | Width [y] | Bearing Type | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Noise | Features | Size / Dimension [z] | Size / Dimension [x] | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Blade | Material - Frame | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | cURus TUV | 48 VDC | 132 CFM | 3.7 m³/min | Tubeaxial | 4 Wire Leads | 1250 Pa | 5.02 in H2O | 16100 RPM | 38 mm | Ball | 43.2 W | -20 ░C | 70 °C | 73 dB(A) | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 80 mm | 80 mm | ||||||

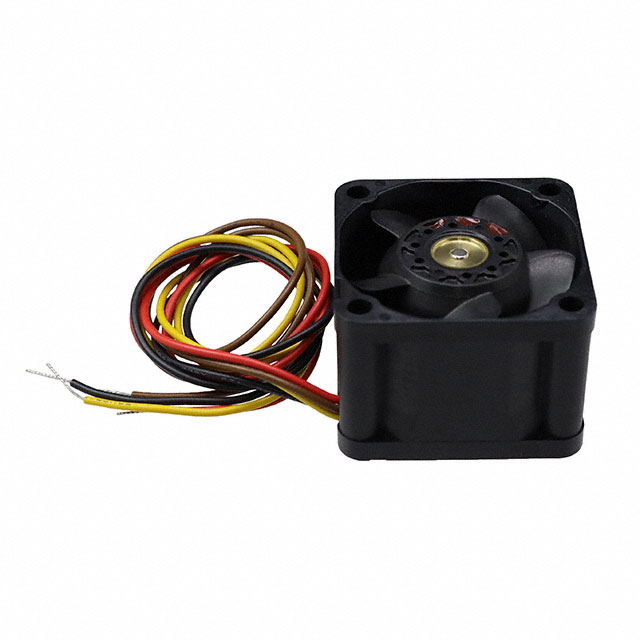

 Sanyo Denki America Inc. | cURus TUV | 12 VDC | 37.1 CFM | 1.04 mł/min | Tubeaxial | 4 Wire Leads | 2300 Pa | 9.24 in H2O | 38000 RPM | Ball | 31.2 W | -20 ░C | 70 °C | 71 dB(A) | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 40 mm | 40 mm | 10.2 VDC | 13.8 VDC | 2.6 A | Plastic | Plastic | 28 mm |
