A221T06V Series
Manufacturer: Nicomatic
Beta
⌘K

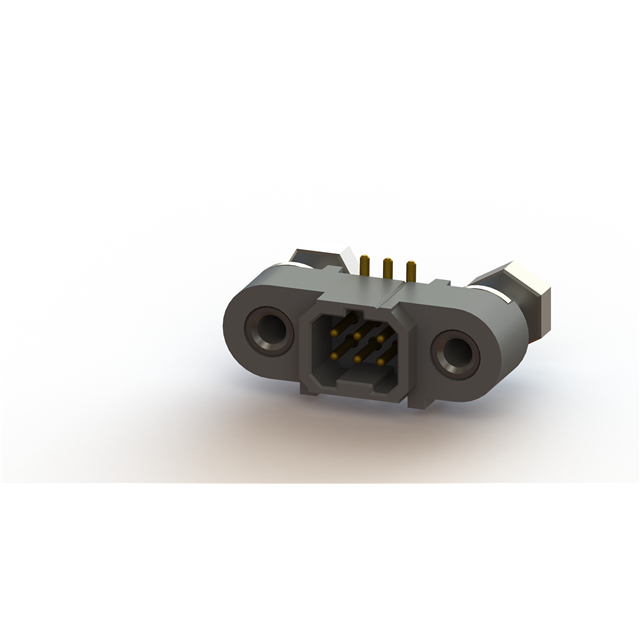

MALE 6POS STRAIGHT SMT 1MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Number of Positions Loaded | Mounting Type | Connector Type | Termination | Contact Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Features | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Style | Insulation Material | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Contact Finish - Mating | Contact Type | Current Rating (Amps) | Number of Rows [custom] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | 0.15 µm | 5.9 µin | Shrouded - 4 Wall | All | Surface Mount | Header | Solder | Copper Alloy | 6 | -65 ░C | 200 °C | Black | UL94 V-0 | 1 mm | 0.039 in | Mating Flange Mounting Flange Mounting Hardware | 0.039 in | 1 mm | Circular | Board to Board Cable | Liquid Crystal Polymer (LCP) | 5.9 µin | 0.15 µm | Gold | 4 mm | 0.157 in | Gold | Male Pin | 2.5 A | 2 | 600 VAC |
