R123W1 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

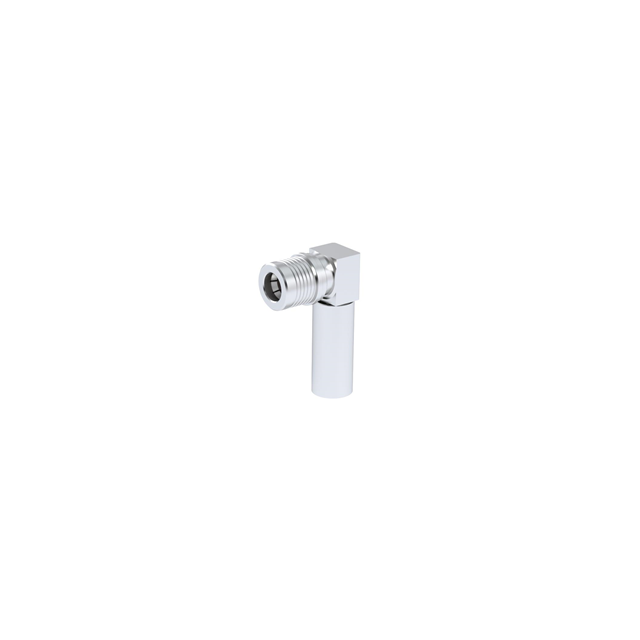

WQMA / RIGHT ANGLE PLUG CRIMP TY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Body Finish | Dielectric Material | Voltage Rating | Fastening Type | Impedance | Connector Style | Frequency - Max [Max] | Connector Type | Ingress Protection | Mounting Type | Number of Ports | Housing Color | Cable Group | Contact Termination | Center Contact Material | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -40 C | 105 ░C | Gold | Brass | White Bronze | Polytetrafluoroethylene (PTFE) | 335 V | Snap-On | 50 Ohms | WQMA | 6000 MHz | Plug Male Pin | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | 1 | Silver | LMR-240 | Crimp | Brass | Crimp |
