LV8735 Series

Catalog

IC MTR DRV BIPOLAR 0-5.5V 44SSOP

Part	Output Configuration	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Step Resolution	Interface	Package / Case [x]	Package / Case	Package / Case [y]	Applications	Supplier Device Package	Mounting Type	Motor Type - Stepper	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Technology	Motor Type - AC, DC	Function	Contents	Utilized IC / Part	Type	Supplied Contents
ON Semiconductor LV8735V-MPB-H	Half Bridge (4)	1 A	85 °C	-40 °C	1 1/16 1/2 1/8	Parallel	0.22 in	44-LSSOP Exposed Pad	5.6 mm	General Purpose	44-SSOPK	Surface Mount	Bipolar	5.5 V	0 V	32 V	9 V	BiCDMOS	Brushed DC	Driver - Fully Integrated Control and Power Stage

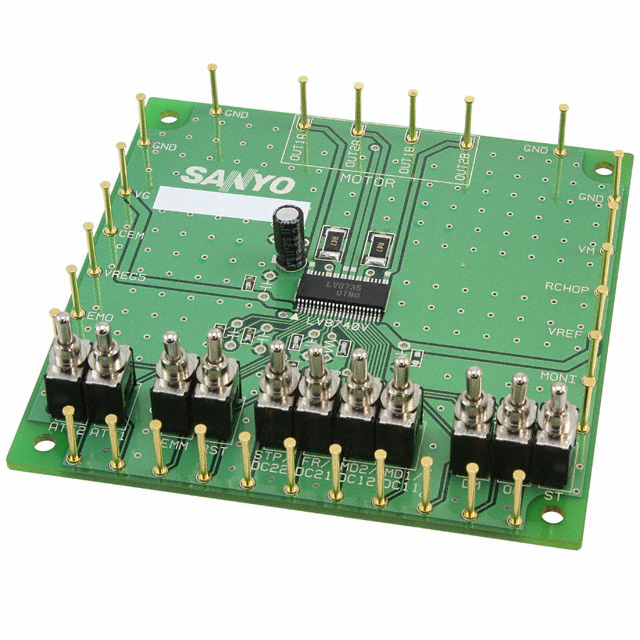

ON Semiconductor LV8735VGEVB																					Board(s)	LV8735V	Power Management	Board(s)
ON Semiconductor LV8735V-TLM-H	Half Bridge (4)	1 A	85 °C	-40 °C	1 1/16 1/2 1/8	Parallel	0.22 in	44-LSSOP Exposed Pad	5.6 mm	General Purpose	44-SSOPK	Surface Mount	Bipolar	5.5 V	0 V	32 V	9 V	BiCDMOS	Brushed DC	Driver - Fully Integrated Control and Power Stage
