NA Series

Power Line Filters AC 1-250 / DC250 16A 5 uA/ 10 uA max

Manufacturer: Cosel USA, Inc.

Catalog

Power Line Filters AC 1-250 / DC250 16A 5 uA/ 10 uA max

Catalog

Power Line Filters AC 1-250 / DC250 16A 5 uA/ 10 uA max

Part	Current	Applications	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)	Configuration	Voltage - Rated AC	Filter Type	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated DC	Frequency - Operating [Max]	Frequency - Operating [Min]

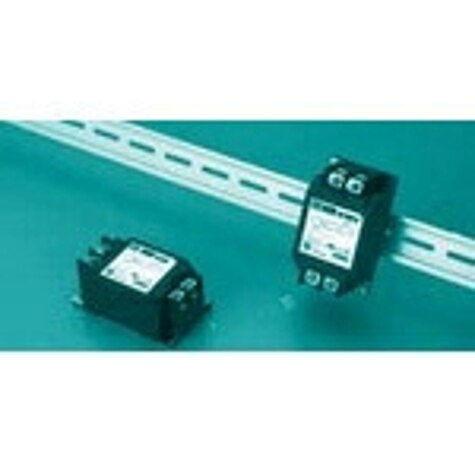

Cosel USA, Inc. NAM-16-471-D	16 A	General Purpose	cURus VDE	250 V	Single Stage	250 V	Single Phase	Terminal Block	DIN Rail	85 °C	-40 C	250 V
Cosel USA, Inc. NAP-30-222	30 A	General Purpose	cURus VDE	250 V	Single Stage	250 V	Single Phase	Terminal Block	Chassis Mount	85 °C	-40 C	250 V
Cosel USA, Inc. NAC-40-472	40 A	General Purpose	CSA cURus DEMKO ENEC		Single Stage	277 V	Single Phase	Terminal Block	Chassis Mount	85 °C	-40 C	300 V	60 Hz	50 Hz
Cosel USA, Inc. NAP-04-221	4 A	General Purpose	cURus VDE	250 V	Single Stage	250 V	Single Phase	Terminal Block	Chassis Mount	85 °C	-40 C	250 V
Cosel USA, Inc. NAP-06-472	6 A	General Purpose	cURus VDE	250 V	Single Stage	250 V	Single Phase	Terminal Block	Chassis Mount	85 °C	-40 C	250 V
Cosel USA, Inc. NAM-16-221	16 A	General Purpose	cURus VDE	250 V	Single Stage	250 V	Single Phase	Terminal Block	Chassis Mount	85 °C	-40 C	250 V
Cosel USA, Inc. NAH-10-101	10 A	General Purpose	cURus VDE	250 V	Single Stage	250 V	Single Phase	Terminal Block	Chassis Mount	85 °C	-40 C	250 V
Cosel USA, Inc. NAC-30-472-D	30 A	General Purpose	cURus VDE	250 V	Single Stage	250 V	Single Phase	Terminal Block	DIN Rail	85 °C	-40 C	250 V
Cosel USA, Inc. NAC-06-472-D	6 A	General Purpose	cURus VDE	250 V	Single Stage	250 V	Single Phase	Terminal Block	DIN Rail	85 °C	-40 C	250 V

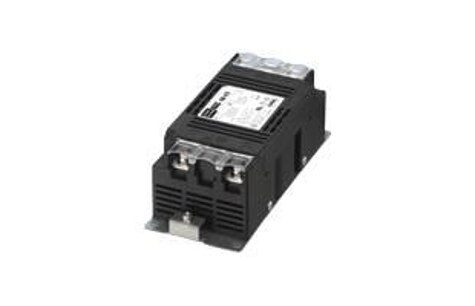

Cosel USA, Inc. NAP-40-222	40 A	General Purpose	CSA cURus DEMKO ENEC		Single Stage	277 V	Single Phase	Terminal Block	Chassis Mount	85 °C	-40 C	300 V	60 Hz	50 Hz
