87655 Series

Catalog

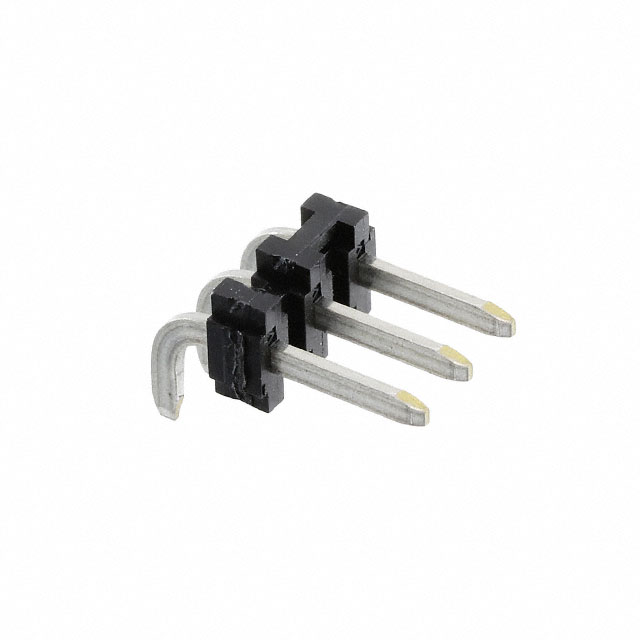

CONN HEADER R/A 3POS 3.96MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Mounting Type	Material Flammability Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Style	Fastening Type	Insulation Color	Connector Type	Insulation Height	Insulation Height	Contact Type	Number of Positions Loaded	Termination	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Insulation Material	Shrouding	Number of Rows	Number of Positions
TE Connectivity AMP Connectors 87655-3	1.27 µm	50 µin	50 µin	1.27 µm	Tin-Lead	Right Angle Through Hole	UL94 V-0	Brass	105 ░C	-65 ░C	Board to Board Cable	Push-Pull	Black	Header	6.35 mm	0.25 in	Male Pin	All	Solder	5 A	8.76 mm	0.345 in	Tin-Lead	Rectangular	3.81 mm	0.15 in	3.96 mm	0.156 in	Thermoplastic	Unshrouded	1
TE Connectivity AMP Connectors 2-87655-4	1.27 µm	50 µin	50 µin	1.27 µm	Tin-Lead	Right Angle Through Hole	UL94 V-0	Brass	105 ░C	-65 ░C	Board to Board Cable	Push-Pull	Black	Header	6.35 mm	0.25 in	Male Pin	All	Solder	5 A	8.76 mm	0.345 in	Tin-Lead	Rectangular	3.81 mm	0.15 in	3.96 mm	0.156 in	Thermoplastic	Unshrouded	1	24
