84501 Series
Manufacturer: Amphenol ICC (FCI)
Catalog

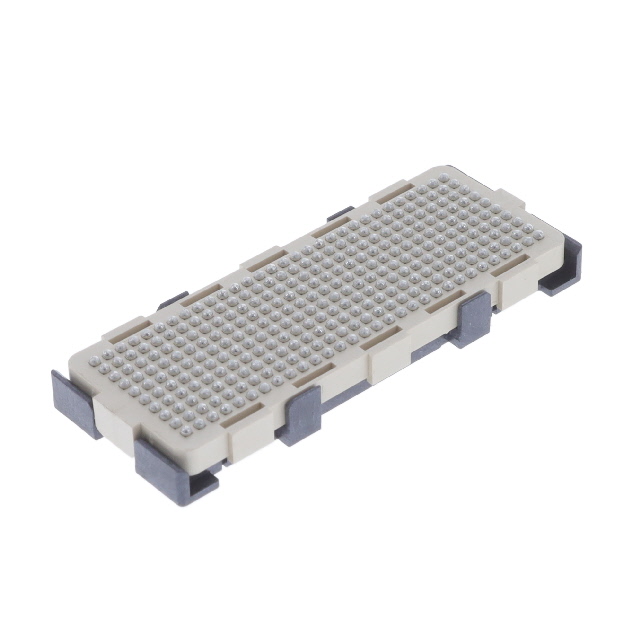

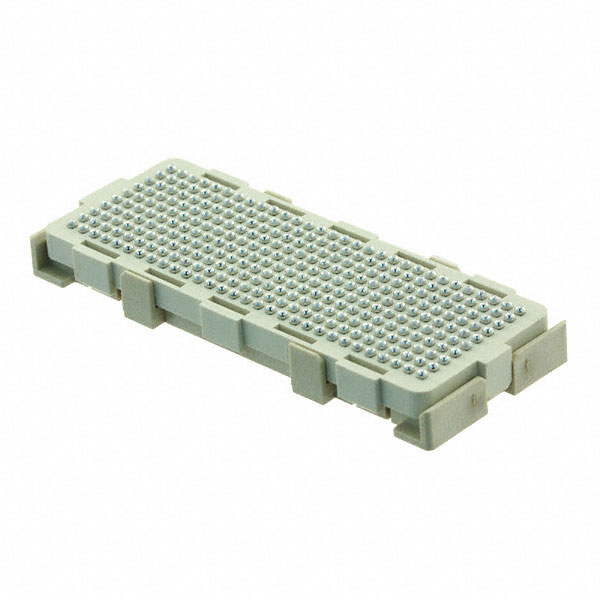

CONN ARRAY RCPT 300POS SMD GOLD
| Part | Number of Rows | Mounting Type | Number of Positions | Pitch [x] | Pitch [x] | Connector Type | Mated Stacking Heights | Contact Finish Thickness | Contact Finish Thickness | Height Above Board | Height Above Board | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 10 | Surface Mount | 300 | 0.05 in | 1.27 mm | Array Female Sockets | 4 mm 10 mm | 15 µin | 0.38 µm | 3.35 mm | 0.132 in | Gold GXT™ |
 Amphenol ICC (FCI) | 10 | Surface Mount | 300 | 0.05 in | 1.27 mm | Array Female Sockets | 4 mm 10 mm | 15 µin | 0.38 µm | 3.35 mm | 0.132 in | Gold |
Amphenol ICC (FCI) | 10 | Surface Mount | 300 | 0.05 in | 1.27 mm | Array Female Sockets | 4 mm 10 mm | 30 Áin | 0.76 Ám | 3.35 mm | 0.132 in | Gold GXT™ |
 Amphenol ICC (FCI) | 10 | Surface Mount | 300 | 0.05 in | 1.27 mm | Array Female Sockets | 4 mm 10 mm | 3.35 mm | 0.132 in | Gold or Gold GXT™ | ||
Amphenol ICC (FCI) | 10 | Surface Mount | 300 | 0.05 in | 1.27 mm | Array Female Sockets | 4 mm 10 mm | 3.35 mm | 0.132 in | Gold or Gold GXT™ | ||
Amphenol ICC (FCI) | 10 | Surface Mount | 300 | 0.05 in | 1.27 mm | Array Female Sockets | 4 mm 10 mm | 30 Áin | 0.76 Ám | 3.35 mm | 0.132 in | Gold GXT™ |
Amphenol ICC (FCI) | 10 | Surface Mount | 300 | 0.05 in | 1.27 mm | Array Female Sockets | 4 mm 10 mm | 3.35 mm | 0.132 in | Gold GXT™ |
