G846A041 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

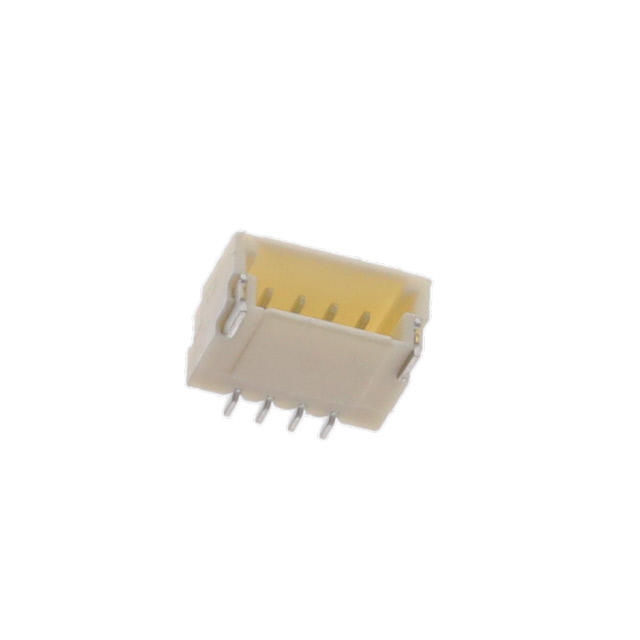

WIRE TO BOARD 1.0MM PITCH R/A SM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Fastening Type | Insulation Height | Insulation Height | Contact Type | Contact Material | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Positions | Current Rating (Amps) | Insulation Color | Insulation Material | Style | Mounting Type | Shrouding | Number of Rows | Termination | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 2.54 µm | 100 µin | Header | Push-Pull | 4.25 mm | 0.167 " | Male Pin | Copper Alloy | All | 100 çin | 2.54 çm | 50 VAC | 105 ░C | -45 °C | Square | UL94 V-0 | 1 mm | 0.039 in | 4 | Varies by Wire Gauge | White | Nylon 4/6 Polyamide (PA46) | Board to Cable/Wire | Right Angle Surface Mount | Shrouded - 4 Wall | 1 | Solder | Tin |
