68782 Series

Catalog

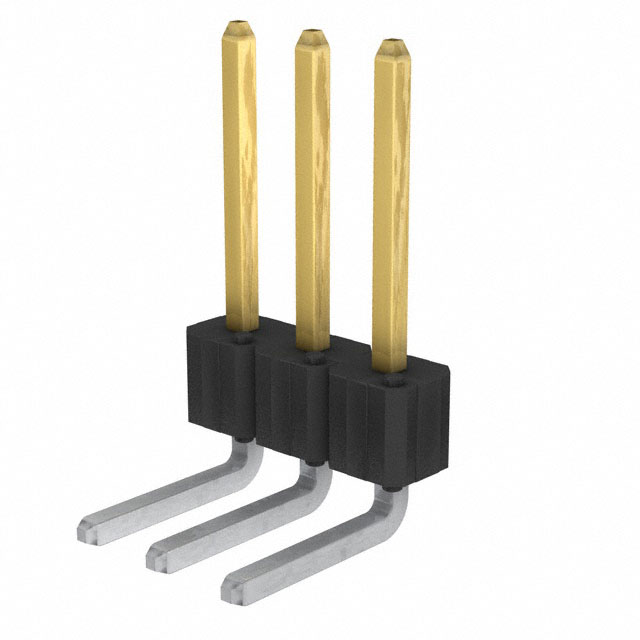

CONN HEADER R/A 36POS 2.54MM

Part	Contact Finish - Mating	Insulation Color	Shrouding	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Material	Material Flammability Rating	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Fastening Type	Contact Shape	Connector Type	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Type
Amphenol ICC (FCI) 68782-136	Gold or Gold GXT™	Black	Unshrouded	1	0.1 in	2.54 mm	30 Áin	0.76 Ám	Solder	0.095 in	2.41 mm	All	Phosphor Bronze	UL94 V-0	Through Hole Right Angle	0.318 "	8.08 mm	Push-Pull	Square	Header	36	0.18 in	4.57 mm	Male Pin
Amphenol ICC (FCI) 68782-203H	Gold or Gold GXT™	Black	Unshrouded	1	0.1 in	2.54 mm	15 µin	0.38 µm	Solder	0.095 in	2.41 mm	All	Phosphor Bronze	UL94 V-0	Through Hole Right Angle	0.318 "	8.08 mm	Push-Pull	Square	Header		0.18 in	4.57 mm	Male Pin
Amphenol ICC (FCI) 68782-436		Black	Unshrouded	1	0.1 in	2.54 mm	100 çin	2.54 çm	Solder	0.095 in	2.41 mm	All	Phosphor Bronze	UL94 V-0	Through Hole Right Angle	0.318 "	8.08 mm	Push-Pull	Square	Header	36	0.18 in	4.57 mm	Male Pin
