PXPTPU Series

Catalog

SENSOR CABLE, CAT6A, M12 PLUG, M12 PLUG, 8 POSITIONS, 10 M, 32.8 FT, BUCCANEER M12 SERIES

Part	Cable Material	Cable Type	2nd Connector Number of Positions [custom]	1st Connector Type	2nd Connector Gender	Color	2nd Connector Orientation	2nd Connector Number of Positions Loaded	2nd Connector Type	1st Connector Number of Positions Loaded	2nd Connector Mounting Type	1st Connector Gender	Assembly Configuration	Ingress Protection	1st Connector Orientation	1st Connector Mounting Type	2nd Connector Shell Size - Insert	Usage	1st Connector Shell Size - Insert [custom]	1st Connector Number of Positions [custom]	Length	Length	Shielding	1st Connector Number of Positions	Primary Material	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Orientation	Contact Finish - Mating	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Number of Positions	Voltage Rating	Connector Type	Fastening Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Features	Material Flammability Rating	Termination	1st Connector Shell Size - Insert

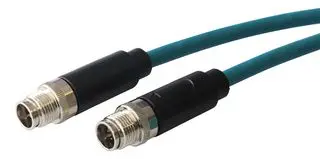

BULGIN LIMITED PXPTPU12FIM08XFI100PU	Polyurethane (PUR)	Round	8	Receptacle	Male Pins	Teal	X	All	Receptacle	All	Free Hanging (In-Line)	Male Pins	Standard	IP67 - Dust Tight Waterproof	X	Free Hanging (In-Line)	M12	Cat6a Industrial Environments	M12	8

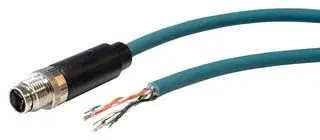

BULGIN LIMITED PXPTPU12FIM08XCL020PU	Polyurethane (PUR)	Round		Receptacle		Teal			Wire Leads	All		Male Pins	Standard	IP67 - Dust Tight Waterproof	X	Free Hanging (In-Line)		Cat6a Industrial Environments	M12	8	2 m	6.56 ft
BULGIN LIMITED PXPTPU12FIM08XFI010PU	Polyurethane (PUR)	Round	8	Receptacle	Male Pins	Teal	X	All	Receptacle	All	Free Hanging (In-Line)	Male Pins	Standard	IP67 - Dust Tight Waterproof	X	Free Hanging (In-Line)	M12	Cat6a Industrial Environments	M12	8	1 m	3.28 ft

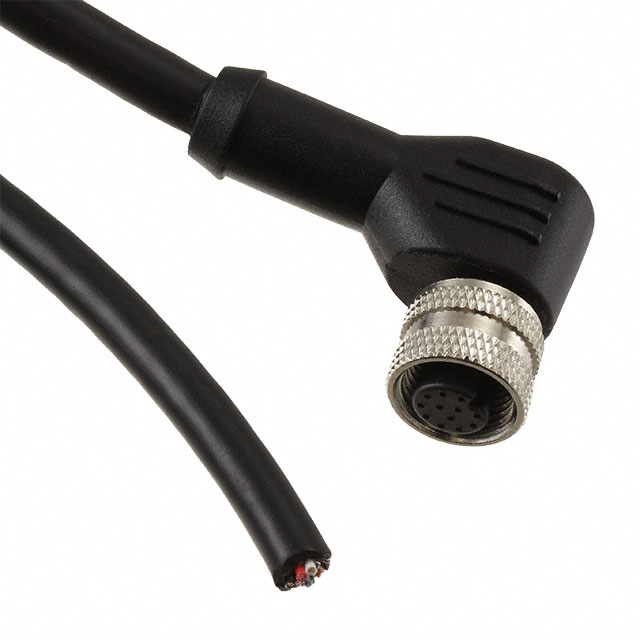

BULGIN LIMITED PXPTPU12RAF12ACL010PUR	Polyurethane (PUR)	Round		Plug Right Angle		Black			Wire Leads	All		Female Sockets	Standard	IP67 - Dust Tight Waterproof	A	Free Hanging (In-Line)		Industrial Environments	M12		1 m	3.28 ft	Unshielded	12

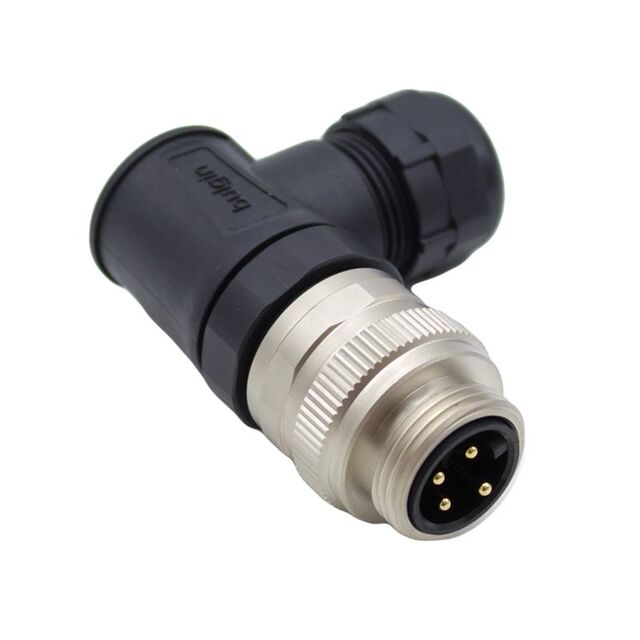

BULGIN LIMITED PXPTPU78RAM04ASTM22						Black Silver								IP67 - Dust Tight Waterproof									Unshielded		Plastic	Glass Filled Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	A	Gold	0.236 in	6 mm	12 mm	0.472 in	4	300 VDC	Plug Male Pins	Threaded	9 A	0.025 µm	1 µin	Brass	Free Hanging (In-Line) Right Angle	Backshell	UL94 V-0	Screw

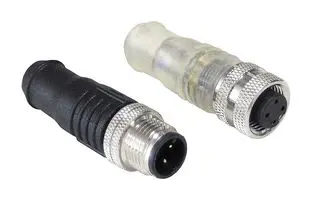

BULGIN LIMITED PXPTPU08FBF04PCL010PUR	Polyurethane (PUR)	Round		Plug		Black			Wire Leads	All		Female Sockets	Standard	IP67 - Dust Tight Waterproof	P	Free Hanging (In-Line)		Industrial Environments			1 m	3.28 ft	Unshielded	4																								M8

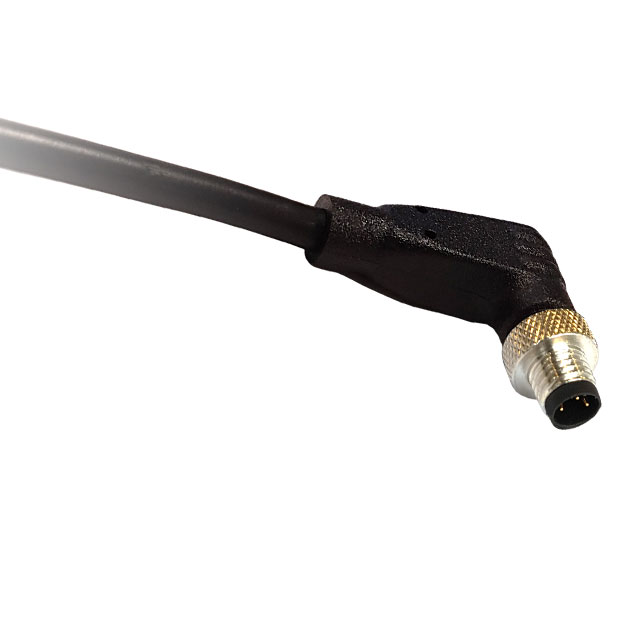

BULGIN LIMITED PXPTPU05RAM04ACL010PUR	Polyurethane (PUR)	Round		Receptacle Right Angle		Black			Wire Leads	All		Male Pins	Standard	IP67 - Dust Tight Waterproof	A	Free Hanging (In-Line)		Industrial Environments			1 m	3.28 ft	Unshielded	4																								M5

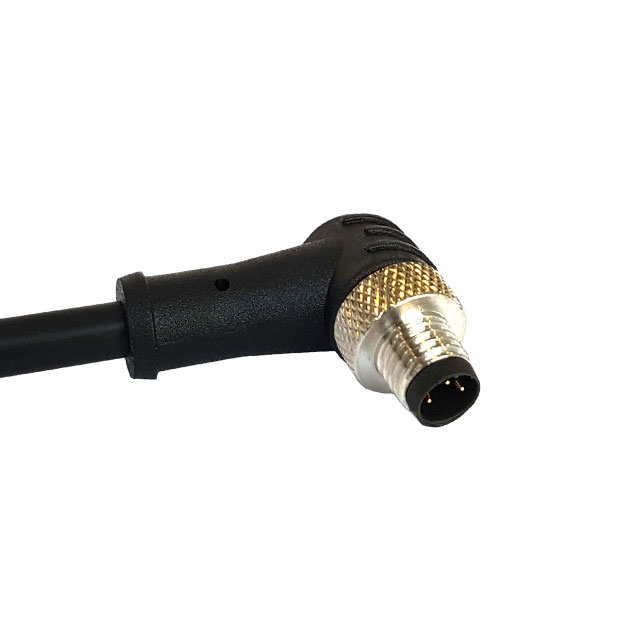

BULGIN LIMITED PXPTPU08RAM05BCL010PUR	Polyurethane (PUR)	Round		Receptacle Right Angle		Black			Wire Leads	All		Male Pins	Standard	IP67 - Dust Tight Waterproof	B	Free Hanging (In-Line)		Industrial Environments			1 m	3.28 ft	Unshielded	5																								M8
BULGIN LIMITED PXPTPU12RAF05BCL010PUR	Polyurethane (PUR)	Round		Plug Right Angle		Black			Wire Leads	All		Female Sockets	Standard	IP67 - Dust Tight Waterproof	B	Free Hanging (In-Line)		Industrial Environments	M12		1 m	3.28 ft	Unshielded	5

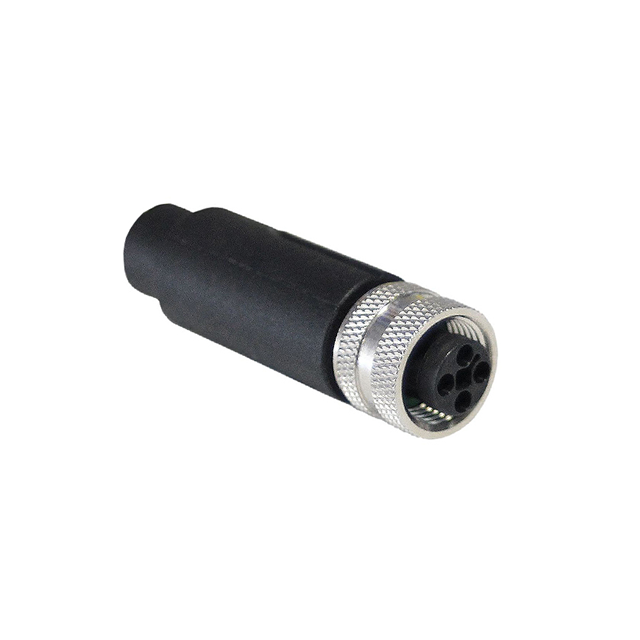

BULGIN LIMITED PXPTPU12FBF04TCL010PUR	Polyurethane (PUR)	Round		Plug		Black			Wire Leads	All		Female Sockets	Standard	IP67 - Dust Tight Waterproof	T	Free Hanging (In-Line)		Industrial Environments	M12		1 m	3.28 ft	Unshielded	4
