MXM8-PW Series
Manufacturer: Lumileds
Beta
⌘K

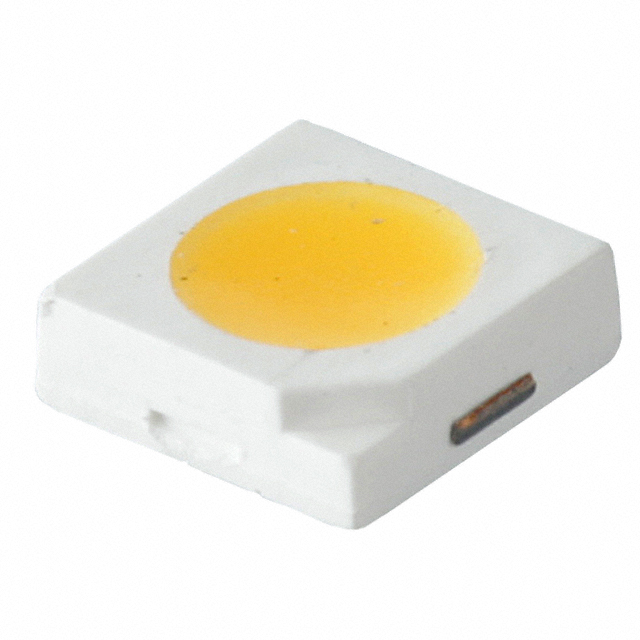

LED LUXEON COOL WHITE 6500K 3535
| Part | Thermal Resistance of Package | Viewing Angle | Current - Max [Max] | Color | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) | Mounting Type | Lumens/Watt @ Current - Test | Supplier Device Package | CCT (K) | Voltage - Forward (Vf) (Typ) | Current - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Flux @ 25°C, Current - Test | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 20 °C/W | 115 ° | 150 mA | Cool White | 1414 (3535 Metric) | 0.053 " | 1.35 mm | Surface Mount | 116 lm/W | 3535 | 6500 K | 3.1 V | 100 mA | 0.138 in | 0.138 in | 3.5 mm | 3.5 mm | 36 lm | 80 |
Lumileds | 20 °C/W | 115 ° | 150 mA | Cool White | 1414 (3535 Metric) | 0.053 " | 1.35 mm | Surface Mount | 116 lm/W | 3535 | 5700 K | 3.1 V | 100 mA | 0.138 in | 0.138 in | 3.5 mm | 3.5 mm | 36 lm | 80 |
