845-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K

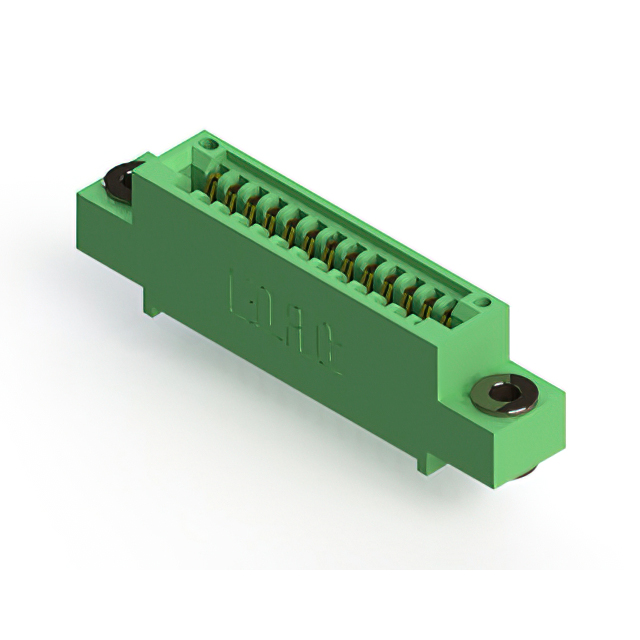

CONN EDGE SINGLE FML 13POS 0.100
| Part | Material - Insulation | Termination Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Gender | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Contact Material | Pitch | Pitch | Color | Number of Positions/Bay/Row | Number of Rows | Card Type | Mounting Type | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Solder Eyelet(s) | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Through Hole | Single | 125 °C | -40 C | Cantilever | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Solder | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Right Angle Through Hole | Single | 125 °C | -40 C | Cantilever | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Wire Wrap | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Through Hole | Single | 125 °C | -40 C | Cantilever | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Solder | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Right Angle Through Hole | Single | 125 °C | -40 C | Cantilever | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.156 " | 3.96 mm | Wire Wrap | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Through Hole | Single | 125 °C | -40 C | Cantilever | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Solder | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Right Angle Through Hole | Single | 125 °C | -40 C | Cantilever | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | M3 Threaded Insert Top Mount Opening | Solder | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Right Angle Through Hole | Single | 125 °C | -40 C | Cantilever | Gold | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.128 " | 3.25 mm | Wire Wrap | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Through Hole | Single | 125 °C | -40 C | Cantilever | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.128 " | 3.25 mm | Solder | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Through Hole | Single | 125 °C | -40 C | Cantilever | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Solder | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 13 | Copper Alloy | 0.1 " | 2.54 mm | Green | 13 | 1 | Non Specified - Single Edge | Through Hole | Single | 125 °C | -40 C | Cantilever | Gold |
