TRG1505 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output	Input Type	Polarization	Applications	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Region Utilized	Form	Efficiency	Input Connector	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Current - Output (Max) [Max]	Weight	Weight	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]

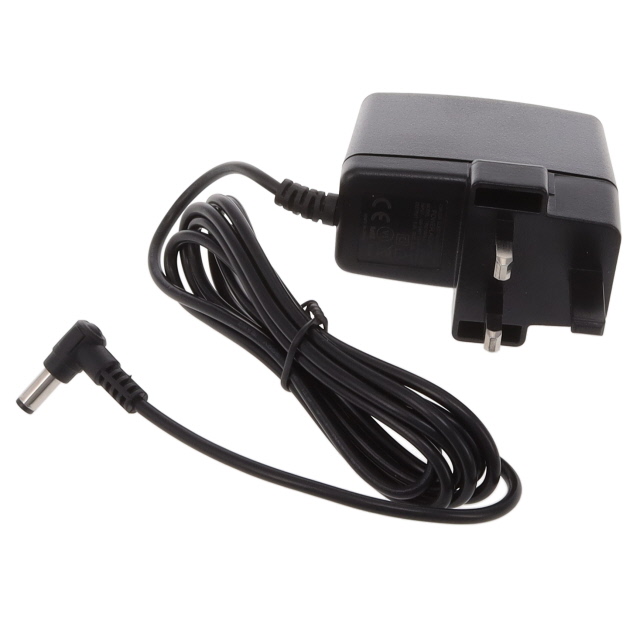

Cincon Electronics Co. LTD TRG1505-U-01E03 VI	60950-1	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	5 V	Fixed Blade	Positive Center	ITE (Commercial)	10 W	-20 ░C	60 °C	CE cULus FCC GS PSE TUV	United Kingdom	Wall Mount (Class I)	CoC Tier 2 Level VI	BS 1363	70.9 "	1.8 m	264 VAC	90 VAC	75 mW	2 A
Cincon Electronics Co. LTD TRG1505-A-11E03 VI		52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	5 V	Fixed Blade	Positive Center	ITE (Commercial)	10 W	-20 ░C	60 °C	CE cULus FCC GS PSE TUV	North America	Wall Mount	CoC Tier 2 Level VI	NEMA 1-15P	70.9 "	1.8 m	264 VAC	90 VAC	75 mW	2 A	0.309 lb	140 g	2.1 mm	5.5 mm	Barrel Plug	12 mm

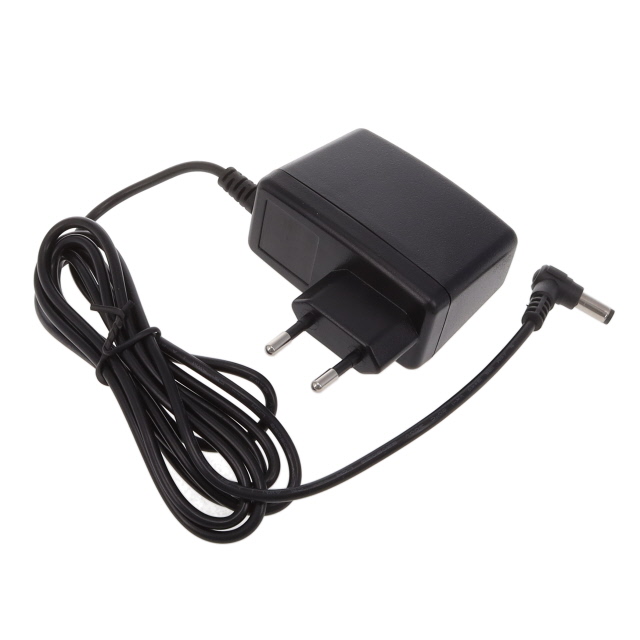

Cincon Electronics Co. LTD TRG1505-E-01E03 VI	60950-1	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	5 V	Fixed Blade	Positive Center	ITE (Commercial)	10 W	-20 ░C	60 °C	CE cULus FCC GS PSE TUV	Europe	Wall Mount	CoC Tier 2 Level VI	KSC 8305	70.9 "	1.8 m	264 VAC	90 VAC	75 mW	2 A

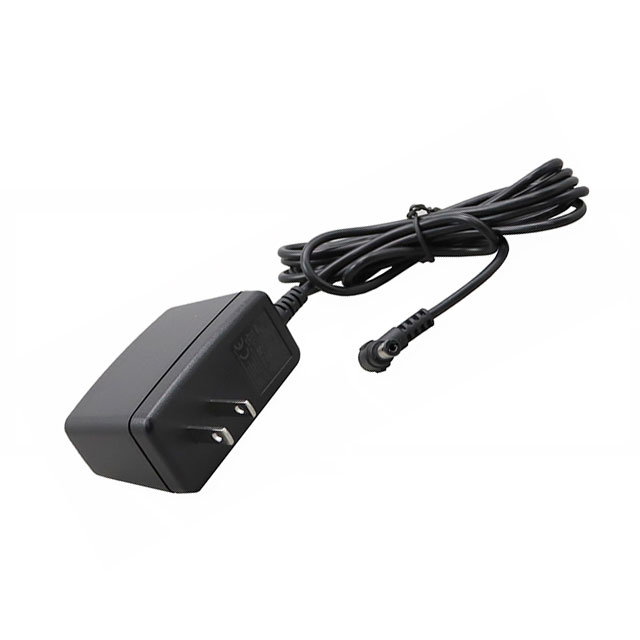

Cincon Electronics Co. LTD TRG1505-A-01E03 VI	60950-1	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	5 V	Fixed Blade	Positive Center	ITE (Commercial)	10 W	-20 ░C	60 °C	CE cULus FCC GS PSE TUV	North America	Wall Mount	CoC Tier 2 Level VI	NEMA 1-15P	70.9 "	1.8 m	264 VAC	90 VAC	75 mW	2 A

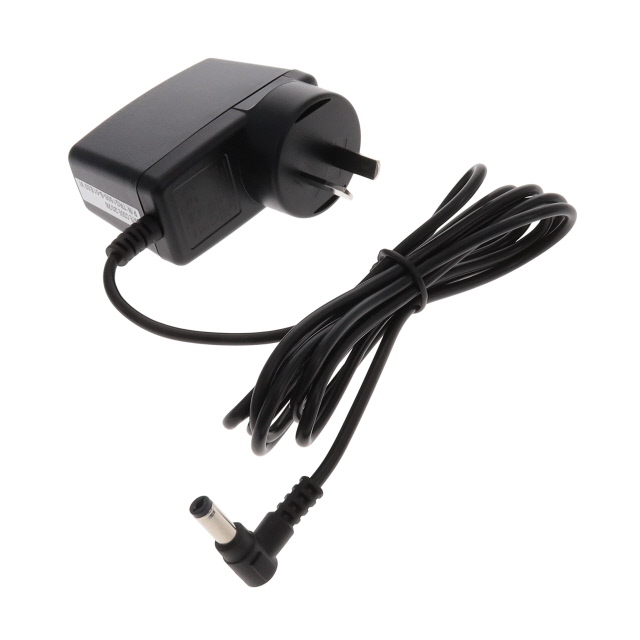

Cincon Electronics Co. LTD TRG1505-S-01E03 VI	60950-1	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	5 V	Fixed Blade	Positive Center	ITE (Commercial)	10 W	-20 ░C	60 °C	CE cULus FCC GS PSE TUV	Australia	Wall Mount	CoC Tier 2 Level VI	AS 3112	70.9 "	1.8 m	264 VAC	90 VAC	75 mW	2 A
