392-031 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 31POS 0.100

Part	Material - Insulation	Termination Rows	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Termination	Read Out	Contact Material	Contact Type	Card Type	Color	Number of Positions [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row [custom]	Mounting Type

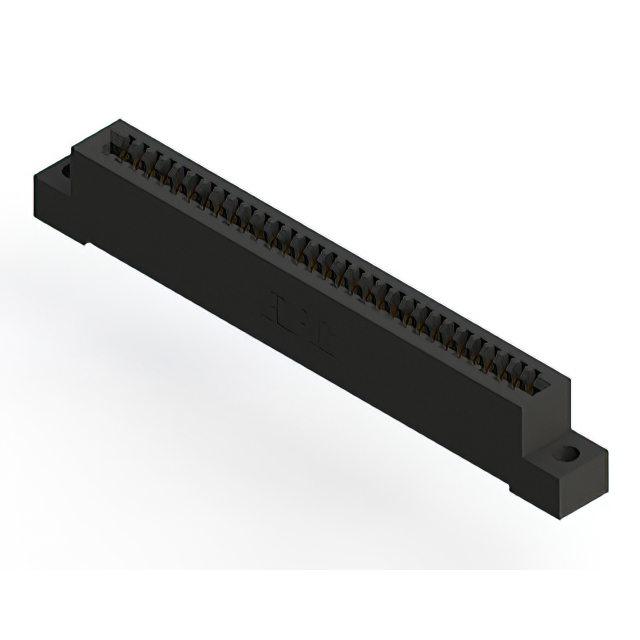

EDAC Inc. 392-031-521-104	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Solder	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole
EDAC Inc. 392-031-521-103	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Solder	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole
EDAC Inc. 392-031-540-107	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Wire Wrap	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31	Flush Mount M3 Threaded Insert Top Opening			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole

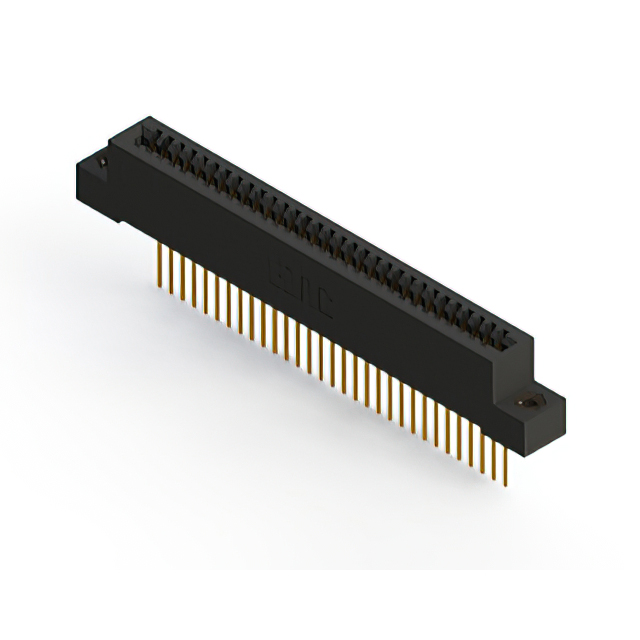

EDAC Inc. 392-031-542-108	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Wire Wrap	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31	4-40 Flush Mount Threaded Insert Top Opening			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole

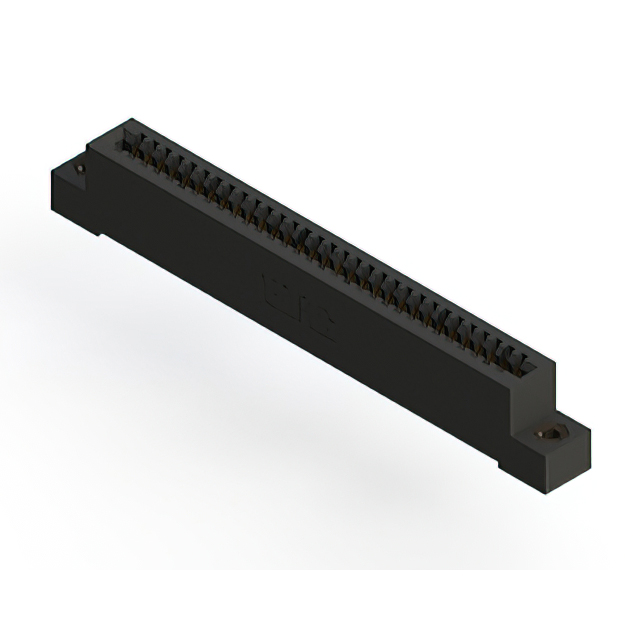

EDAC Inc. 392-031-520-107	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Solder	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31	Flush Mount M3 Threaded Insert Top Opening			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole
EDAC Inc. 392-031-524-101	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Solder	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31				0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole
EDAC Inc. 392-031-540-112	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Wire Wrap	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole
EDAC Inc. 392-031-523-101	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Solder	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31				0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole

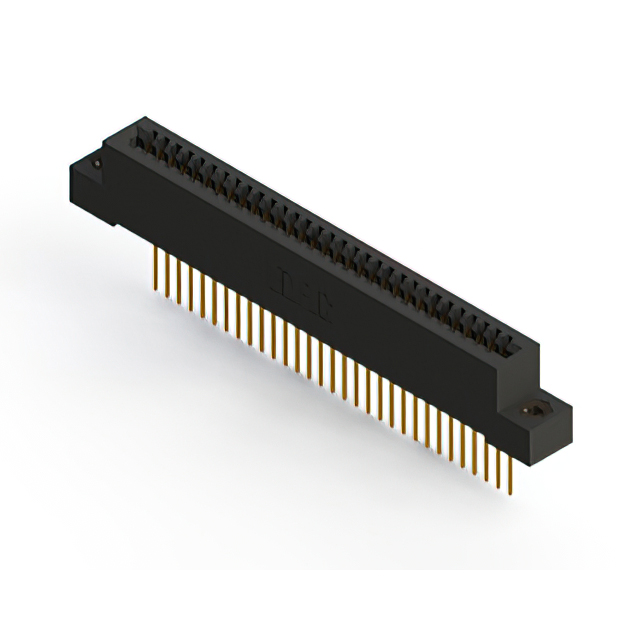

EDAC Inc. 392-031-540-108	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Wire Wrap	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31	4-40 Flush Mount Threaded Insert Top Opening			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole
EDAC Inc. 392-031-521-102	Polyester Thermoplastic	1	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	1	Solder	Single	Copper Alloy	Cantilever	Non Specified - Single Edge	Black	31	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Through Hole
