2842114 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

8P,2MM,BRK HDR,SRRT,2.8,0.1AU,TB

Part	Material Flammability Rating	Voltage Rating	Contact Finish - Post	Current Rating (Amps)	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Features	Shrouding	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Number of Positions Loaded	Number of Rows	Insulation Height	Insulation Height	Termination	Contact Length - Post [x]	Contact Length - Post	Connector Type	Insulation Material	Mounting Type
TE Connectivity Raychem Cable Protection 2842114-8	UL94 V-0	125 VAC	Tin	2 A	Male Pin	Gold	3.94 µin	0.1 µm	125 °C	-40 °C	Copper Alloy	Pick and Place	Unshrouded	Black	2 çm	78.7 çin	4 mm	0.157 in	Square	8	0.079 in	2 mm	Push-Pull	All	1	1.5 mm	0.059 "	Solder	0.11 in	2.79 mm	Breakaway Header	Thermoplastic	Through Hole Right Angle

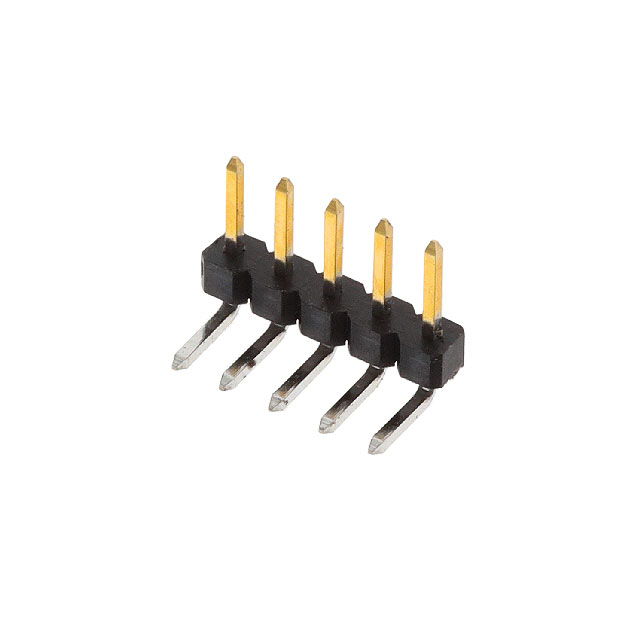

TE Connectivity Raychem Cable Protection 2842114-5	UL94 V-0	125 VAC	Tin	2 A	Male Pin	Gold	3.94 µin	0.1 µm	125 °C	-40 °C	Copper Alloy	Pick and Place	Unshrouded	Black	2 çm	78.7 çin	4 mm	0.157 in	Square		0.079 in	2 mm	Push-Pull	All	1	1.5 mm	0.059 "	Solder	0.11 in	2.79 mm	Breakaway Header	Thermoplastic	Through Hole Right Angle

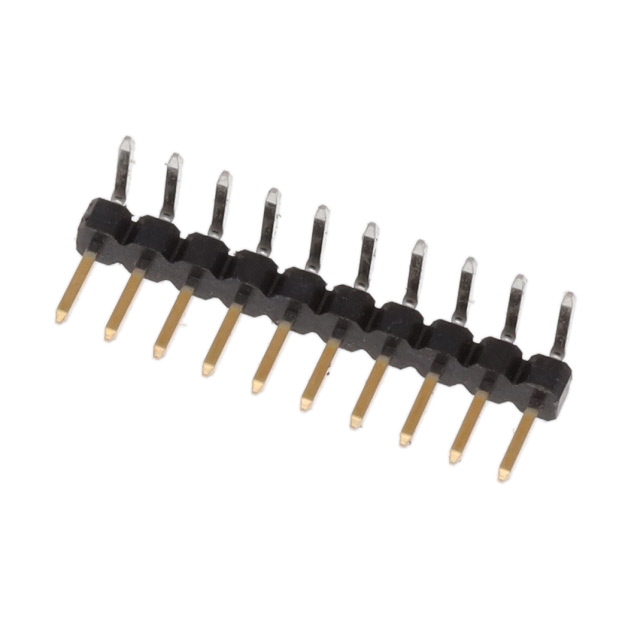

TE Connectivity Raychem Cable Protection 1-2842114-0	UL94 V-0	125 VAC	Tin	2 A	Male Pin	Gold	3.94 µin	0.1 µm	125 °C	-40 °C	Copper Alloy	Pick and Place	Unshrouded	Black	2 çm	78.7 çin	4 mm	0.157 in	Square	10	0.079 in	2 mm	Push-Pull	All	1	1.5 mm	0.059 "	Solder	0.11 in	2.79 mm	Breakaway Header	Thermoplastic	Through Hole Right Angle

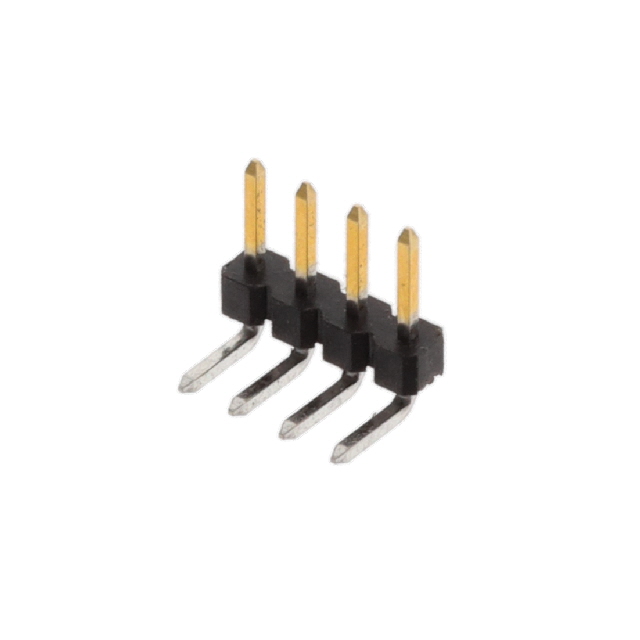

TE Connectivity Raychem Cable Protection 2842114-4	UL94 V-0	125 VAC	Tin	2 A	Male Pin	Gold	3.94 µin	0.1 µm	125 °C	-40 °C	Copper Alloy	Pick and Place	Unshrouded	Black	2 çm	78.7 çin	4 mm	0.157 in	Square	4	0.079 in	2 mm	Push-Pull	All	1	1.5 mm	0.059 "	Solder	0.11 in	2.79 mm	Breakaway Header	Thermoplastic	Through Hole Right Angle

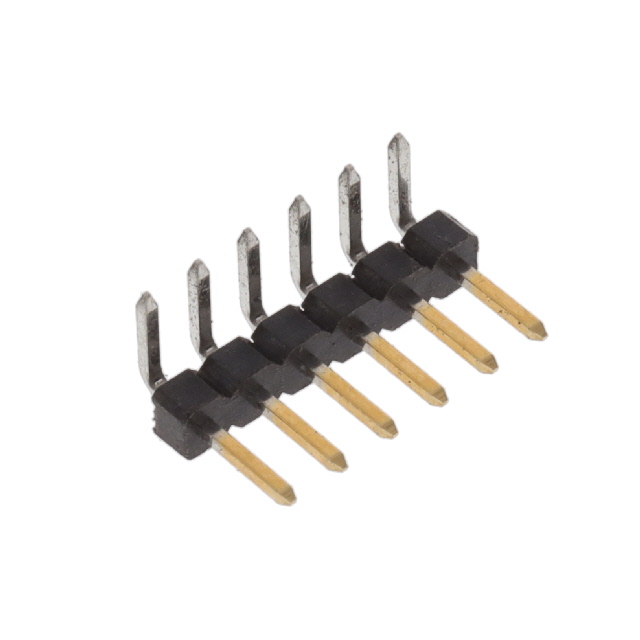

TE Connectivity Raychem Cable Protection 2842114-6	UL94 V-0	125 VAC	Tin	2 A	Male Pin	Gold	3.94 µin	0.1 µm	125 °C	-40 °C	Copper Alloy	Pick and Place	Unshrouded	Black	2 çm	78.7 çin	4 mm	0.157 in	Square	6	0.079 in	2 mm	Push-Pull	All	1	1.5 mm	0.059 "	Solder	0.11 in	2.79 mm	Breakaway Header	Thermoplastic	Through Hole Right Angle
