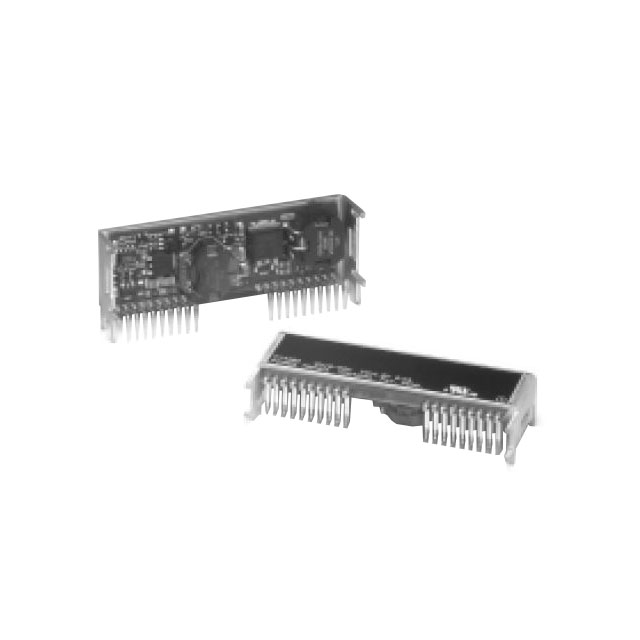

PT4561 Series

Catalog

DC DC CONVERTER 3.3V 30W

Part	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Efficiency	Package / Case	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Isolation	Type	Voltage - Input (Max) [Max]	Power (Watts)	Number of Outputs	Features
Texas Instruments PT4561N	3.3 V	36 V	8 A	80 %	19-SIP Module	Through Hole	1.02 in	3 "	17 mm	0.67 in	25.9 mm	76.2 mm	85 °C	-40 °C	ITE (Commercial)	1.5 kV	Isolated Module	75 V	30 W	1
Texas Instruments PT4561A	3.3 V	36 V	8 A	80 %	19-SIP Module	Through Hole Right Angle							85 °C	-40 °C	ITE (Commercial)	1.5 kV	Isolated Module	75 V	30 W	1	UVLO
Texas Instruments PT4561C	3.3 V	36 V	8 A	80 %	19-SMD Module	Surface Mount	0.5 in	3 "	30.2 mm	1.19 "	12.7 mm	76.2 mm	85 °C	-40 °C	ITE (Commercial)	1.5 kV	Isolated Module	75 V	30 W	1	OCP OTP Remote On/Off SCP UVLO
