L177HRE15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

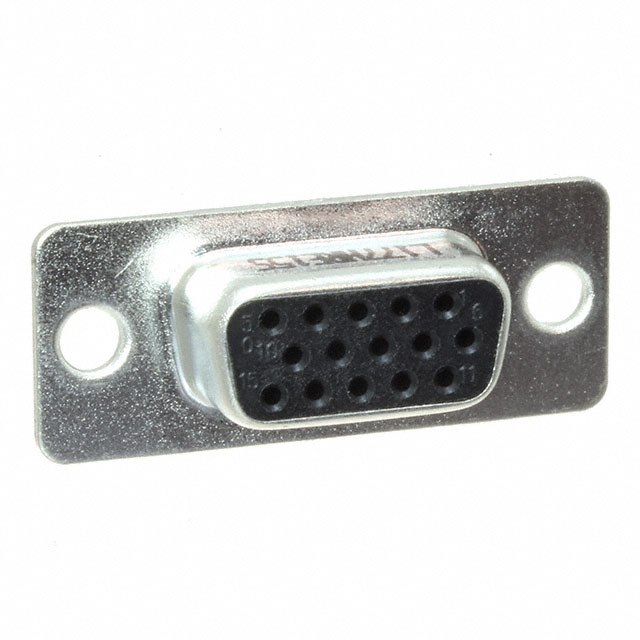

CONN D-SUB HD HOUSING RCPT 15POS
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Note | Number of Rows [custom] | Connector Style | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Connector Type | Shell Finish Thickness | Shell Finish Thickness | Mounting Type | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 3 | D-Sub High Density | 15 | (DE E) High Density | 1 | Signal | Receptacle for Female Contacts | 2.54 µm | 100 µin | Free Hanging (In-Line) | 4-40 Mating Side Female Screwlock |
 Amphenol ICC (Commercial Products) | Black | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Contacts Not Included | 3 | D-Sub High Density | 15 | (DE E) High Density | 1 | Signal | Receptacle for Female Contacts | 2.54 µm | 100 µin | Free Hanging (In-Line) | Housing/Shell (Unthreaded) |
