DRV8311 Series

24-V abs max, 3 to 20-V, three-phase brushless-DC motor driver with integrated FETs

Catalog

24-V abs max, 3 to 20-V, three-phase brushless-DC motor driver with integrated FETs

Part	Current - Output	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Output Configuration	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Technology	Motor Type - AC, DC	Motor Type - Stepper	Function	Interface [custom]	Interface [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface
Texas Instruments DRV8311HRRWR	5 A	Surface Mount	3 V	20 V	Pre-Driver - Half Bridge (3)	24-WFQFN Exposed Pad	24-WQFN (3x3)	-40 °C	125 °C	General Purpose	NMOS	Brushless DC (BLDC)	Multiphase	Driver - Fully Integrated Control and Power Stage	HW	Hardwired	3 V	20 V

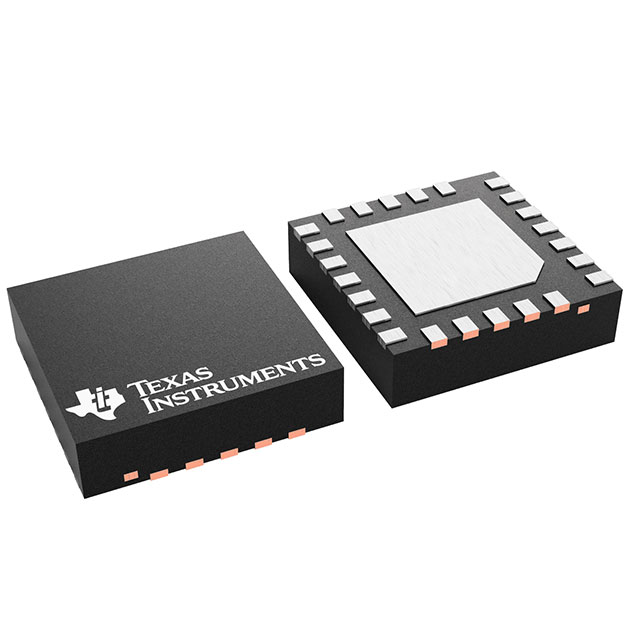

Texas Instruments DRV8311PRRWR	5 A	Surface Mount	3 V	20 V	Pre-Driver - Half Bridge (3)	24-WFQFN Exposed Pad	24-WQFN (3x3)	-40 °C	125 °C	General Purpose	NMOS	Brushless DC (BLDC)	Multiphase	Driver - Fully Integrated Control and Power Stage			3 V	20 V	PWM SPI

Catalog

24-V abs max, 3 to 20-V, three-phase brushless-DC motor driver with integrated FETs

Key Features

• Three-phase PWM motor driver3-Phase brushless DC motors3-V to 20-V operating voltage24-V Absolute maximum voltageHigh output current capability5-A Peak current driveLow on-state resistance MOSFETs210-mΩ typ RDS(ON)(HS + LS) at TA= 25°CLow power sleep mode1.5-µA at VVM= 12-V, TA= 25°CMultiple control interface options6x PWM control interface3x PWM control interfacePWM generation mode (SPI/tSPI) with optional calibration between MCU and DRV8311tSPI interface (DRV8311P)PWM duty and frequency update over SPIControl multiple DRV8311P devices using standard 4-wire SPI interfaceSupports up to 200-kHz PWM frequencyIntegrated current sensingNo external resistor requiredSense amplifier output, one per 1/2-bridgeSPI and hardware device variants10-MHz SPI communication (SPI/tSPI)Supports 1.8-V, 3.3-V, and 5-V logic inputsBuilt-in 3.3-V ± 4.5%, 100-mA LDO regulatorIntegrated protection featuresVM undervoltage lockout (UVLO)Charge pump undervoltage (CPUV)Overcurrent protection (OCP)Thermal warning and shutdown (OTW/OTSD)Fault condition indication pin (nFAULT)Three-phase PWM motor driver3-Phase brushless DC motors3-V to 20-V operating voltage24-V Absolute maximum voltageHigh output current capability5-A Peak current driveLow on-state resistance MOSFETs210-mΩ typ RDS(ON)(HS + LS) at TA= 25°CLow power sleep mode1.5-µA at VVM= 12-V, TA= 25°CMultiple control interface options6x PWM control interface3x PWM control interfacePWM generation mode (SPI/tSPI) with optional calibration between MCU and DRV8311tSPI interface (DRV8311P)PWM duty and frequency update over SPIControl multiple DRV8311P devices using standard 4-wire SPI interfaceSupports up to 200-kHz PWM frequencyIntegrated current sensingNo external resistor requiredSense amplifier output, one per 1/2-bridgeSPI and hardware device variants10-MHz SPI communication (SPI/tSPI)Supports 1.8-V, 3.3-V, and 5-V logic inputsBuilt-in 3.3-V ± 4.5%, 100-mA LDO regulatorIntegrated protection featuresVM undervoltage lockout (UVLO)Charge pump undervoltage (CPUV)Overcurrent protection (OCP)Thermal warning and shutdown (OTW/OTSD)Fault condition indication pin (nFAULT)

Description

The DRV8311 provides three integrated MOSFET half-H-bridges for driving a three-phase brushless DC (BLDC) motor for 5-V, 9-V, 12-V, or 18-V DC rails or 1S to 4S battery powered applications. The device integrates three current-sense amplifiers (CSA) with integrated current sense for sensing the three phase currents of BLDC motors to achieve optimum FOC and current-control system implementation. The DRV8311P device provides capability to generate and configure PWM timers over Texas Instruments SPI (tSPI), and allows the control of multiple BLDC motors directly over the tSPI interface. This feature reduces the number of required I/O ports from the primary controller to control multiple motors. The DRV8311 provides three integrated MOSFET half-H-bridges for driving a three-phase brushless DC (BLDC) motor for 5-V, 9-V, 12-V, or 18-V DC rails or 1S to 4S battery powered applications. The device integrates three current-sense amplifiers (CSA) with integrated current sense for sensing the three phase currents of BLDC motors to achieve optimum FOC and current-control system implementation. The DRV8311P device provides capability to generate and configure PWM timers over Texas Instruments SPI (tSPI), and allows the control of multiple BLDC motors directly over the tSPI interface. This feature reduces the number of required I/O ports from the primary controller to control multiple motors.
