PRPC038 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 38POS 2.54MM

Part	Contact Finish Thickness - Post	Connector Type	Contact Finish - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Style	Mounting Type	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Material Flammability Rating	Current Rating (Amps)	Insulation Color	Insulation Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions Loaded	Number of Rows	Contact Length - Mating	Contact Length - Mating	Termination	Contact Type	Contact Length - Post	Contact Length - Post	Shrouding	Overall Contact Length [x]	Overall Contact Length [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length	Overall Contact Length

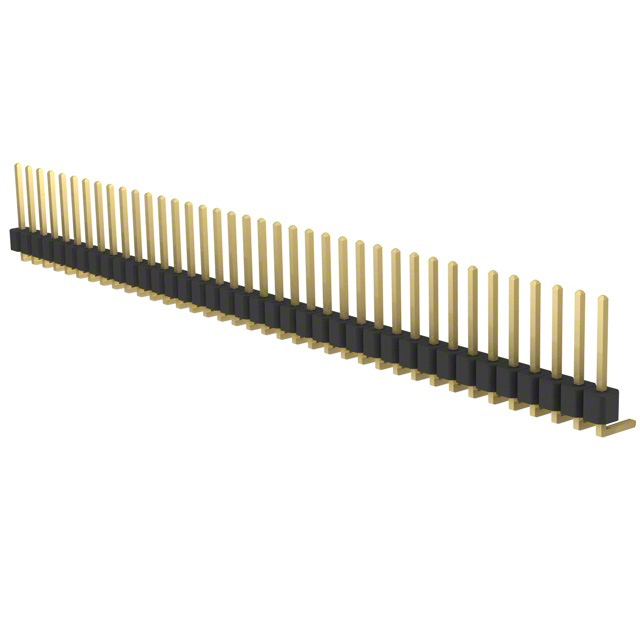

Sullins Connector Solutions PRPC038SGAN-M71RC	Flash	Header Breakaway	Gold	Brass	0.1 "	2.54 mm	Flash	Board to Board Cable	Right Angle Through Hole	Push-Pull	Square	0.098 "	2.5 mm	UL94 V-0	3 A	Black	Polybutylene Terephthalate (PBT)	38	-40 C	105 ░C	Gold	All	1	8.08 mm	0.318 in	Solder	Male Pin	3.05 mm	0.12 in	Unshrouded

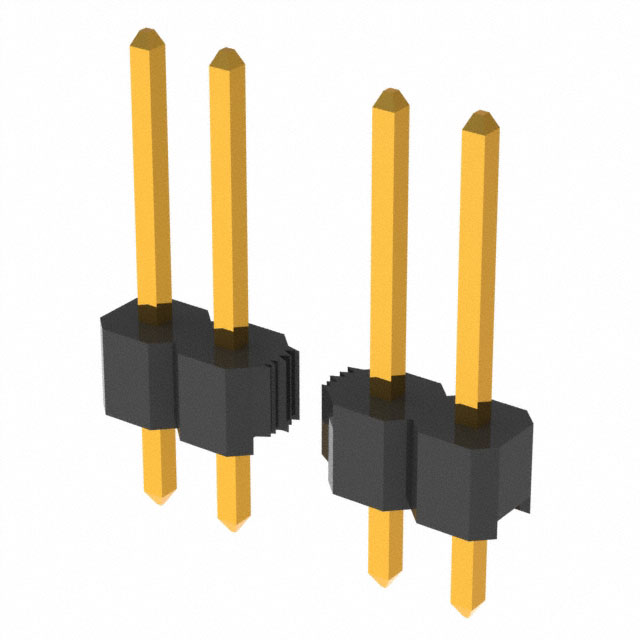

Sullins Connector Solutions PRPC038SFAN-RC	Flash	Header Breakaway	Gold	Brass	0.1 "	2.54 mm	Flash	Board to Board Cable	Through Hole	Push-Pull	Square	0.098 "	2.5 mm	UL94 V-0	3 A	Black	Polybutylene Terephthalate (PBT)	38	-40 C	105 ░C	Gold	All	1	8.08 mm	0.318 in	Solder	Male Pin	3.05 mm	0.12 in	Unshrouded	13.63 mm	0.537 in

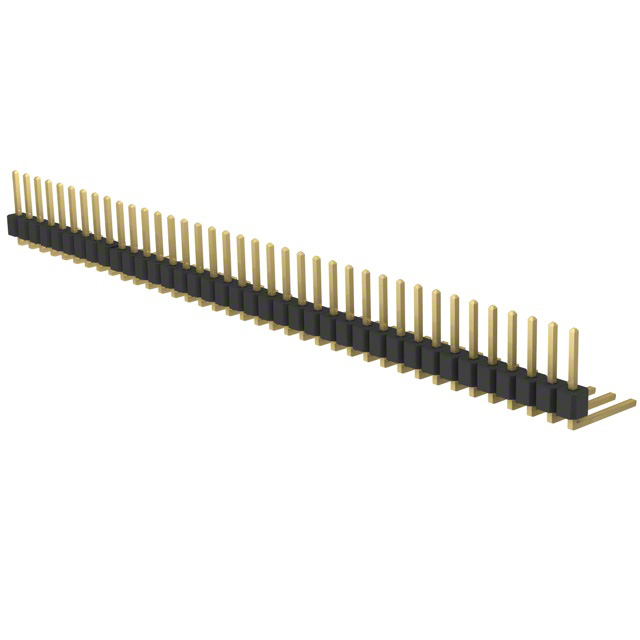

Sullins Connector Solutions PRPC038SBCN-M71RC	Flash	Header Breakaway	Gold	Brass	0.1 "	2.54 mm	Flash	Board to Board Cable	Right Angle Through Hole	Push-Pull	Square	0.098 "	2.5 mm	UL94 V-0	3 A	Black	Polybutylene Terephthalate (PBT)	38	-40 C	105 ░C	Gold	All	1	5.84 mm	0.23 in	Solder	Male Pin	8.13 mm	0.32 in	Unshrouded

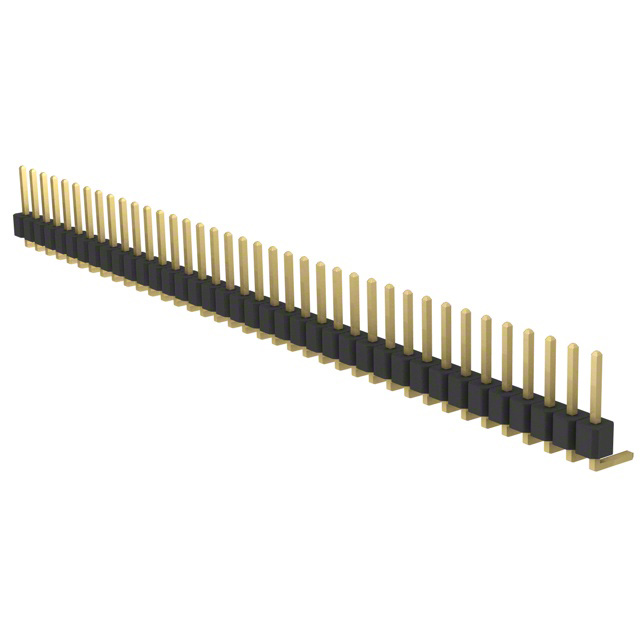

Sullins Connector Solutions PRPC038SBAN-M71RC	Flash	Header Breakaway	Gold	Brass	0.1 "	2.54 mm	Flash	Board to Board Cable	Right Angle Through Hole	Push-Pull	Square	0.098 "	2.5 mm	UL94 V-0	3 A	Black	Polybutylene Terephthalate (PBT)	38	-40 C	105 ░C	Gold	All	1	5.84 mm	0.23 in	Solder	Male Pin	3.05 mm	0.12 in	Unshrouded

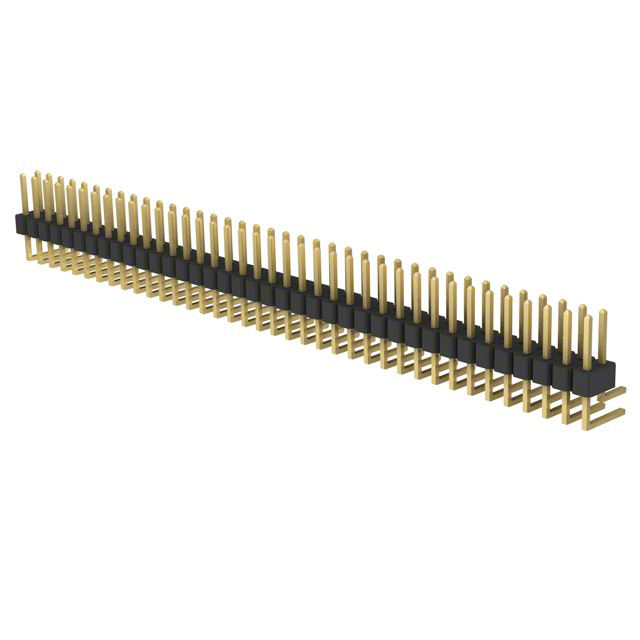

Sullins Connector Solutions PRPC038DBAN-M71RC	Flash	Header Breakaway	Gold	Brass	0.1 "	2.54 mm	Flash	Board to Board Cable	Right Angle Through Hole	Push-Pull	Square	0.197 "	5 mm	UL94 V-0	3 A	Black	Polybutylene Terephthalate (PBT)	76	-40 C	105 ░C	Gold	All		5.84 mm	0.23 in	Solder	Male Pin	3.05 mm	0.12 in	Unshrouded			0.1 in	2.54 mm	2

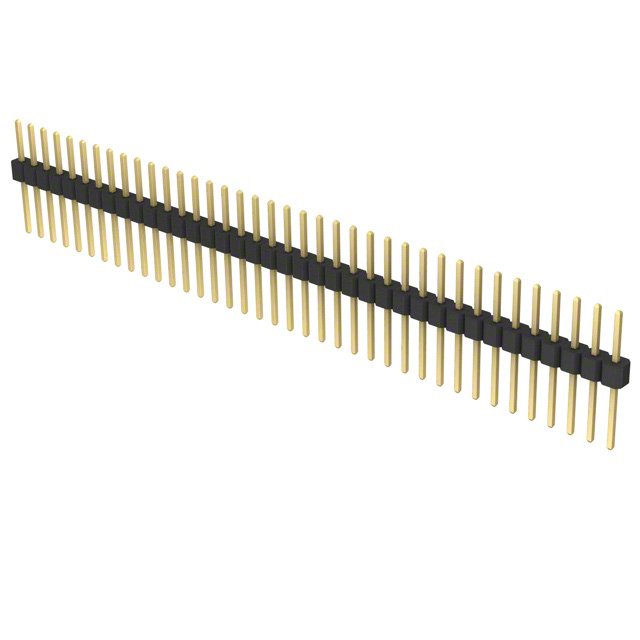

Sullins Connector Solutions PRPC038SACN-RC	Flash	Header Breakaway	Gold	Brass	0.1 "	2.54 mm	Flash	Board to Board Cable	Through Hole	Push-Pull	Square	0.098 "	2.5 mm	UL94 V-0	3 A	Black	Polybutylene Terephthalate (PBT)	38	-40 C	105 ░C	Gold	All	1	5.84 mm	0.23 in	Solder	Male Pin	8.13 mm	0.32 in	Unshrouded	16.47 mm	0.648 in

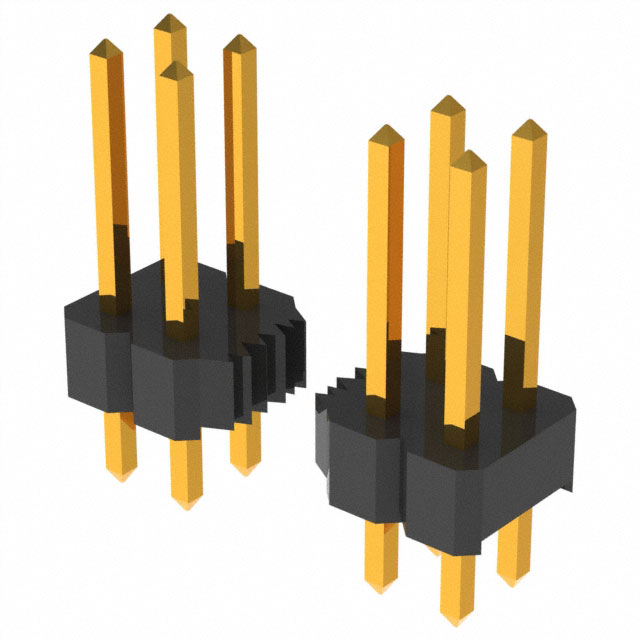

Sullins Connector Solutions PRPC038DFAN-RC	Flash	Header Breakaway	Gold	Brass	0.1 "	2.54 mm	Flash	Board to Board Cable	Through Hole	Push-Pull	Square	0.098 "	2.5 mm	UL94 V-0	3 A	Black	Polybutylene Terephthalate (PBT)	76	-40 C	105 ░C	Gold	All		8.08 mm	0.318 in	Solder	Male Pin	3.05 mm	0.12 in	Unshrouded	13.63 mm	0.537 in	0.1 in	2.54 mm	2
Sullins Connector Solutions PRPC038DABN-RC	Flash	Header Breakaway	Gold	Brass	0.1 "	2.54 mm	Flash	Board to Board Cable	Through Hole	Push-Pull	Square	0.098 "	2.5 mm	UL94 V-0	3 A	Black	Polybutylene Terephthalate (PBT)	76	-40 C	105 ░C	Gold	All		5.84 mm	0.23 in	Solder	Male Pin	5.84 mm	0.23 "	Unshrouded			0.1 in	2.54 mm	2	0.558 in	14.18 mm
