P10522 Series

Catalog

FIT WIRE MANAGEMENT /100 FT /EACH ROHS COMPLIANT: YES

Part	Material Flammability Rating	Liquid Protection	Type Attributes	Wall Thickness	Wall Thickness	Length	Length	Abrasion Protection	Color	Environment Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Heat Protection	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE P10522 BK005	UL 224 VW-1	Oil Resistant	Smooth	0.3 mm	0.012 in	100 '	30.48 m	Abrasion Resistant	Black	Corrosion Resistant UV Resistant	0.64 mm	0.025 in	Solid Tubing	Poly-Vinyl Chloride (PVC)	0.056 in	1.42 mm	Heat Resistant	-20 ░C	105 ░C
ALPHA WIRE P10522 BK001	UL 224 VW-1	Oil Resistant	Smooth	0.3 mm	0.012 in	1000 ft	304.8 m	Abrasion Resistant	Black	Corrosion Resistant UV Resistant	0.64 mm	0.025 in	Solid Tubing	Poly-Vinyl Chloride (PVC)	0.056 in	1.42 mm	Heat Resistant	-20 ░C	105 ░C

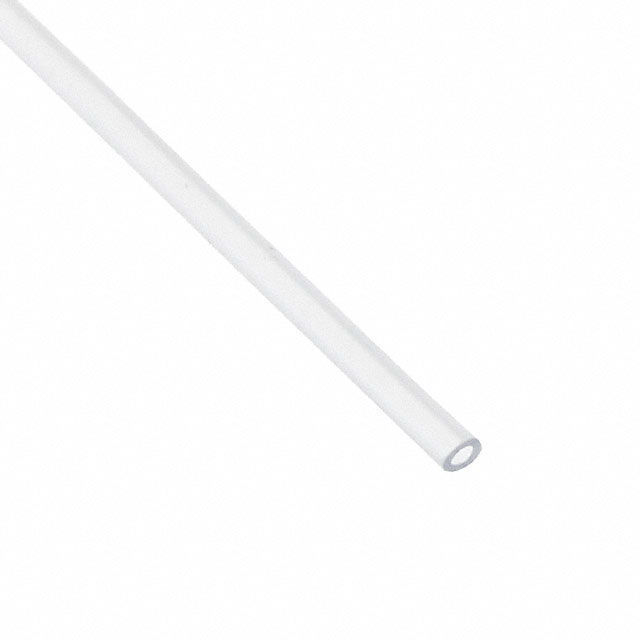

ALPHA WIRE P10522 CL005	UL 224 VW-1	Oil Resistant	Smooth	0.3 mm	0.012 in	100 '	30.48 m	Abrasion Resistant	Clear	Corrosion Resistant UV Resistant	0.64 mm	0.025 in	Solid Tubing	Poly-Vinyl Chloride (PVC)	0.056 in	1.42 mm	Heat Resistant	-20 ░C	105 ░C
