TS0101 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SNAP ACTION SPDT 0.3A 6V
| Part | Current Rating (Amps) | Operating Position | Operating Position | Mechanical Life | Switch Function | Mounting Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Circuit | Actuator Type | Voltage Rating - DC | Electrical Life | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

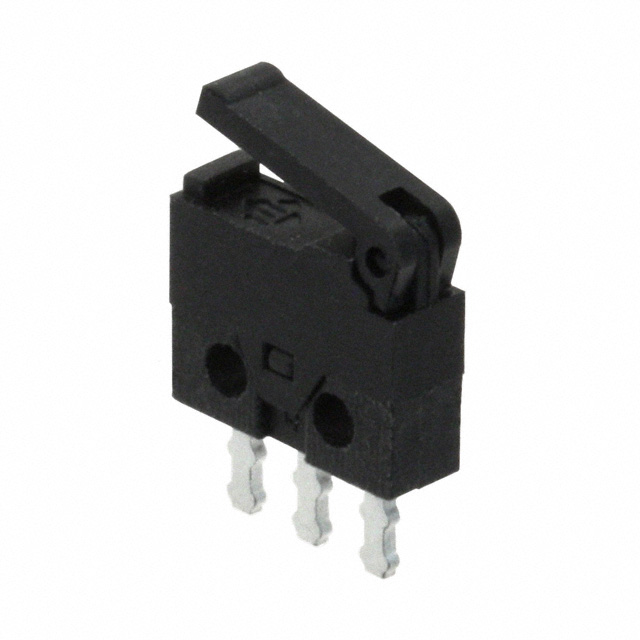

 E-Switch | 300 mA | 6.7 mm | 0.264 in | 100000 Cycles | On-Mom | Through Hole | PC Pin | 85 °C | -25 °C | 20 gf | SPDT | Lever Straight | 6 V | 50000 Cycles | 0.071 " | 1.8 mm |

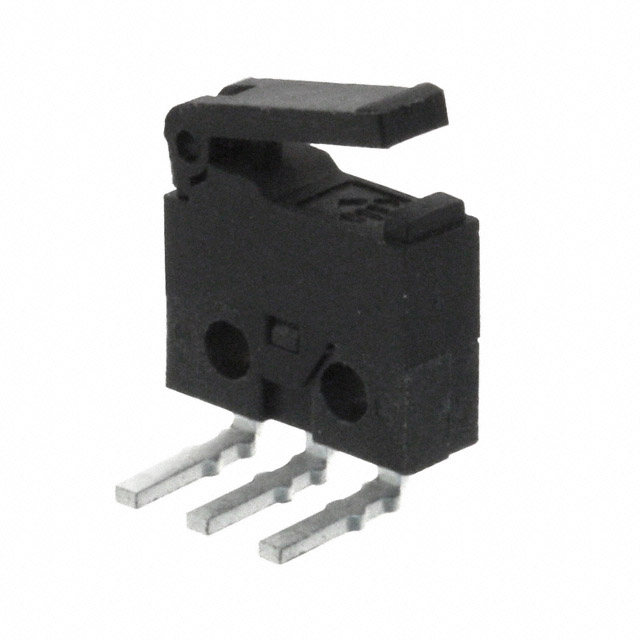

 E-Switch | 300 mA | 6.7 mm | 0.264 in | 100000 Cycles | On-Mom | Right Angle Through Hole | PC Pin | 85 °C | -25 °C | 20 gf | SPDT | Lever Straight | 6 V | 50000 Cycles | 0.071 " | 1.8 mm |

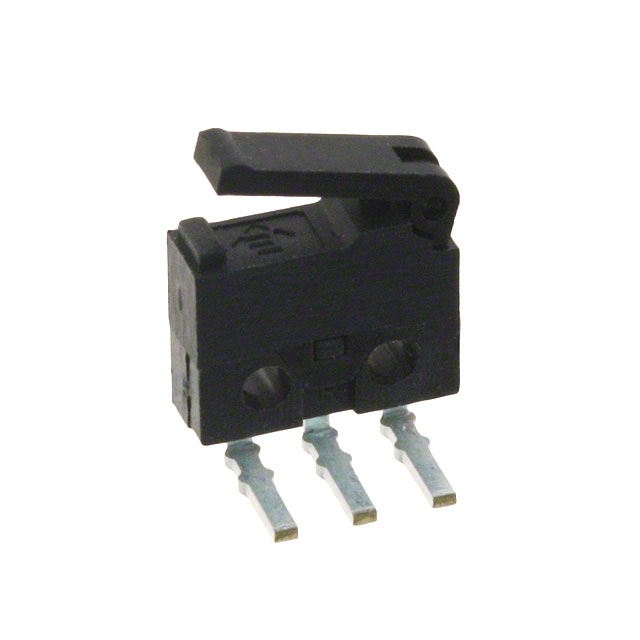

 E-Switch | 300 mA | 6.7 mm | 0.264 in | 100000 Cycles | On-Mom | Right Angle Through Hole | PC Pin | 85 °C | -25 °C | 20 gf | SPDT | Lever Straight | 6 V | 50000 Cycles | 0.071 " | 1.8 mm |
