RBB30 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 60POS 0.050

Part	Material - Insulation	Mounting Type	Gender	Read Out	Number of Positions	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row	Card Type	Contact Finish	Card Thickness	Card Thickness	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Color	Contact Type	Features	Flange Feature [custom]	Flange Feature [custom]
Sullins Connector Solutions RBB30DYFD	Polyphenylene Sulfide (PPS)	Surface Mount	Female	Dual	60	Solder	0.25 Ám	10 Áin	2	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Cantilever
Sullins Connector Solutions RBB30DHBN	Polyphenylene Sulfide (PPS)	Right Angle Through Hole	Female	Dual	60	Solder Staggered	0.25 Ám	10 Áin	2				30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Hairpin Bellows
Sullins Connector Solutions RBB30DHBT	Polyphenylene Sulfide (PPS)	Right Angle Through Hole	Female	Dual	60	Solder Staggered	0.25 Ám	10 Áin	2	4-40 Flush Mount Threaded Insert Top Opening			30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Hairpin Bellows
Sullins Connector Solutions RBB30DHRR	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Female	Dual	60	Solder	0.25 Ám	10 Áin	2				30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Hairpin Bellows	Board Lock Card Extender
Sullins Connector Solutions RBB30DYRQ	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Female	Dual	60	Solder	0.25 Ám	10 Áin	2	Straddle Mount Opening Unthreaded			30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Cantilever	Card Extender	1.98 mm	0.078 "
Sullins Connector Solutions RBB30DHHR	Polyphenylene Sulfide (PPS)	Through Hole	Female	Dual	60	Solder Staggered	0.25 Ám	10 Áin	2				30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Hairpin Bellows	Board Lock

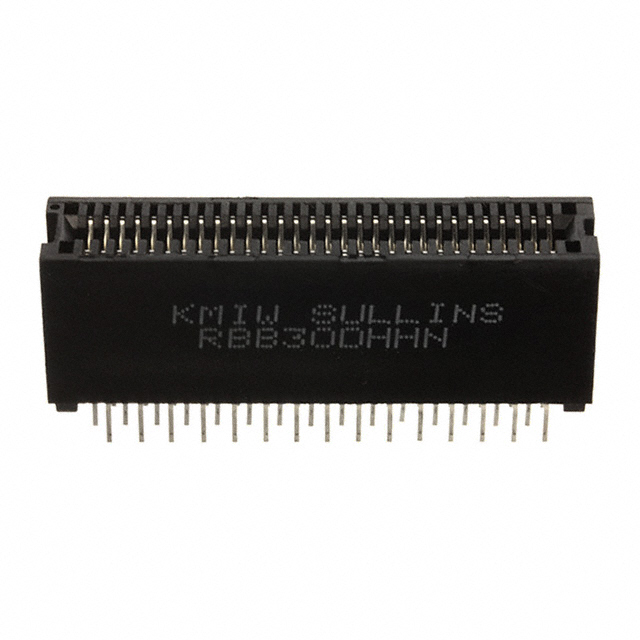

Sullins Connector Solutions RBB30DHHN	Polyphenylene Sulfide (PPS)	Through Hole	Female	Dual	60	Solder Staggered	0.25 Ám	10 Áin	2				30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Hairpin Bellows
Sullins Connector Solutions RBB30DYRR	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Female	Dual	60	Solder	0.25 Ám	10 Áin	2				30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Cantilever	Board Lock Card Extender
Sullins Connector Solutions RBB30DHFD	Polyphenylene Sulfide (PPS)	Surface Mount	Female	Dual	60	Solder	0.25 Ám	10 Áin	2	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Hairpin Bellows
Sullins Connector Solutions RBB30DYFN-S1355	Polyphenylene Sulfide (PPS)	Surface Mount	Female	Dual	60	Solder	0.25 Ám	10 Áin	2				30	Non Specified - Dual Edge	Gold	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	0.05 in	1.27 mm	Black	Cantilever
