5108C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

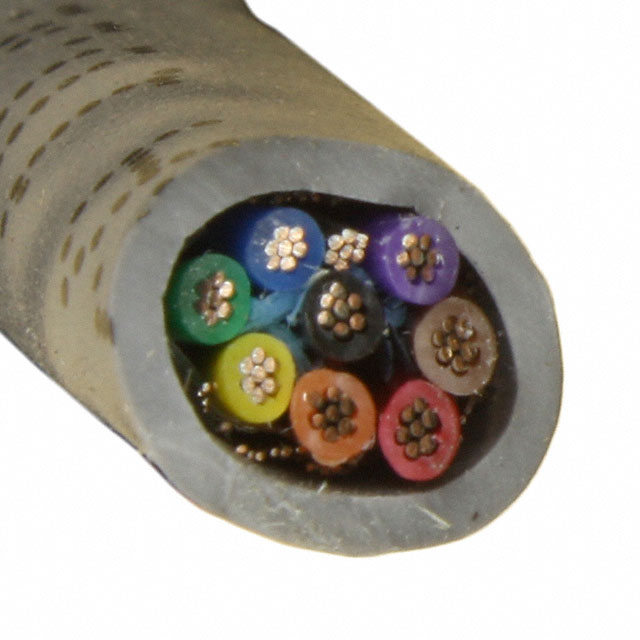

CABLE 8CON 22AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Jacket Color | Conductor Insulation | Number of Conductors [custom] | Conductor Material | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Shield Type | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Features | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | Poly-Vinyl Chloride (PVC) | 8 | Copper Tinned | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Communication Control | Braid Foil | ISO 10993 UL Style 2464 | 30 AWG | 7 | Multi-Conductor | 6.68 mm | 0.263 " | 100 ft | 30.5 m | 0.813 mm | 0.032 in | 22 AWG | Biological Compatibility Drain Wire Rip Cord | 300 VDC | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | Poly-Vinyl Chloride (PVC) | 8 | Copper Tinned | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Communication Control | Braid Foil | ISO 10993 UL Style 2464 | 30 AWG | 7 | Multi-Conductor | 6.68 mm | 0.263 " | 0.813 mm | 0.032 in | 22 AWG | Biological Compatibility Drain Wire Rip Cord | 300 VDC | 152.4 m | 500 ft | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | Poly-Vinyl Chloride (PVC) | 8 | Copper Tinned | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Communication Control | Braid Foil | ISO 10993 UL Style 2464 | 30 AWG | 7 | Multi-Conductor | 6.68 mm | 0.263 " | 0.813 mm | 0.032 in | 22 AWG | Biological Compatibility Drain Wire Rip Cord | 300 VDC | 304.8 m | 1000 ft |
