282858 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLK 7P SIDE ENTRY 10MM PCB

Part	Current	Mounting Type	Screw Material - Plating	Color	Torque - Screw	Torque - Screw	Mating Orientation	Voltage	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level	Pitch [x]	Pitch [x]	Number of Levels	Contact Material - Plating [custom]	Features	Screw Thread	Wire Termination	Clamp Material - Plating
TE Connectivity Raychem Cable Protection 282858-7	24 A	Through Hole	Brass - Nickel Plated	Green	0.79 Nm	7 Lb-In	Horizontal with Board	600 V	30 AWG	12 AWG	7	0.394 in	10 mm	1	Brass - Tin Plated	Interlocking (Side)	M3	Screw - Rising Cage Clamp	Brass - Nickel Plated
TE Connectivity Raychem Cable Protection 282858-6	24 A	Through Hole	Brass - Nickel Plated	Green	0.79 Nm	7 Lb-In	Horizontal with Board	600 V	30 AWG	12 AWG	6	0.394 in	10 mm	1	Brass - Tin Plated	Interlocking (Side)	M3	Screw - Rising Cage Clamp	Brass - Nickel Plated
TE Connectivity Raychem Cable Protection 282858-4	24 A	Through Hole	Brass - Nickel Plated	Green	0.79 Nm	7 Lb-In	Horizontal with Board	600 V	30 AWG	12 AWG	4	0.394 in	10 mm	1	Brass - Tin Plated	Interlocking (Side)	M3	Screw - Rising Cage Clamp	Brass - Nickel Plated

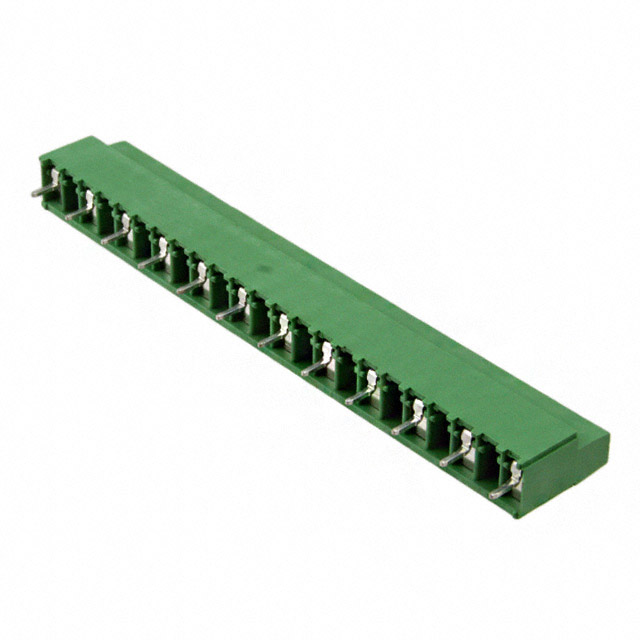

TE Connectivity Raychem Cable Protection 1-282858-2	24 A	Through Hole	Brass - Nickel Plated	Green	0.79 Nm	7 Lb-In	Horizontal with Board	600 V	30 AWG	12 AWG	12	0.394 in	10 mm	1	Brass - Tin Plated	Interlocking (Side)	M3	Screw - Rising Cage Clamp	Brass - Nickel Plated

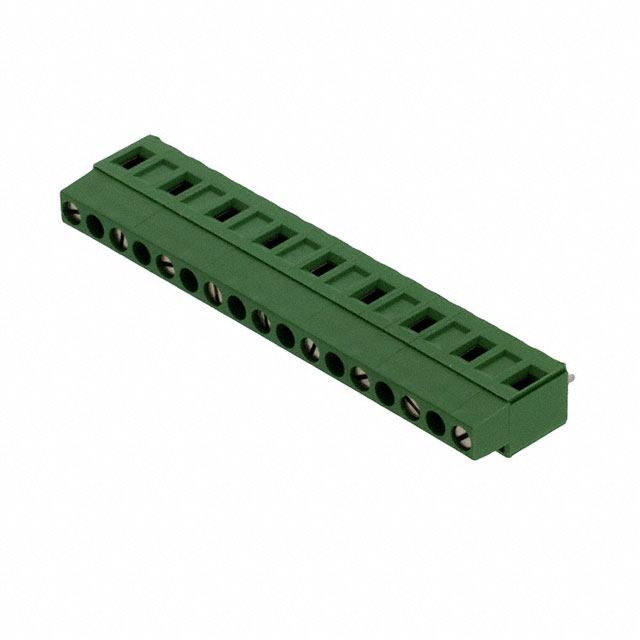

TE Connectivity Raychem Cable Protection 282858-9	24 A	Through Hole	Brass - Nickel Plated	Green	0.79 Nm	7 Lb-In	Horizontal with Board	600 V	30 AWG	12 AWG	9	0.394 in	10 mm	1	Brass - Tin Plated	Interlocking (Side)	M3	Screw - Rising Cage Clamp	Brass - Nickel Plated

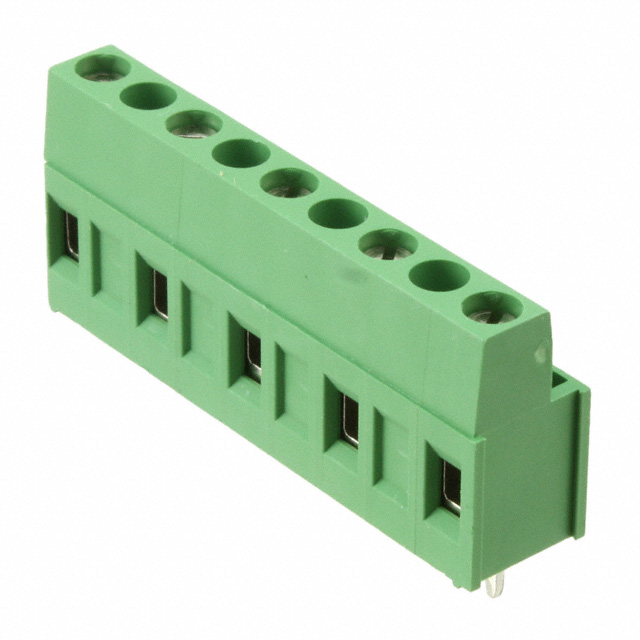

TE Connectivity Raychem Cable Protection 282858-5	24 A	Through Hole	Brass - Nickel Plated	Green	0.79 Nm	7 Lb-In	Horizontal with Board	600 V	30 AWG	12 AWG	5	0.394 in	10 mm	1	Brass - Tin Plated	Interlocking (Side)	M3	Screw - Rising Cage Clamp	Brass - Nickel Plated
