PE827 Series

Catalog

DC BLOCK: SMA-TNC 0.01-3GHZ

Part	Body Finish	Insertion Loss	Center Contact Material	Body Material	Conversion Type	Style	Adapter Type	Adapter Series	Mounting Type	Convert From (Adapter End)	Frequency - Max [Max]	Impedance	Convert To (Adapter End)	Center Contact Plating	Fastening Type	Fastening Type

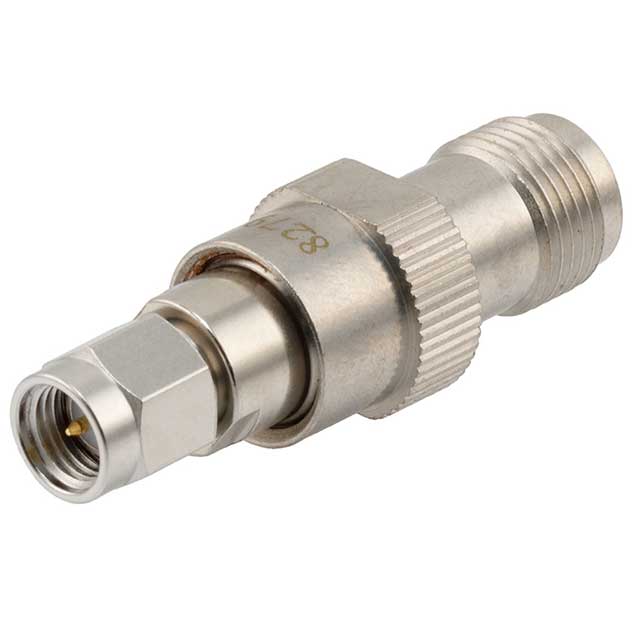

Pasternack PE8279	Tri-Metal	0.2 dB	Bronze	Brass	Between Series	Straight	Plug to Jack	SMA to TNC	Free Hanging (In-Line)	Male Pin SMA Plug	3 GHz	50 Ohms	Female Socket TNC Jack	Gold

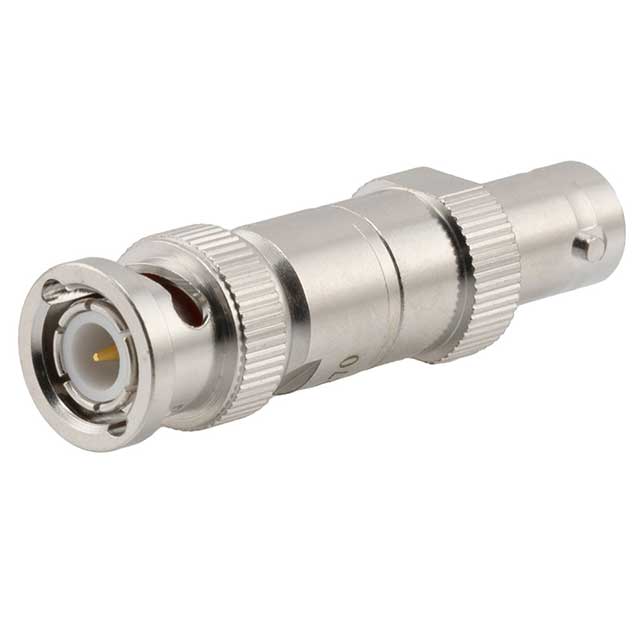

Pasternack PE8270	Tri-Metal	0.2 dB	Bronze	Brass	Same Series	Straight	Plug to Jack	BNC to BNC	Free Hanging (In-Line)	BNC Jack Female Socket	3 GHz	50 Ohms	BNC Plug Male Pin	Gold	Bayonet Lock
Pasternack PE8277	Tri-Metal	0.5 dB	Beryllium Copper	Brass	Between Series	Straight	Plug to Jack		Free Hanging (In-Line)	Male Pin SMA Plug	5 GHz	50 Ohms	N Jack Female Socket	Gold

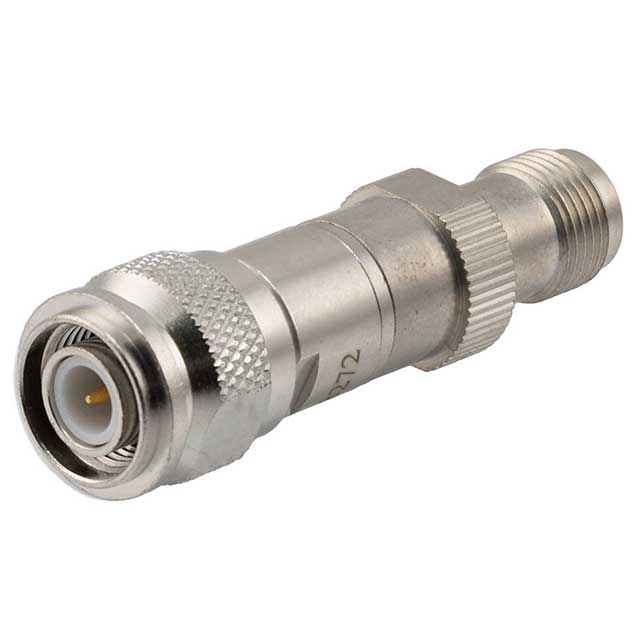

Pasternack PE8272	Tri-Metal	0.2 dB	Brass Bronze	Brass	Same Series	Straight	Plug to Jack	TNC to TNC	Free Hanging (In-Line)	Female Socket TNC Jack	3 GHz	50 Ohms	TNC Plug Male Pin	Gold

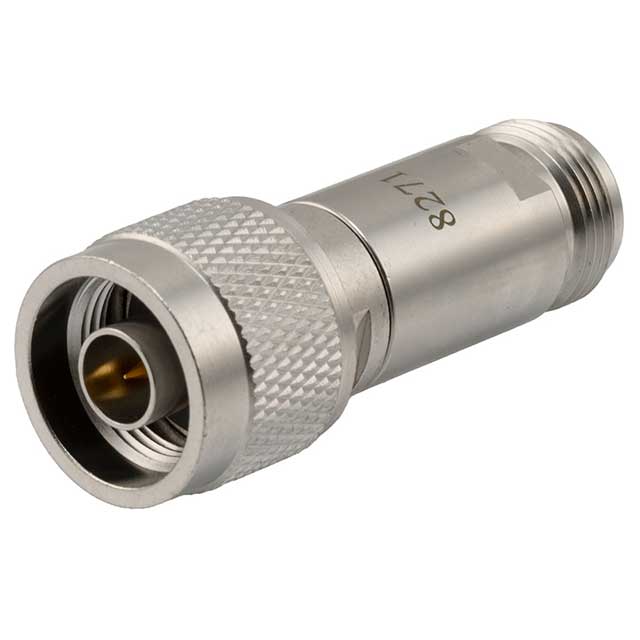

Pasternack PE8271	Tri-Metal	0.5 dB	Beryllium Copper Brass	Brass	Same Series	Straight	Plug to Jack	N to N	Free Hanging (In-Line)	Female Socket N Jack	5 GHz	50 Ohms	N Plug Male Pin	Gold

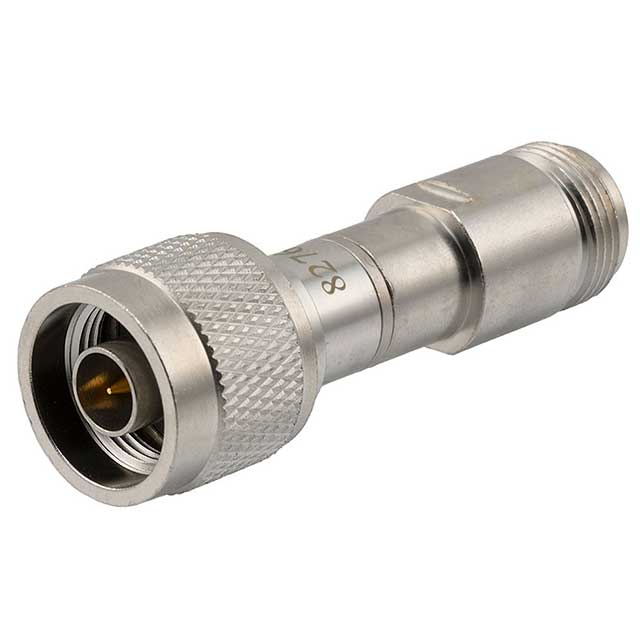

Pasternack PE8276	Tri-Metal	0.2 dB	Beryllium Copper Bronze	Brass	Same Series	Straight	Plug to Jack	N to N	Free Hanging (In-Line)	Female Socket N Jack	1 GHz	50 Ohms	N Plug Male Pin	Gold

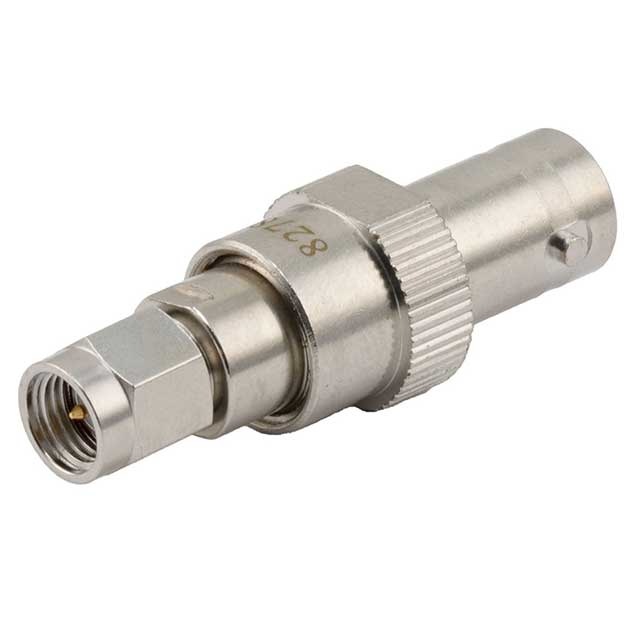

Pasternack PE8278	Tri-Metal	0.2 dB	Bronze	Brass	Between Series	Straight	Plug to Jack	BNC to SMA	Free Hanging (In-Line)	BNC Jack Female Socket	3 GHz	50 Ohms	SMA Plug Male Pin	Gold	Bayonet Lock	Threaded

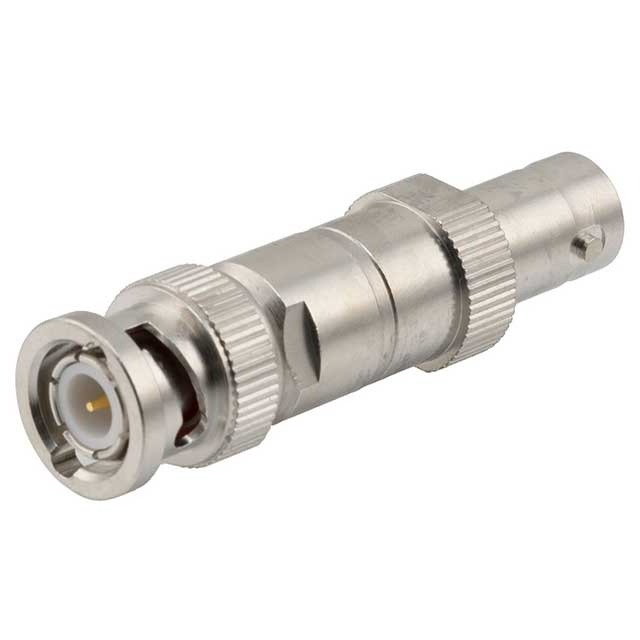

Pasternack PE8274	Tri-Metal	0.2 dB	Brass Bronze	Brass	Same Series	Straight	Plug to Jack	BNC to BNC	Free Hanging (In-Line)	BNC Jack Female Socket	1 GHz	50 Ohms	BNC Plug Male Pin	Gold	Bayonet Lock

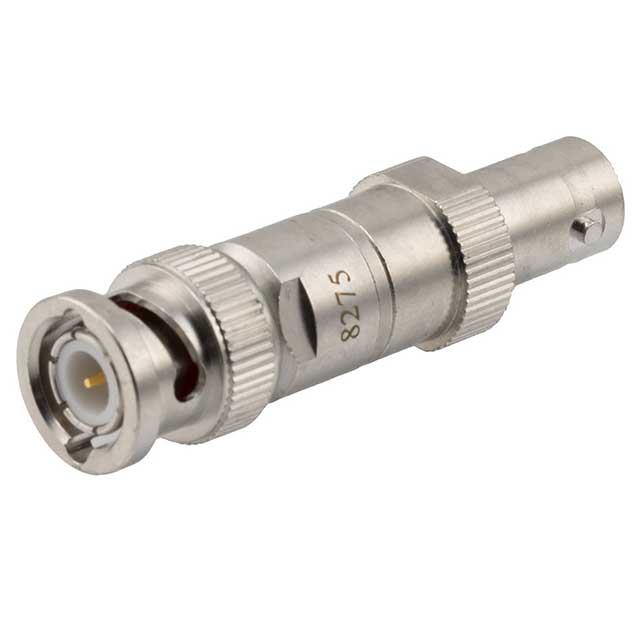

Pasternack PE8275	Tri-Metal	0.2 dB	Brass Bronze	Brass	Same Series	Straight	Plug to Jack	BNC to BNC	Free Hanging (In-Line)	BNC Jack Female Socket	1 GHz	50 Ohms	BNC Plug Male Pin	Gold	Bayonet Lock

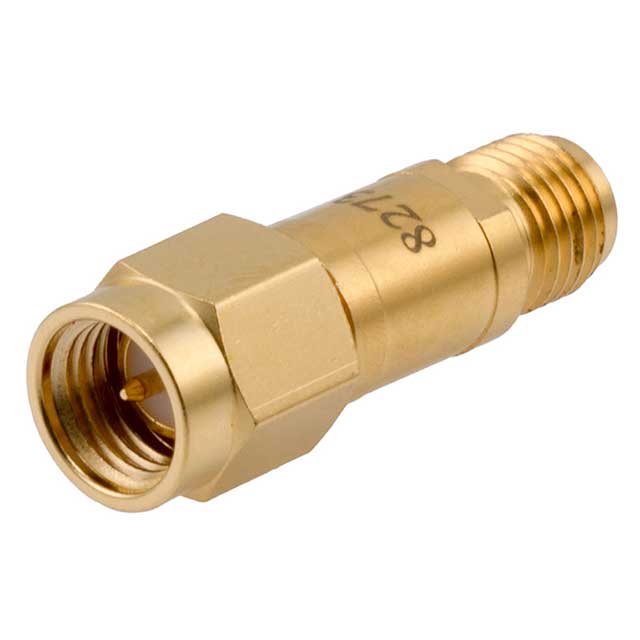

Pasternack PE8273	Tri-Metal	0.6 dB	Brass	Brass	Same Series	Straight	Plug to Jack	SMA to SMA	Free Hanging (In-Line)	Female Socket SMA Jack	18.5 GHz	50 Ohms	SMA Plug Male Pin	Gold
