745-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 30POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows [custom]	Read Out	Number of Positions	Card Type	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Finish	Number of Positions/Bay/Row	Contact Material	Termination Rows	Number of Rows
EDAC Inc. 745-030-545-201	2	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	-40 C	105 ░C	Black	Press-Fit	30 Áin	0.76 Ám	Through Hole	2	Dual	30	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	15	Copper Alloy

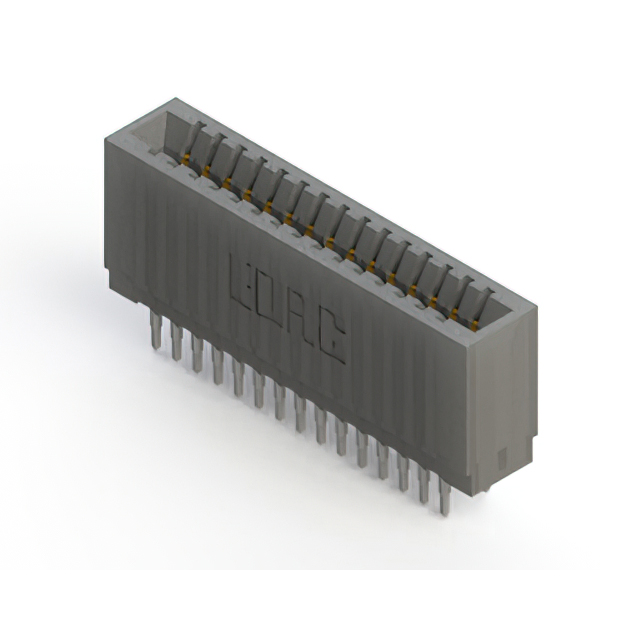

EDAC Inc. 745-030-560-201	2	Polyester Thermoplastic	Cantilever Make Before Break	0.1 "	2.54 mm	-40 C	105 ░C	Black	Press-Fit	30 Áin	0.76 Ám	Through Hole	2	Dual	30	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	15	Copper Alloy

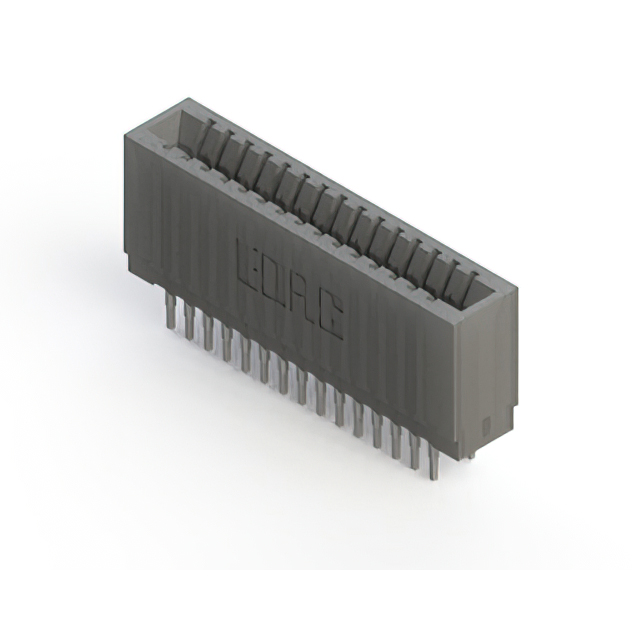

EDAC Inc. 745-030-522-201	2	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	-40 C	105 ░C	Black	Press-Fit	30 Áin	0.76 Ám	Through Hole	2	Dual	30	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	15	Copper Alloy
EDAC Inc. 745-030-522-206	2	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	-40 C	105 ░C	Black	Press-Fit	30 Áin	0.76 Ám	Through Hole	2	Dual	30	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	15	Copper Alloy

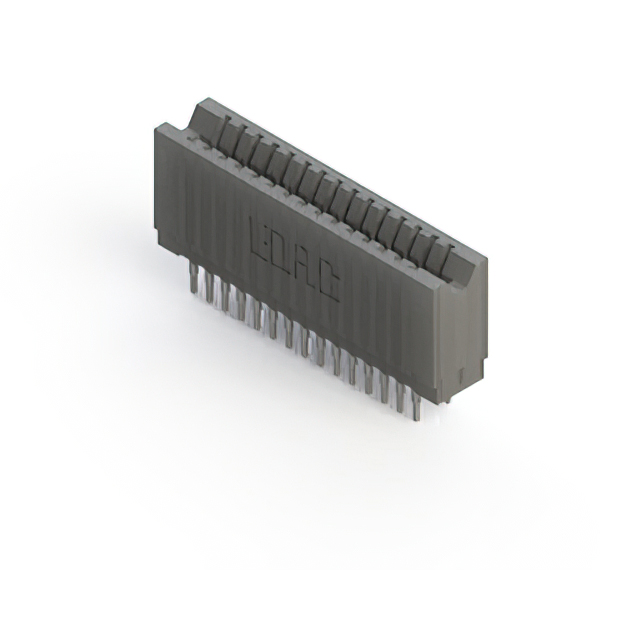

EDAC Inc. 745-030-541-206	2	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	-40 C	105 ░C	Black	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Through Hole	2	Dual	30	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	15	Copper Alloy
EDAC Inc. 745-030-540-206	2	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	-40 C	105 ░C	Black	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Through Hole	2	Dual	30	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	15	Copper Alloy
EDAC Inc. 745-030-545-206	2	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	-40 C	105 ░C	Black	Press-Fit	30 Áin	0.76 Ám	Through Hole	2	Dual	30	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	15	Copper Alloy

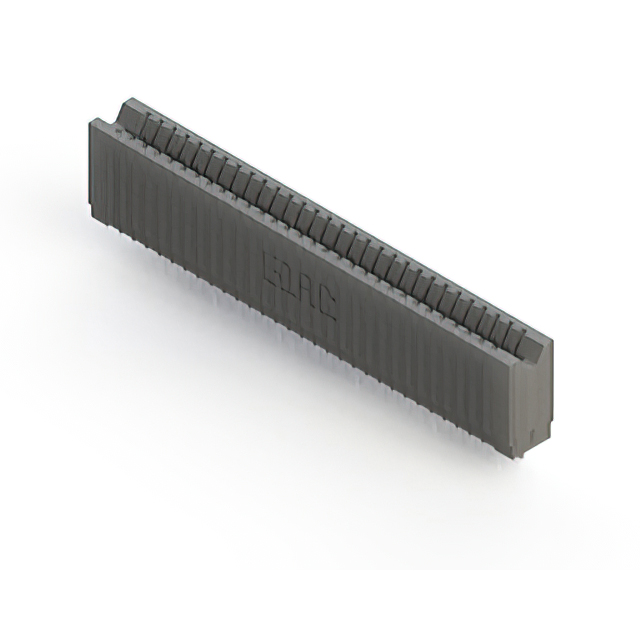

EDAC Inc. 745-030-540-106		Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	-40 C	105 ░C	Black	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Through Hole		Single	30	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	30	Copper Alloy	1	1

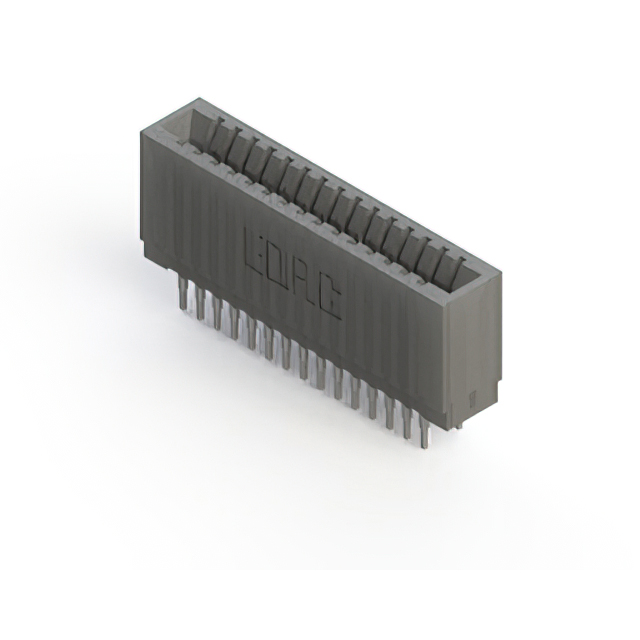

EDAC Inc. 745-030-540-201	2	Polyester Thermoplastic	Cantilever	0.1 "	2.54 mm	-40 C	105 ░C	Black	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Through Hole	2	Dual	30	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	15	Copper Alloy
