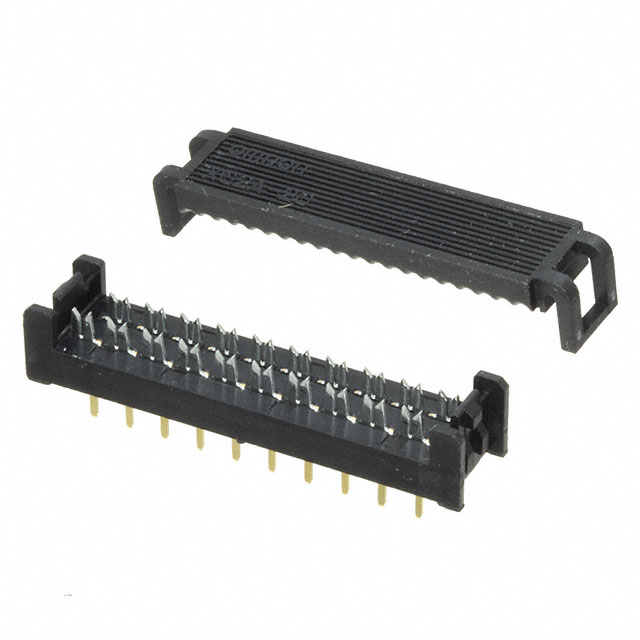

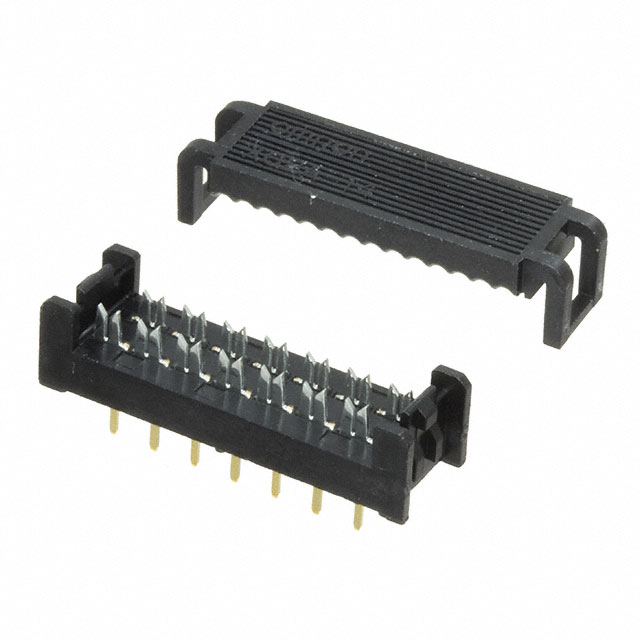

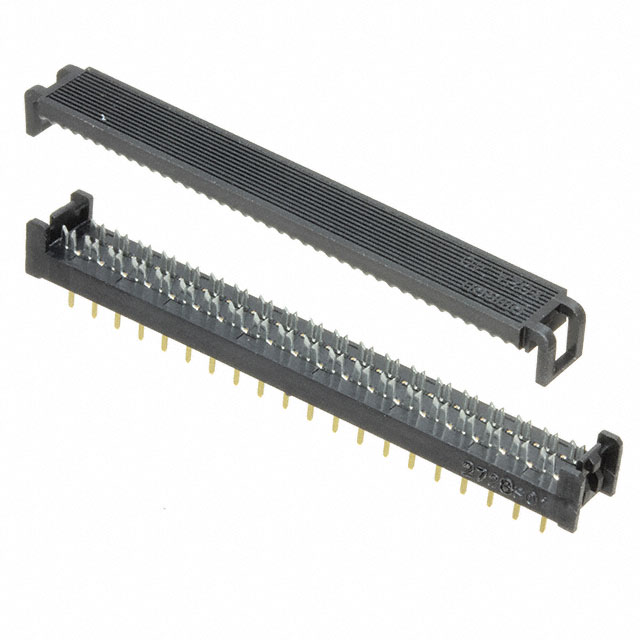

XG2A Series

Catalog

CONN DIP HDR IDC 40P 28AWG VERT

Part	Number of Positions Loaded	Color	Cable Termination	Board-Side Pitch	Board-Side Pitch	Row Spacing	Row Spacing	Number of Positions	Features	Wire Gauge	Connector Type	Cable Pitch	Cable Pitch	Mounting Type	Contact Finish	Number of Rows [custom]	Number of Positions [custom]
Omron Electronics Inc-EMC Div XG2A-4002	All	Black	IDC	2.54 mm	0.1 "	2.54 mm	0.1 "	40	Feed Through	28 AWG	DIP Header Ribbon Cable	1.27 mm	0.05 in	Through Hole	Tin	2
Omron Electronics Inc-EMC Div XG2A-3402	All	Black	IDC	2.54 mm	0.1 "	2.54 mm	0.1 "		Feed Through	28 AWG	DIP Header Ribbon Cable	1.27 mm	0.05 in	Through Hole	Tin	2	34
Omron Electronics Inc-EMC Div XG2A-6002	All	Black	IDC	2.54 mm	0.1 "	2.54 mm	0.1 "	60	Feed Through	28 AWG	DIP Header Ribbon Cable	1.27 mm	0.05 in	Through Hole	Tin	2
Omron Electronics Inc-EMC Div XG2A-1401	All	Black	IDC	2.54 mm	0.1 "	2.54 mm	0.1 "	14	Feed Through	28 AWG	DIP Header Ribbon Cable	1.27 mm	0.05 in	Through Hole	Tin	2
Omron Electronics Inc-EMC Div XG2A-6001	All	Black	IDC	2.54 mm	0.1 "	2.54 mm	0.1 "	60	Feed Through	28 AWG	DIP Header Ribbon Cable	1.27 mm	0.05 in	Through Hole	Tin	2
Omron Electronics Inc-EMC Div XG2A-2001	All	Black	IDC	2.54 mm	0.1 "	2.54 mm	0.1 "	20	Feed Through	28 AWG	DIP Header Ribbon Cable	1.27 mm	0.05 in	Through Hole	Tin	2
Omron Electronics Inc-EMC Div XG2A-3002	All	Black	IDC	2.54 mm	0.1 "	2.54 mm	0.1 "	30	Feed Through	28 AWG	DIP Header Ribbon Cable	1.27 mm	0.05 in	Through Hole	Tin	2

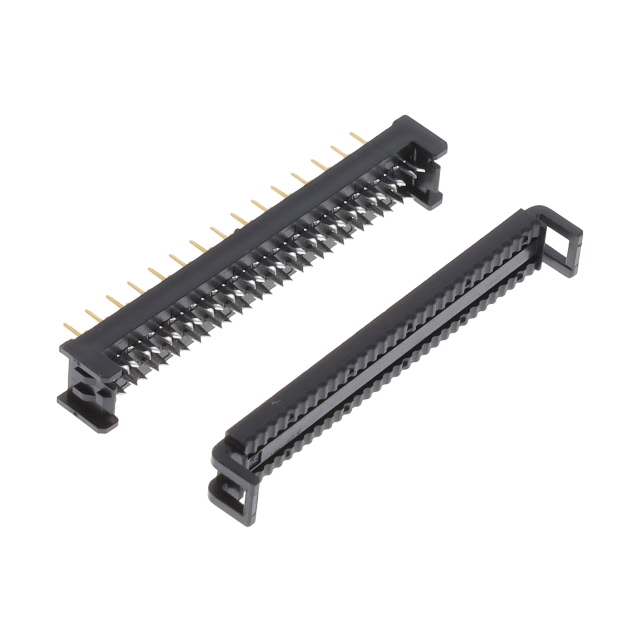

Omron Electronics Inc-EMC Div XG2A-3001	All	Black	IDC	2.54 mm	0.1 "	2.54 mm	0.1 "	30	Feed Through	28 AWG	DIP Header Ribbon Cable	1.27 mm	0.05 in	Through Hole	Tin	2
