MW170KB0503 Series

Catalog

AC/DC DESKTOP ADAPTER 5V 10W

Part	Efficiency	No Load Power Consumption	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power (Watts)	Form	Input Connector	Voltage - Output	Input Type	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Approval Agency	Current - Output (Max) [Max]

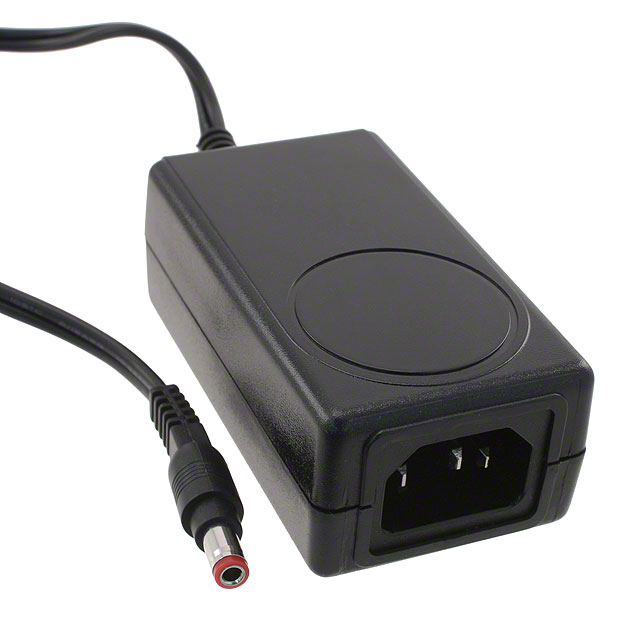

SL POWER / Advanced Energy MW170KB0503F01	Level IV	500 mW	1.26 "	33 mm	3.3 "	46 mm	1.81 in	84.6 mm	Positive Center	100 VAC	240 VAC	40 °C	0 °C	Medical	10 W	Desktop (Class I)	IEC 320-C14	5 V	Cord (Sold Separately)	1.5 m	59 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	International	CE cULus	2 A

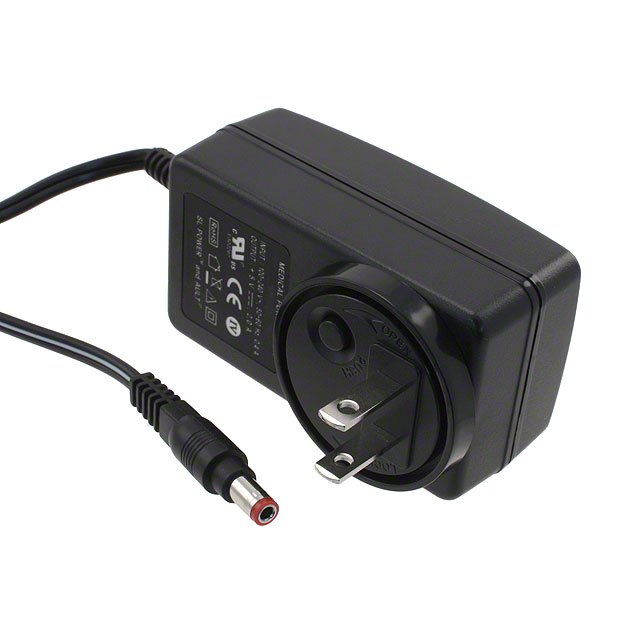

SL POWER / Advanced Energy MW170KB0503B01	Level IV	500 mW	1.26 "	33 mm	3.3 "	46 mm	1.81 in	84.6 mm	Positive Center	100 VAC	240 VAC	40 °C	0 °C	Medical	10 W	Wall Mount	NEMA 1-15P Multi-Blade	5 V	Fixed Blade Multi-Blade	1.5 m	59 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	North America	CE cULus	2 A
