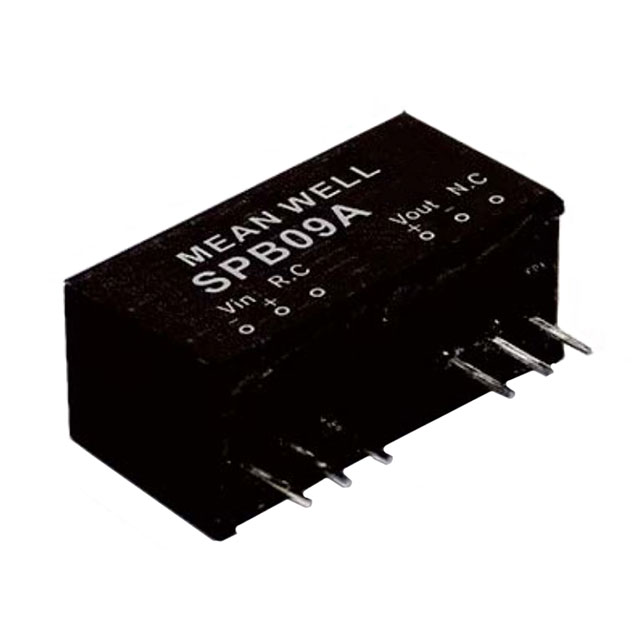

SPB09B Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER
| Part | Type | Voltage - Isolation | Number of Outputs | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Power (Watts) | Mounting Type | Current - Output (Max) [Max] | Voltage - Output 1 | Applications | Package / Case | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Isolated Module | 1.5 kV | 1 | CE EAC UKCA | 0.44 in | 0.94 " | 0.38 in | 36 V | 6.6 W | Through Hole | 2 A | 3.3 V | ITE (Commercial) | 8-DIP Module 6 Leads | Remote On/Off | 90 °C | -40 °C | 18 V | |
MEAN WELL USA Inc. | Isolated Module | 1.5 kV | 1 | CE EAC UKCA | 0.44 in | 0.94 " | 0.38 in | 36 V | 8 W | Through Hole | 1.6 A | 5 V | ITE (Commercial) | 8-DIP Module 6 Leads | Remote On/Off | 90 °C | -40 °C | 18 V | 85 % |
MEAN WELL USA Inc. | Isolated Module | 1.5 kV | 1 | CE EAC UKCA | 0.44 in | 0.94 " | 0.38 in | 36 V | 9 W | Through Hole | 750 mA | 12 V | ITE (Commercial) | 8-DIP Module 6 Leads | Remote On/Off | 90 °C | -40 °C | 18 V | 88 % |
