1064-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

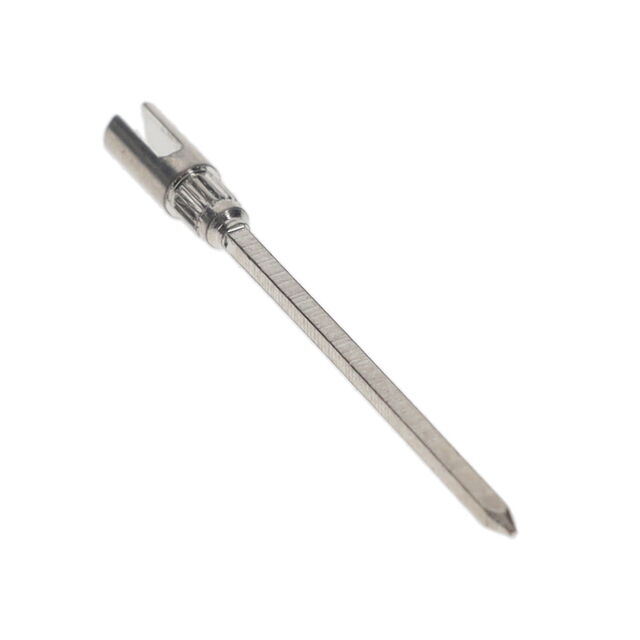

CONN PC PIN CIRC 0.072DIA GOLD
| Part | Terminal Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Length - Overall [x] | Length - Overall [x] | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Mounting Hole Diameter | Mounting Hole Diameter | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Insulation | Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | PC Pin | 0.072 " | 1.83 mm | Brass Alloy | 0.81 " | 20.57 mm | Single End Slotted | 0.68 " | 17.27 mm | Through Hole | 1.42 mm | 0.056 " | 1.83 mm | 0.072 in | Non-Insulated | Knurled Press-Fit Wire Wrap | Gold | 0.25 Ám | 10 Áin | 3.3 mm | 0.13 in |
 Mill-Max Manufacturing Corp. | PC Pin | 0.072 " | 1.83 mm | Brass Alloy | 0.81 " | 20.57 mm | Single End Slotted | 0.68 " | 17.27 mm | Through Hole | 1.42 mm | 0.056 " | 1.83 mm | 0.072 in | Non-Insulated | Knurled Press-Fit Wire Wrap | Tin-Lead | 5.08 Ám | 200 Áin | 3.3 mm | 0.13 in |
