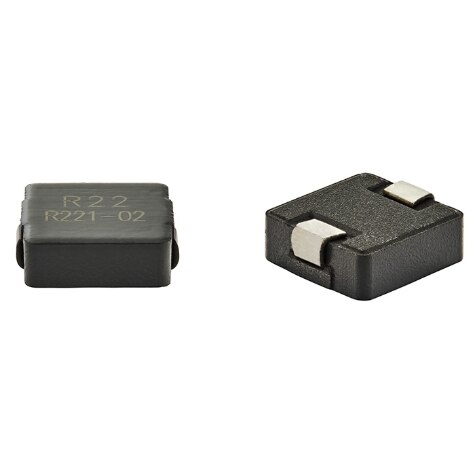

SCIHP Series

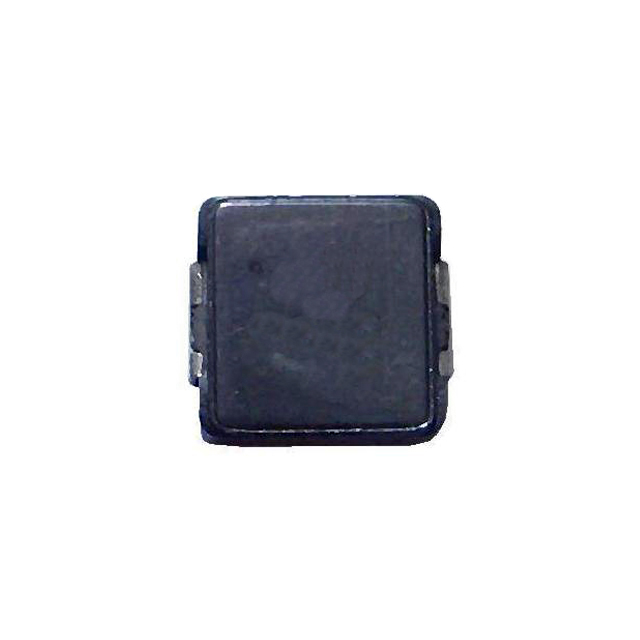

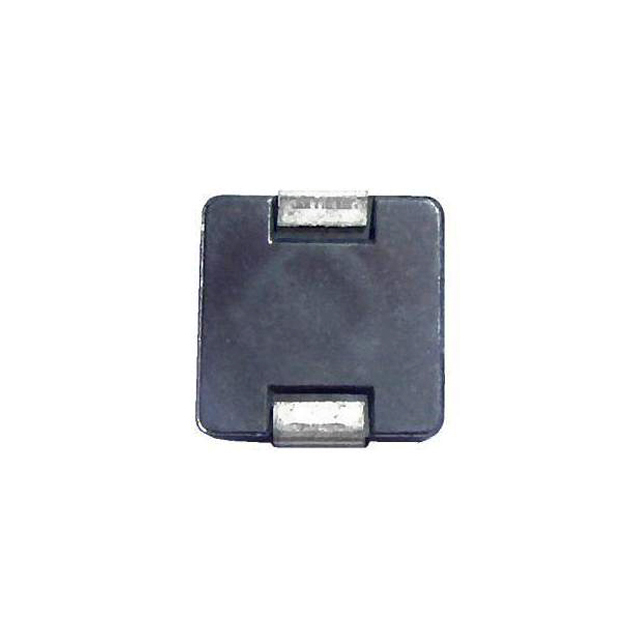

Power Inductors - SMD Inductor SMD 4.70uH 8A 40mohms 200KHz
Manufacturer: Signal Transformer
Catalog
Power Inductors - SMD Inductor SMD 4.70uH 8A 40mohms 200KHz
Beta
⌘K
Power Inductors - SMD Inductor SMD 4.70uH 8A 40mohms 200KHz
Power Inductors - SMD Inductor SMD 4.70uH 8A 40mohms 200KHz
Power Inductors - SMD Inductor SMD 4.70uH 8A 40mohms 200KHz
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current Rating (Amps) | DC Resistance (DCR) | Mounting Type | Tolerance | Current - Saturation (Isat) | Type | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | DC Resistance (DCR) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Signal Transformer | 0.268 " | 7.3 mm | 6.8 mm | 0.287 " | 200 kHz | Shielded | 0.118 " | 3 mm | 5 A | 40 mOhm | Surface Mount | 20 % | 8 A | Wirewound | Nonstandard | -55 C | 125 °C | 4.7 ÁH | ||||
 Signal Transformer | 0.268 " | 7.3 mm | 6.8 mm | 0.287 " | 200 kHz | Shielded | 3 A | Surface Mount | 20 % | 5.5 A | Wirewound | Nonstandard | -55 C | 125 °C | 4.7 ÁH | 78 mOhm | 1.8 mm | 0.071 in | ||||
 Signal Transformer | 0.508 in | 13.8 mm | 0.543 " | 200 kHz | Shielded | 18 A | Surface Mount | 20 % | 35 A | Wirewound | Nonstandard | -55 C | 125 °C | 1.5 µH | 4.3 mOhm | 5 mm | 0.197 in | 12.9 mm |
