BU-P3770 Series
Manufacturer: Mueller Electric Co
Beta
⌘K
BINDING POST, 15 A, 2.5 KV, GOLD PLATED CONTACTS, PANEL MOUNT, BLACK
| Part | Cross Hole Diameter | Cross Hole Diameter | Head Size [diameter] | Head Size [diameter] | Material - Insulation | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Voltage Rating | Current Rating (Amps) | Material - Body | Type | Plating - Body | Color | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | 2.43 mm | 0.096 in | 0.44 " | 11.18 mm | Polycarbonate (PC) | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 2500 V | 15 A | Copper | Standard | Gold | Black | Threaded and Turret |

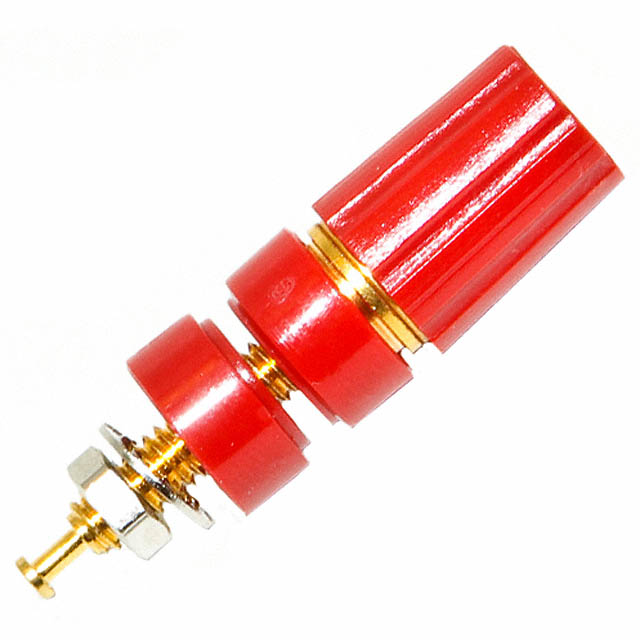

 Mueller Electric Co | 2.43 mm | 0.096 in | 0.44 " | 11.18 mm | Polycarbonate (PC) | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 2500 V | 15 A | Copper | Standard | Gold | Red | Threaded and Turret |
