CFM40M480 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K

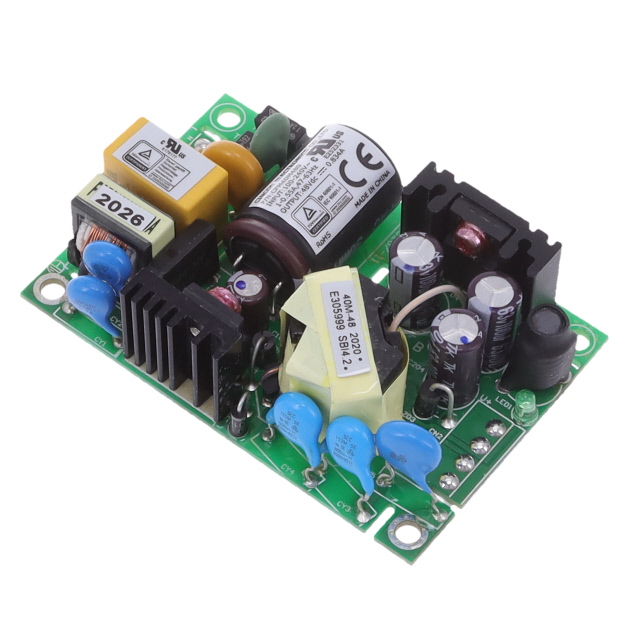

AC/DC CONVERTER 48V 40W
| Part | Load Regulation | Line Regulation | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Output 1 | Type | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Package / Case | Approval Agency | Current - Output (Max) [Max] | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | ±1% | 0.5 % | 60601-1 60950-1 | 70 °C | -20 °C | 88 % | 48 V | Open Frame | ITE (Commercial) Medical | 264 VAC | 90 VAC | 1 | 6-DIP Module | CE cURus FCC TUV | 834 mA | 40 W | 76.2 mm | 0.98 in | 3 " | 50.8 mm | 25 mm | 2 in | Through Hole | Universal Input |
