ECMA-C Series

Manufacturer: Delta Electronics/Industrial Automation

Catalog

SERVOMOTOR 3000 RPM 220V

Part	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Type	Operating Temperature [Max]	Voltage - Rated	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Function	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Features	RPM	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Encoder Type	Termination Style	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Power - Rated	Length - Shaft and Bearing	Length - Shaft and Bearing	Size / Dimension [x]	Size / Dimension [y]
Delta Electronics/Industrial Automation ECMA-C20401SS	CE cURus	40 mm	1.575 "	Square	1.575 in	40 mm	0.315 in	8 mm	AC Motor	40 °C	220 VAC	1.811 in	46 mm	Servomotor	45.32 oz-in	320 mNm	Brake Key Oil Seal	3000 RPM	0.984 in	25 mm	Incremental	Cable with Connector	960 mNm	135.9 oz-in	100 W

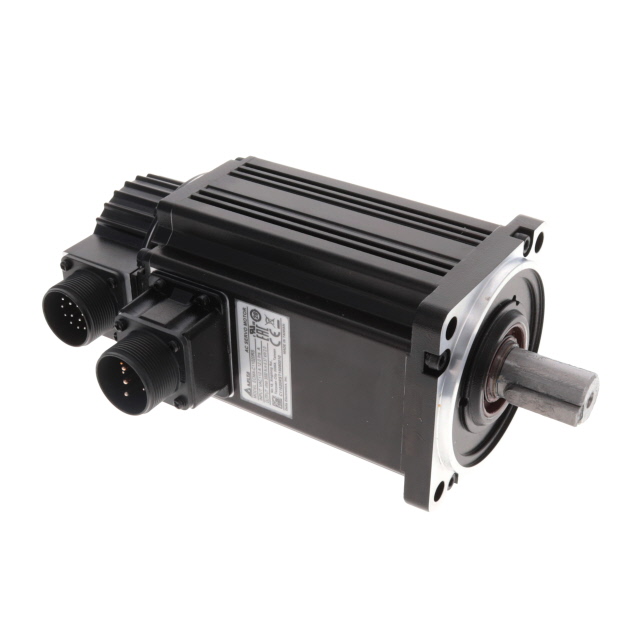

Delta Electronics/Industrial Automation ECMA-C11020RS	CE cURus	100 mm	3.937 "		3.937 "	100 mm	0.866 in	22 mm	AC Motor	40 °C	220 VAC			Servomotor	902.1 oz-in	6370 mNm	Key Oil Seal	3000 RPM	1.772 in	45 mm	Incremental	Cable with Connector	19110 mNm	2706 oz-in	2 kW

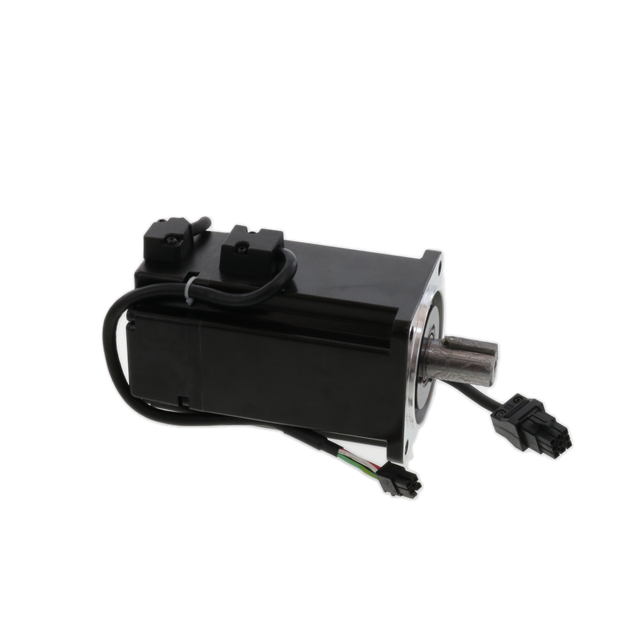

Delta Electronics/Industrial Automation ECMA-C10807RS	CE cURus	80 mm	3.15 in	Square	3.15 "	80 mm	0.748 in	19 mm	AC Motor	40 °C	220 VAC	3.543 in	90 mm	Servomotor	338.5 oz-in	2390 mNm	Key Oil Seal	3000 RPM	1.378 "	35 mm	Incremental	Cable with Connector	7160 mNm	1014 oz-in
Delta Electronics/Industrial Automation ECMA-C21010RS	CE cURus	100 mm	3.937 "		3.937 "	100 mm	0.866 in	22 mm	AC Motor	40 °C	220 VAC			Servomotor	450.3 oz-in	3180 mNm	Key Oil Seal	3000 RPM	1.772 in	45 mm	Incremental	Cable with Connector	9540 mNm	1351 oz-in	1000 W
Delta Electronics/Industrial Automation ECMA-C11010RS	CE cURus	100 mm	3.937 "		3.937 "	100 mm	0.866 in	22 mm	AC Motor	40 °C	220 VAC			Servomotor	450.3 oz-in	3180 mNm	Key Oil Seal	3000 RPM	1.772 in	45 mm	Incremental	Cable with Connector	9540 mNm	1351 oz-in	1000 W
Delta Electronics/Industrial Automation ECMA-CA1020SS	CE cURus	100 mm	3.937 "		3.937 "	100 mm	0.866 in	22 mm	AC Motor	40 °C	220 VAC			Servomotor	902.1 oz-in	6370 mNm	Brake Key Oil Seal	3000 RPM	1.772 in	45 mm	Absolute	Cable with Connector	19110 mNm	2706 oz-in	2 kW
Delta Electronics/Industrial Automation ECMA-C21020SS	CE cURus	100 mm	3.937 "		3.937 "	100 mm	0.866 in	22 mm	AC Motor	40 °C	220 VAC			Servomotor	902.1 oz-in	6370 mNm	Brake Key Oil Seal	3000 RPM	1.772 in	45 mm	Incremental	Cable with Connector	19110 mNm	2706 oz-in	2 kW

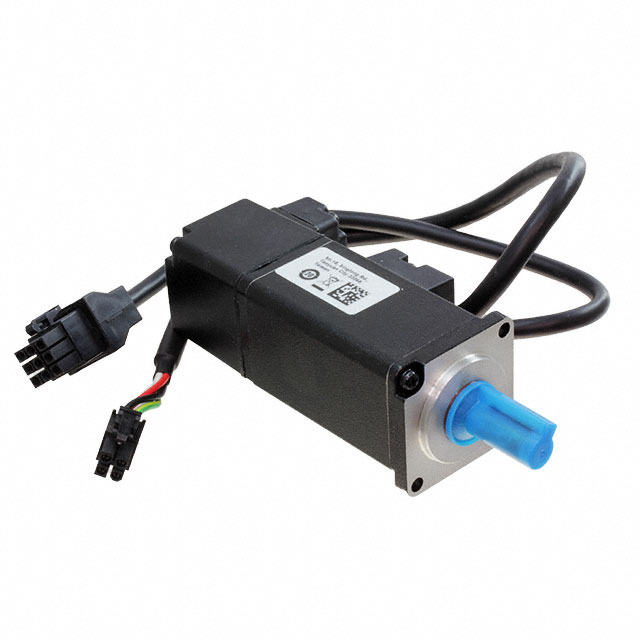

Delta Electronics/Industrial Automation ECMA-C10401RS	CE cURus	40 mm	1.575 "	Square	1.575 in	40 mm	0.315 in	8 mm	AC Motor	40 °C	220 VAC	1.811 in	46 mm	Servomotor	45.32 oz-in	320 mNm	Key Oil Seal	3000 RPM	0.984 in	25 mm	Incremental	Cable with Connector	960 mNm	135.9 oz-in	100 W
Delta Electronics/Industrial Automation ECMA-C20602SS	CE cURus	60 mm				60 mm	0.551 in	14 mm	AC Motor	40 °C	220 VAC	2.756 in	70 mm	Servomotor	90.65 oz-in	640 mNm	Brake Key Oil Seal	3000 RPM			Incremental	Cable with Connector	1920 mNm	271.9 oz-in	200 W	1.181 in	30 mm	2.362 in	2.362 in
Delta Electronics/Industrial Automation ECMA-CA0807SS	CE cURus	80 mm	3.15 in	Square	3.15 "	80 mm	0.748 in	19 mm	AC Motor	40 °C	220 VAC	3.543 in	90 mm	Servomotor	338.5 oz-in	2390 mNm	Brake Key Oil Seal	3000 RPM	1.378 "	35 mm	Absolute	Cable with Connector	7160 mNm	1014 oz-in
