- Series

Manufacturer: DITEL

Catalog

PROCESS/TEMPERATURE METER, 1/8

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Range	Display Type	Ingress Protection	Measuring Type	Mounting Type	Termination Style	Type	Number of Characters Per Row [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Characters - Height [custom]	Display Characters - Height [custom]	Measuring Range [Min]	Measuring Range [Max]	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]	Output Type	Measuring Range

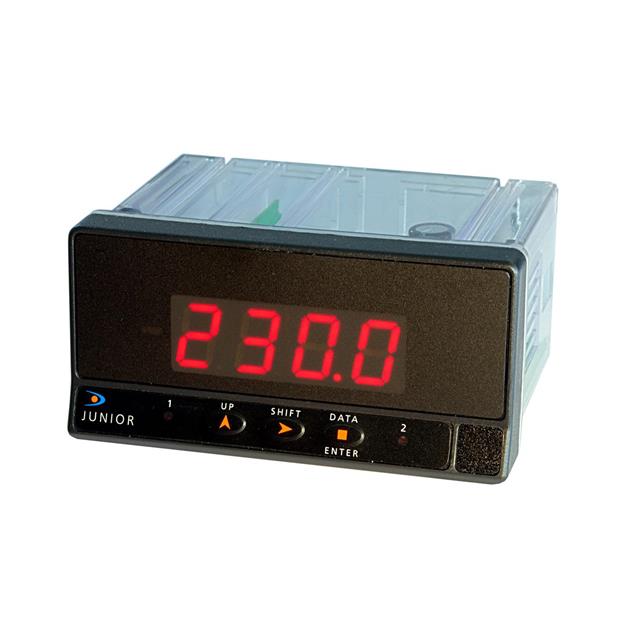

DITEL JR-P	-10 °C	60 °C	Excitation Supply	11 VDC 20 VAC	265 VAC 265 VDC	Multiple	LED Red Characters	IP65 - Dust Tight Water Resistant	Process Resistance Thermocouple	Panel Mount	Connector	Multifunction Meter	4	45 mm	92 mm	14 mm	0.551 in
DITEL MICRA-M	-10 °C	60 °C		85 VAC/DC 100 VDC	265 VAC 300 VDC		LED - Tri-Color Bar Graph	IP65 - Dust Tight Water Resistant	RTD Thermocouple	Panel Mount	Connector	Temperature Meter		45 mm	92 mm	14 mm	0.551 in	-150 °C	1300 °C	5
DITEL MICRA-D	-10 °C	60 °C		85 VAC/DC 100 VDC	265 VAC 300 VDC		LED - Tri-Color Bar Graph	IP65 - Dust Tight Water Resistant	Frequency	Panel Mount	Connector	Frequency Meter		45 mm	92 mm	14 mm	0.551 in	0 Hz	20 kHz	5
DITEL PICA-E	-10 °C	60 °C		85 VAC/DC 100 VDC	265 VAC 300 VDC		LCD - Red Characters	IP65 - Dust Tight Water Resistant	Current Voltage	Panel Mount	Connector	Ammeter Voltmeter	4	22 mm	45 mm			1 A 100 VAC/VDC	5 A 600 VAC/VDC		10 mm	0.394 in

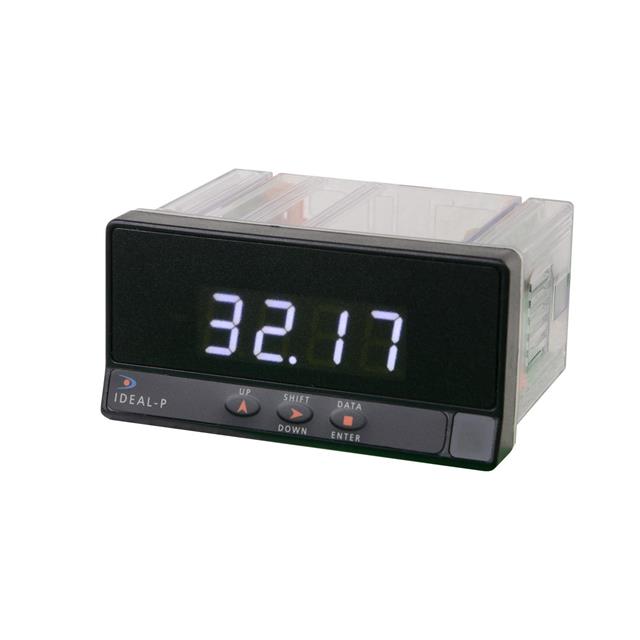

DITEL IDEAL-P			Excitation Supply	20 VAC	265 VAC		LED White Characters		Process RTD Thermocouple	Panel Mount	Connector	Process Temperature Meter	4			14 mm	0.551 in	-200 V -150 °C -20 mA	20 mA 200 V 1300 °C				Relay
DITEL JR20-P	-10 °C	60 °C	Excitation Supply	11 VDC 20 VAC	265 VAC 265 VDC	Multiple	LED Red Characters	IP65 - Dust Tight Water Resistant	Process Resistance Thermocouple	Panel Mount	Connector	Multifunction Meter	4	45 mm	92 mm						20 mm	0.787 "	Relay (2)

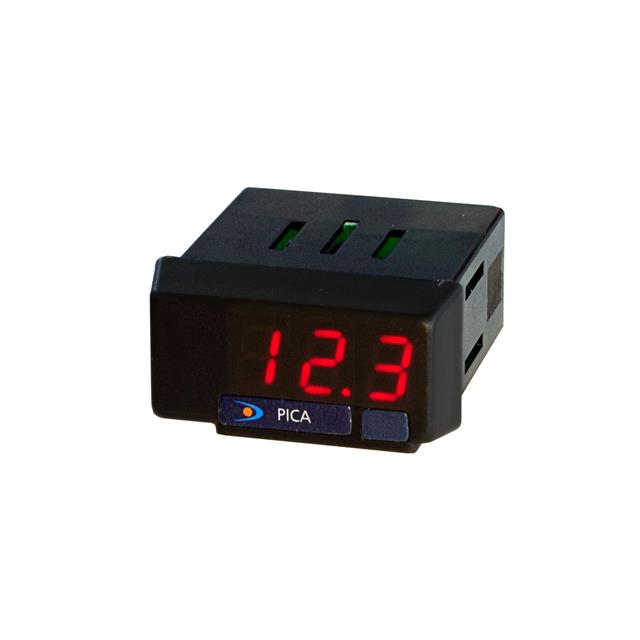

DITEL PICA40-LP	-10 °C	60 °C					LCD - Red Characters	IP65 - Dust Tight Water Resistant	Current	Panel Mount	Connector	Ammeter	4	22 mm	45 mm			4 mA	20 mA		10 mm	0.394 in

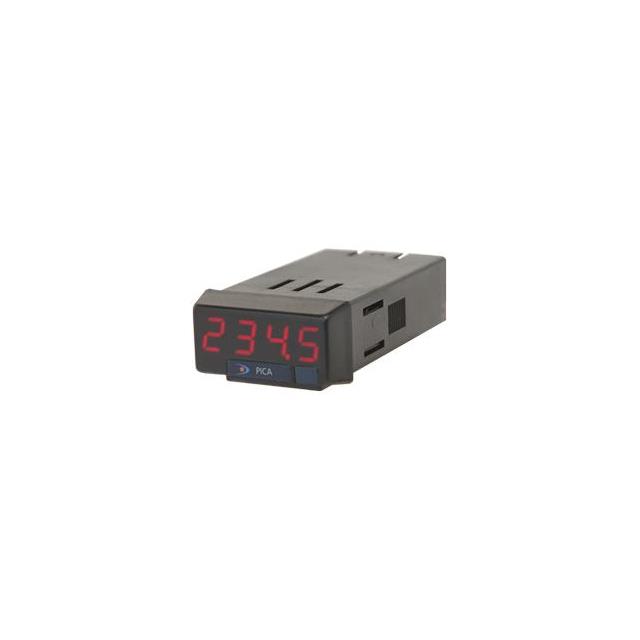

DITEL PICA-P	-10 °C	60 °C		85 VAC/DC 100 VDC	265 VAC 300 VDC		LCD - Red Characters	IP65 - Dust Tight Water Resistant	Current Process Voltage	Panel Mount	Connector	Multifunction Meter	4	22 mm	45 mm						10 mm	0.394 in		20 mA 20 mV 200 VDC
